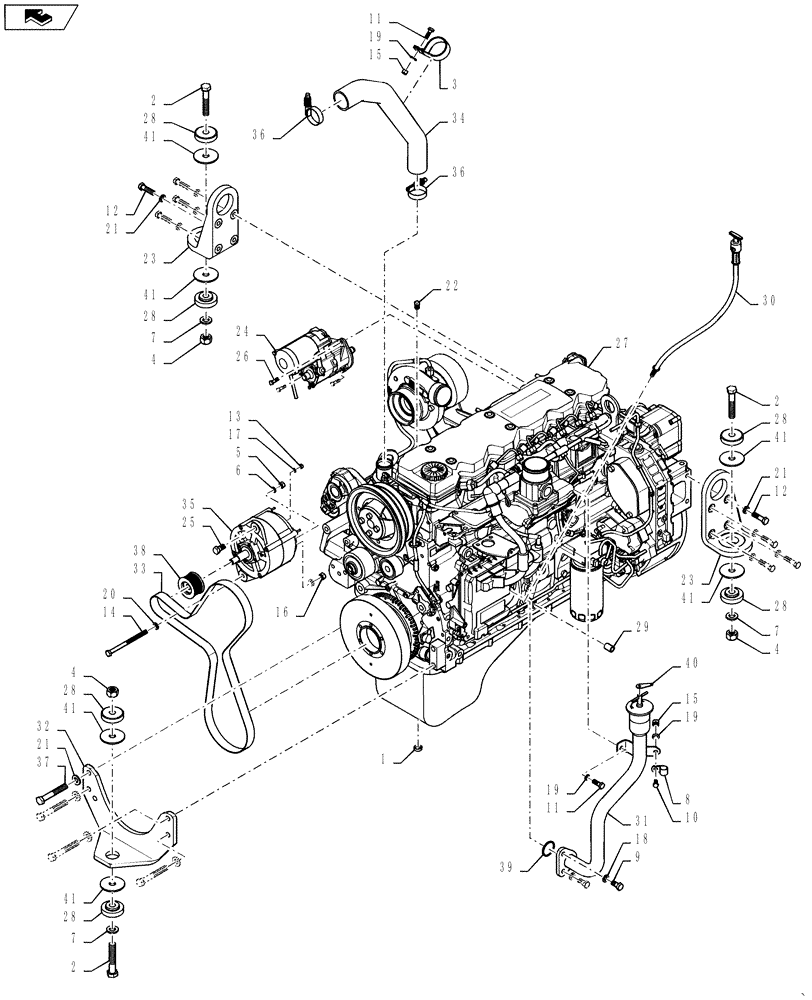

Запчасти Case 1150K (02-44) - NEF ENGINE INSTALLATION (02) - ENGINE

1

41-1014

PLUG,Cup, 7/8"

1шт.

2

106-91056

LOCK BOLT,Locking, 5/8"-11 x 3 1/2", G5

3шт.

3

R57155

CLAMP

1шт.

4

425-1010

NUT,5/8"-11, G5

3шт.

5

425-107

NUT,7/16"-14, G5

1шт.

6

492-11044

LOCK WASHER,7/16"

1шт.

7

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

3шт.

8

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

9

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.

10

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

11

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

12

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

8шт.

13

824-1404

NUT,M4, Cl 5

1шт.

14

827-10150

BOLT,Hex, M10 x 1.5 x 150mm, Cl 10.9

1шт.

15

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

16

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

17

892-11004

LOCK WASHER,M4

1шт.

18

892-11012

LOCK WASHER,M12

2шт.

19

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

20

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

21

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

12шт.

22

80775

DRAIN PLUG,1/4" - 18 NPT

1шт.

23

8602302

ENGINE MOUNT

Flywheel Housing

2шт.

24

8605784

STARTING MOTOR

1шт.

25

9790143

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

1шт.

26

R54620

BOLT,Hex, Flange, M10 x 35mm CL 10.9

3шт.

27

87455825

ENGINE

6.7L, 6 Cyl, 4 Valve Electronic, TAA, 97KW@2200 Common Rail Tier 3

1шт.

28

R49921

RUBBER MOUNTING

6шт.

29

87036415

SPACER,9.25mm ID x 13.72 OD x 19.05mm L

1шт.

30

87324779

DIPSTICK

1шт.

31

87373261

TUBE,357, 149.9 mm L

Engine Oil Fill

1шт.

32

87432314

ENGINE MOUNT

Front

1шт.

33

87561763

V-BELT,3.56 mm W x 1778.00 mm L, 8 Ribs

1шт.

34

87571277

HOSE

Engine to Radiator Inlet

1шт.

35

1964860C1

ALTERNATOR,24V, 60A, W/O Pulley

1шт.

36

254026A1

HOSE CLAMP,44.45mm - 66.67mm

2шт.

37

A171690

BOLT

4шт.

38

A189616

PULLEY

Alternator

1шт.

39

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

1шт.

40

L115504

CAP

Oil Filler

1шт.

41

R49597

WASHER,17.5mm ID x 70mm OD x 4.5mm Thk

5шт.
