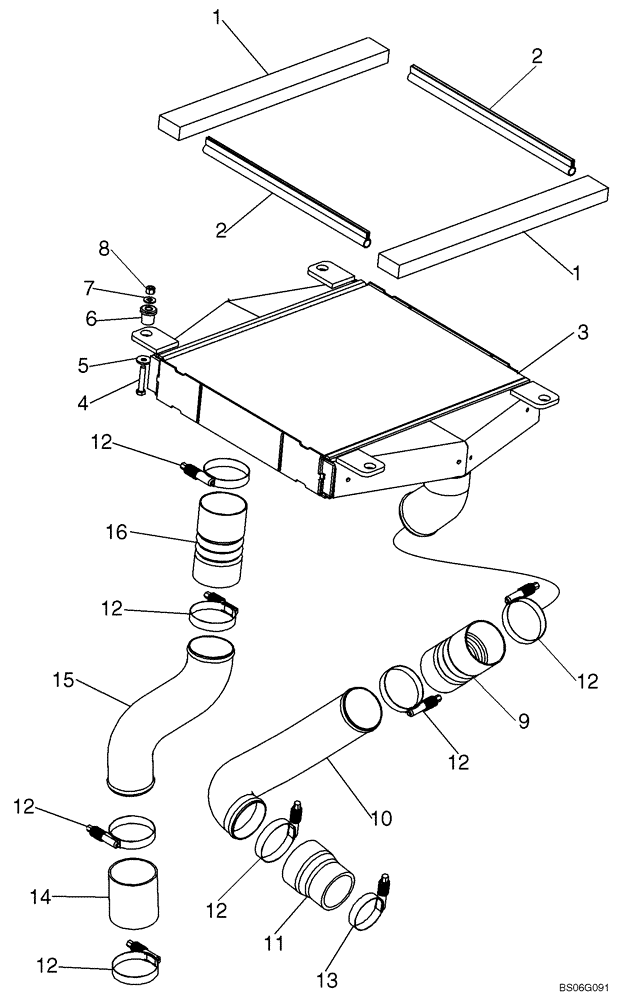

Запчасти Case 1150K (02-40) - TURBOCHARGER SYSTEM (02) - ENGINE

REF

INSTRUCTION

PARTS ON THIS PAGE ARE NOT INCLUDED IN THE ENGINE ASSEMBLY, PURCHASE SEPARATELY

1шт.

1

87391161

PAD

Non-Recirculating; 483 x 50.8 x 25.4; Adhesive Back; Not Included In the Engine Assembly, Purchase Separately

2шт.

2

87391158

SEAL

540 mm Long; Cut From 235330A1 25 Foot Long Bulk Seal; Not Included In the Engine Assembly, Purchase Separately

2шт.

3

87323206

COOLER

Charge Air; Not Included In the Engine Assembly, Purchase Separately

1шт.

4

827-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9

Not Included in the Engine Assembly, Purchase Separately

4шт.

5

496-41034

WASHER,.344" x 1" x .098", HDN

Not Included In the Engine Assembly, Purchase Separately

4шт.

6

434177A1

ISOLATOR

Not Included In the Engine Assembly, Purchase Separately

4шт.

7

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

Not Included In the Engine Assembly, Purchase Separately

4шт.

8

832-10408

NUT,M8 x 1.25, Cl 8.8

Not Included In the Engine Assembly/ Purchase Separately

4шт.

9

87340284

INTAKE AIR HOSE,76.20mm ID x 129mm L

Charge Air; Not Included In the Engine Assembly, Purchase Separately

1шт.

10

87347773

AIR INTAKE TUBE,76.20 mm OD

Turbo Out; Not Included In the Engine Assembly, Purchase Separately

1шт.

11

82039386

INTAKE AIR HOSE,63.50 mm ID, 76.00 mm ID x 92.00 mm, SAE J20R4 CLASS C

Manifold Inlet; Not Included In the Engine Assembly, Purchase Separately

1шт.

12

L115549

CLAMP,69.85mm - 92.08mm

Not Included In the Engine Assembly, Purchase Separately

7шт.

13

L115548

CLAMP,57.15mm - 79.38mm

Not Included In the Engine Assembly, Purchase Separately

1шт.

14

87572378

HOSE

Air Intake; Not Included In the Engine Assembly, Purchase Separately

1шт.

15

87347774

AIR INTAKE TUBE,76.20 mm OD

Turbo In; Not Included In the Engine Assembly, Purchase Separately

1шт.

16

87340015

INTAKE AIR HOSE,76.20mm ID x 140mm L

Not Included In the Engine Assembly, Purchase Separately

1шт.
