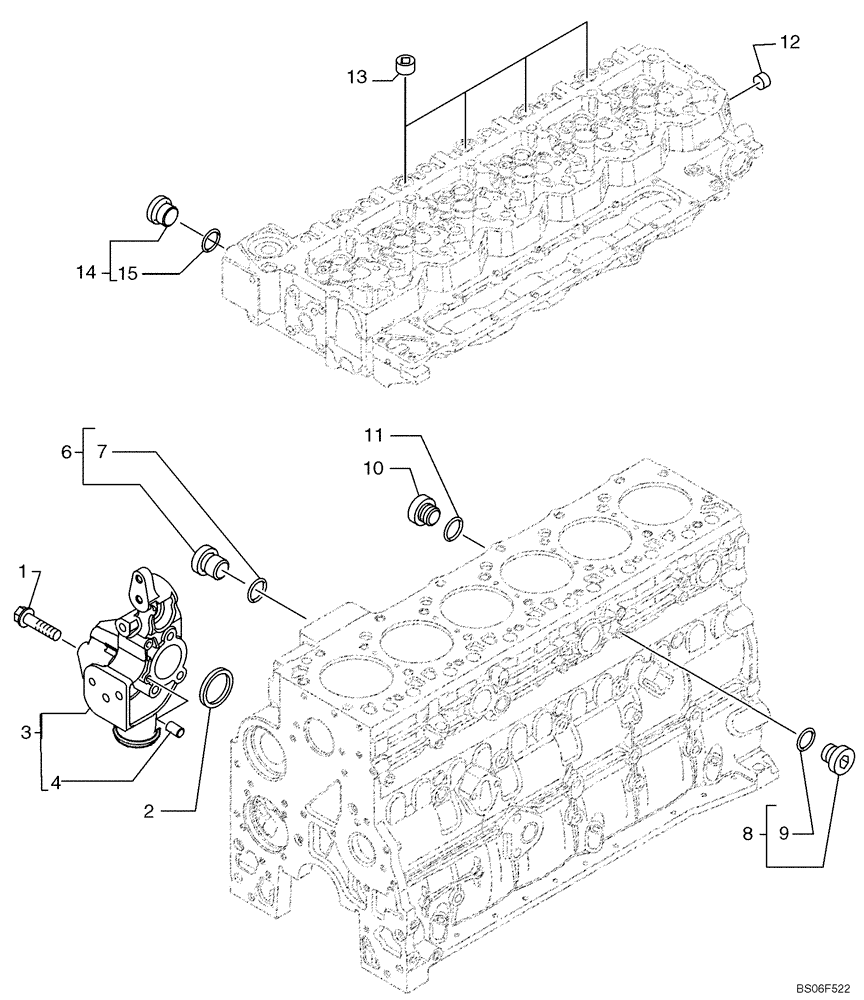

Запчасти Case 1150K (02-37) - COOLING SYSTEM - ENGINE (02) - ENGINE

1

2852286

BOLT,Flng, M10 x 1.5 x 130mm

M10 x 130

3шт.

2

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

1шт.

3

2855443

FITTING

Support; Water Inlet Connector; Incl. Ref 4

1шт.

4

4895576

DOWEL

2шт.

6

2852496

PLUG,M18 x 1.5

Incl. 7

1шт.

7

4895393

O-RING,2.2mm Thk x 15.3mm ID

1шт.

8

4895623

HEX SOCKET PLUG,M16 x 1.5

Incl. 9

1шт.

9

NSS

NOT SOLD SEPARAT

O-Ring Seal; 13.3 ID x 2.2

1шт.

10

2852496

PLUG,M18 x 1.5

2шт.

11

4899824

SEALING WASHER,18.2mm ID x 21.9mm OD x 1.5mm Thk

2шт.

12

4895079

PIPE PLUG,3/4"-14

Alternate Part to 2854866

1шт.

12

2854866

HEX SOCKET PLUG,3/4"-14 NPTF

Alternate part to 4895079

1шт.

13

4895078

PIPE PLUG,1/2"-14

4шт.

14

4895080

HEX SOCKET PLUG,M22 x 1.5

Incl. 15

1шт.

15

2854072

SEALING RING,Square, 5.16mm Thk x 50.17mm ID

1шт.
