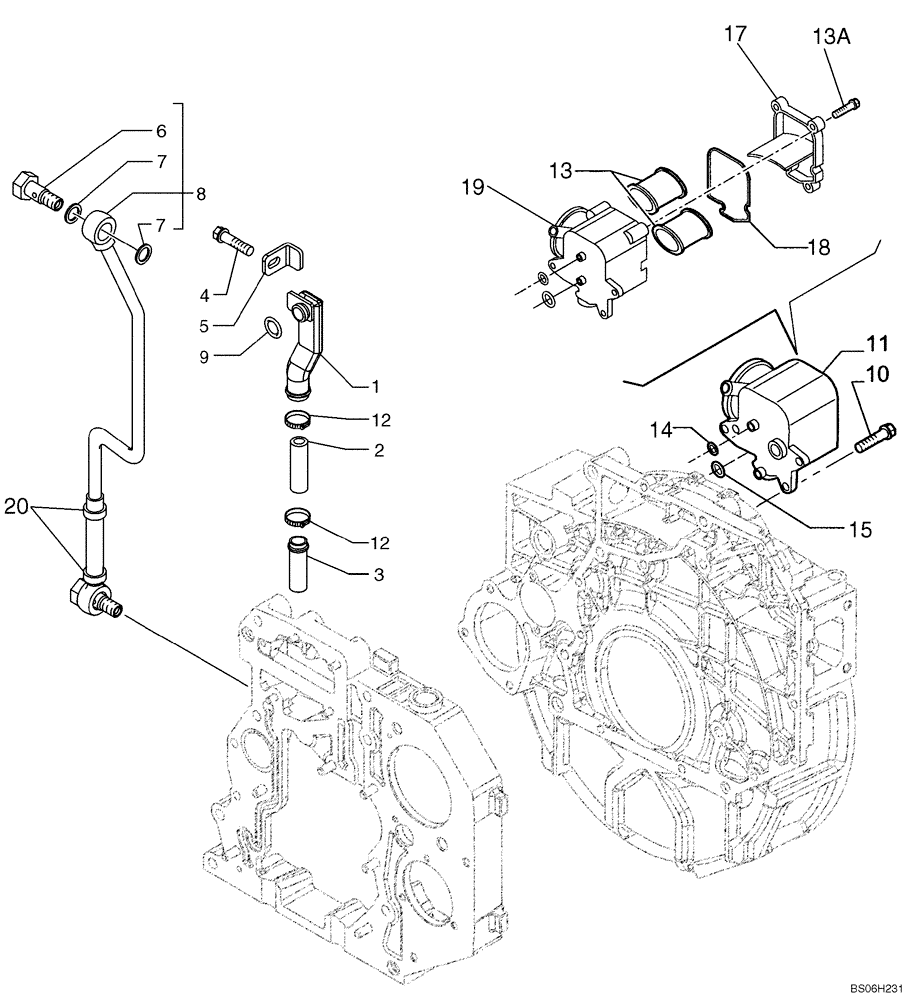

Запчасти Case 1150K (02-36) - BREATHER - ENGINE (02) - ENGINE

1

4897534

TUBE

1шт.

2

4897546

RUBBER SLEEVE

IN ALTERNATIVE

1шт.

2

2854521

HOSE

In Alternative

1шт.

3

4897547

TUBE

1шт.

4

4897537

SCREW

Flange, M6X1X10

1шт.

5

4897536

BRACKET

1шт.

6

2852772

BANJO BOLT

M12X1.5X30

2шт.

7

4899926

SEALING WASHER,11.8mm ID x 18.0mm OD x 1.5mm Thk

Seal, 11.8 ID

4шт.

8

4899219

TUBE

ASSY; Incl. Ref 6, 7, 20

1шт.

9

14457581

O-RING,0.799" ID x 0.103" Width

Replaces 14457581

1шт.

10

4899092

SCREW,Hex Flg, M6 x 1 x 25

3шт.

11

4892871

BREATHER

ASSY; Incl. Ref 13 - 19; Remainder of Components Not Serviced Separately

1шт.

12

4893234

HOSE CLAMP

IN ALTERNATIVE

2шт.

12

2831016

HOSE CLAMP

IN ALTERNATIVE

2шт.

13

2830592

AIR FILTER

2шт.

13a

2830301

SELF-TAP SCREW

Self Tapping

6шт.

14

4898372

O-RING,13.11mm ID x 2.62mm Width

1шт.

15

2830304

O-RING

1шт.

17

NSS

NOT SOLD SEPARAT

Protective Cover; Order 4892871 Ref 11

1шт.

18

2830303

GASKET

Breather Gasket

1шт.

19

NSS

NOT SOLD SEPARAT

Breather Housing

1шт.

20

4899242

CLAMP

2шт.
