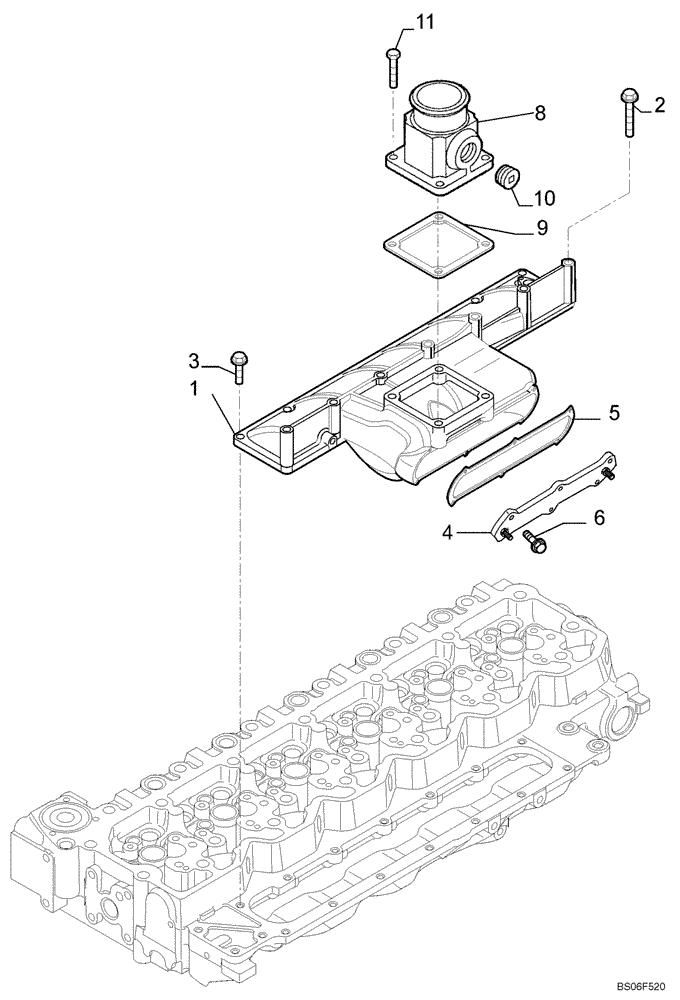

Запчасти Case 1150K (02-28) - INTAKE MANIFOLD (02) - ENGINE

1

2854534

INLET MANIFOLD

Air Intake

1шт.

2

4895432

SCREW,M8 x 1.25 x 70mm

Flange, M8 x 70

3шт.

3

4899039

BOLT,Flng, M8 x 1.25 x 25mm, Cl 10.9

7шт.

4

2855345

HEATER

Grid Heater

1шт.

5

2854701

GASKET,0.8mm Thk

1шт.

6

2852101

FLANGE BOLT,Hex, M6 x 16mm

6шт.

8

2830891

AIR INTAKE TUBE

1шт.

9

4899921

GASKET,1.2mm Thk

1шт.

10

4895079

PIPE PLUG,3/4"-14

1шт.

11

4899039

BOLT,Flng, M8 x 1.25 x 25mm, Cl 10.9

4шт.
