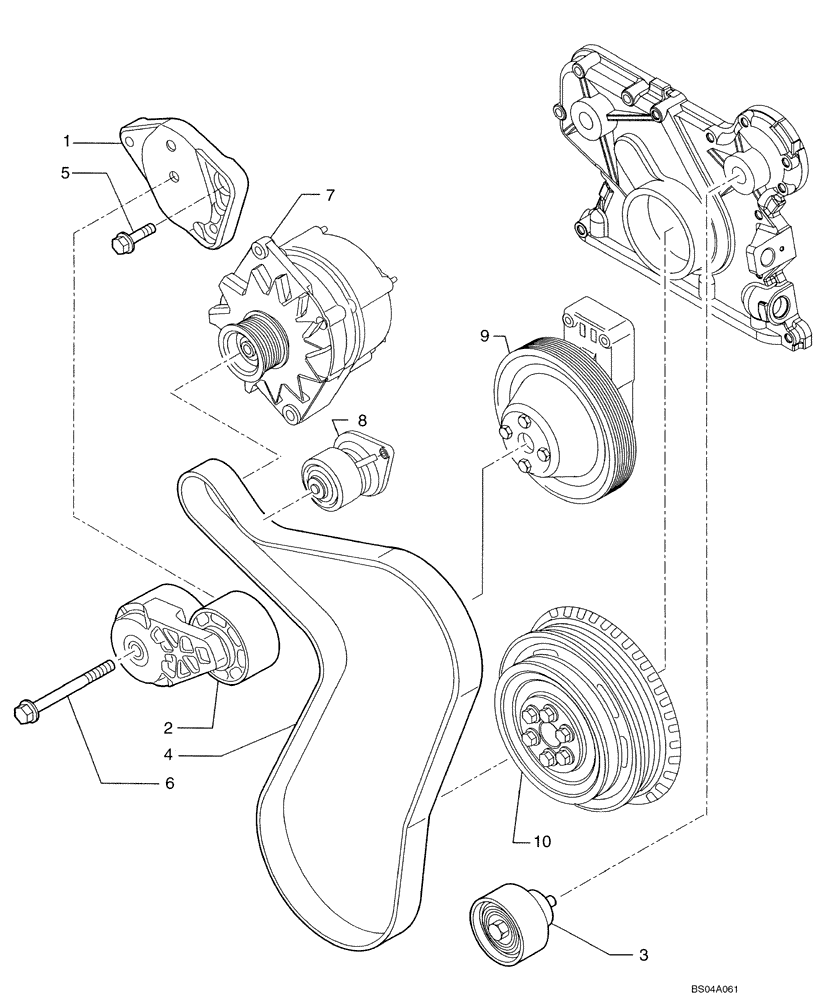

Запчасти Case 1150K (02-16) - WATER PUMP - CONTROL (02) - ENGINE

1

2853230

BRACKET

Support Belt Tensioner

1шт.

2

2853206

BELT TENSIONER

Water Pump

1шт.

3

2852245

PULLEY,65mm OD

1шт.

4

REF

INSTRUCTION

BELT; See Figure 02-01

1шт.

5

2852247

BOLT,Hex, M8 x 1.25 x 30mm

Flange, M8 x 30

2шт.

6

2852325

SCREW

Flange, M10 x 80

1шт.

7

REF

INSTRUCTION

ALTERNATOR; See Figure 04-02, 04-03

1шт.

8

REF

INSTRUCTION

WATER PUMP; See Figure 02-15

1шт.

9

REF

INSTRUCTION

FAN DRIVE; See Figure 02-38

1шт.

10

REF

INSTRUCTION

CRANKSHAFT PULLEY; See Figure 02-32

1шт.
