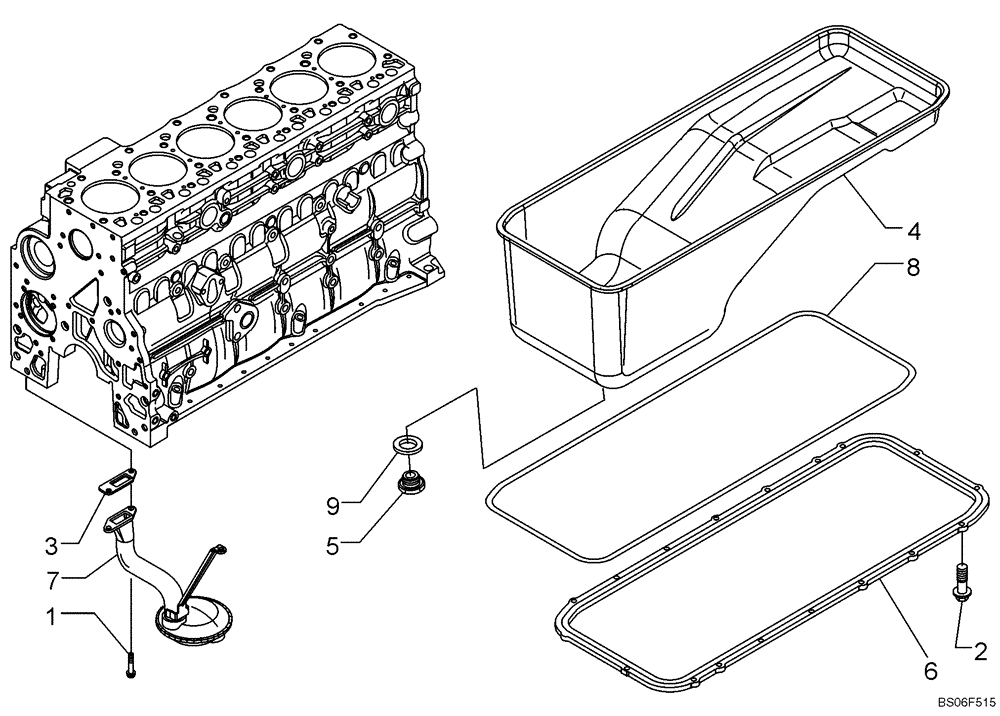

Запчасти Case 1150K (02-14) - OIL PUMP, PAN (02) - ENGINE

1

2852234

FLANGE BOLT,Hex, M8 x 1.25 x 20mm

Alternate Part To 18138424

2шт.

1

18138424

SCREW,Hex Flg, M8 x 1.25 x 20mm

Alternate Part to 2852234

2шт.

2

4899091

SCREW,Hex Flange Cap, M8 x 1.25 x 40.00mm

18шт.

3

4898301

GASKET,0.42mm Thk

Oil Suction

1шт.

4

2852308

ENGINE OIL PAN

1шт.

5

4894139

PLUG,Hex Soc, M22 x 1.5

1шт.

6

4897858

SPACER

Adapter

1шт.

7

2852310

FILTER STRAINER

1шт.

8

4897861

OIL PAN GASKET SET,17.3mm Thk

1шт.

9

2852978

O-RING,0.103" Thk x 0.924" ID, -119, Cl 7, 75 Duro

Replaces 2853728

1шт.
