Запчасти Case 1150K (02-13) - OIL FILTER AND COOLER (02) - ENGINE

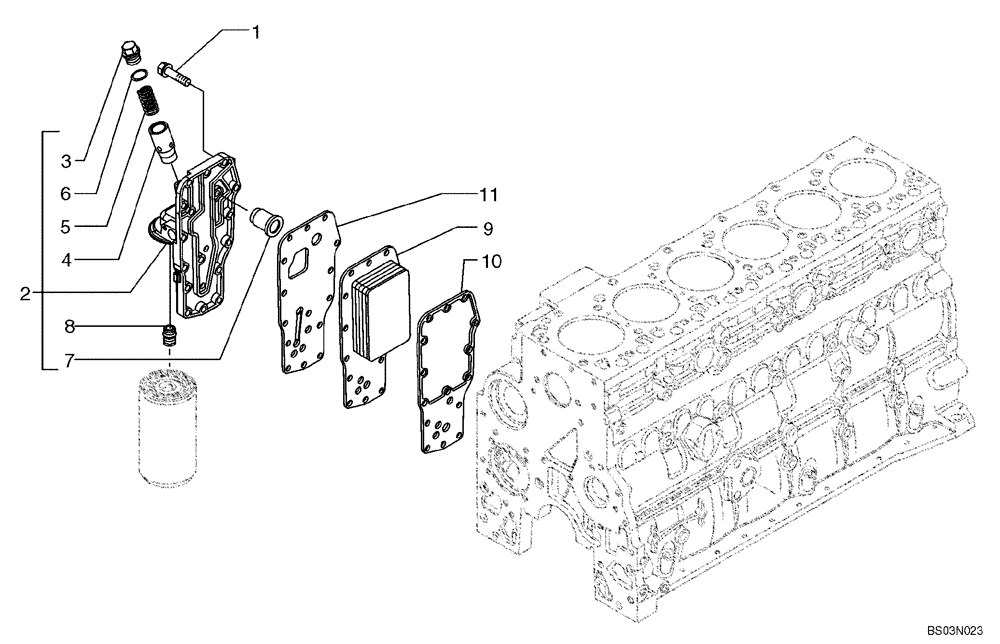

Схема запчастей Case 1150K - (02-13) - OIL FILTER AND COOLER (02) - ENGINE
8
1
10
11
9
6
2
5
7
4
3

Артикул

Название

Примечание

Количество

1

4899019

SCREW,Hex Flg, M8 x 1.25 x 35

15шт.

2

2853780

FILTER HEAD

Housing Assembly; Incl. Ref 3 - 8

1шт.

3

2853781

PLUG,Hex, M22 x 1.5 ORB

Socket Head

1шт.

4

4896404

PLUNGER,10mm ID, 12mm OD, 15.44mm ID, 18.26mm OD

Plug Pressure Reg.

1шт.

5

4895045

SPRING,Compression, 14.7mm OD x 66mm L

1шт.

6

4899035

O-RING,2.62mm Thk x 18.39mm ID

1шт.

7

J936365

VALVE PRESSURE RELIE

1шт.

8

4893391

ADAPTER,M24 x 2 x M27 x 2

1шт.

9

2853604

OIL COOLER

Core

1шт.

10

2830559

GASKET,0.5mm Thk

Oil Cooler Core

1шт.

11

4896409

GASKET,1.55mm Thk

1шт.

Выбрано товаров: 11
