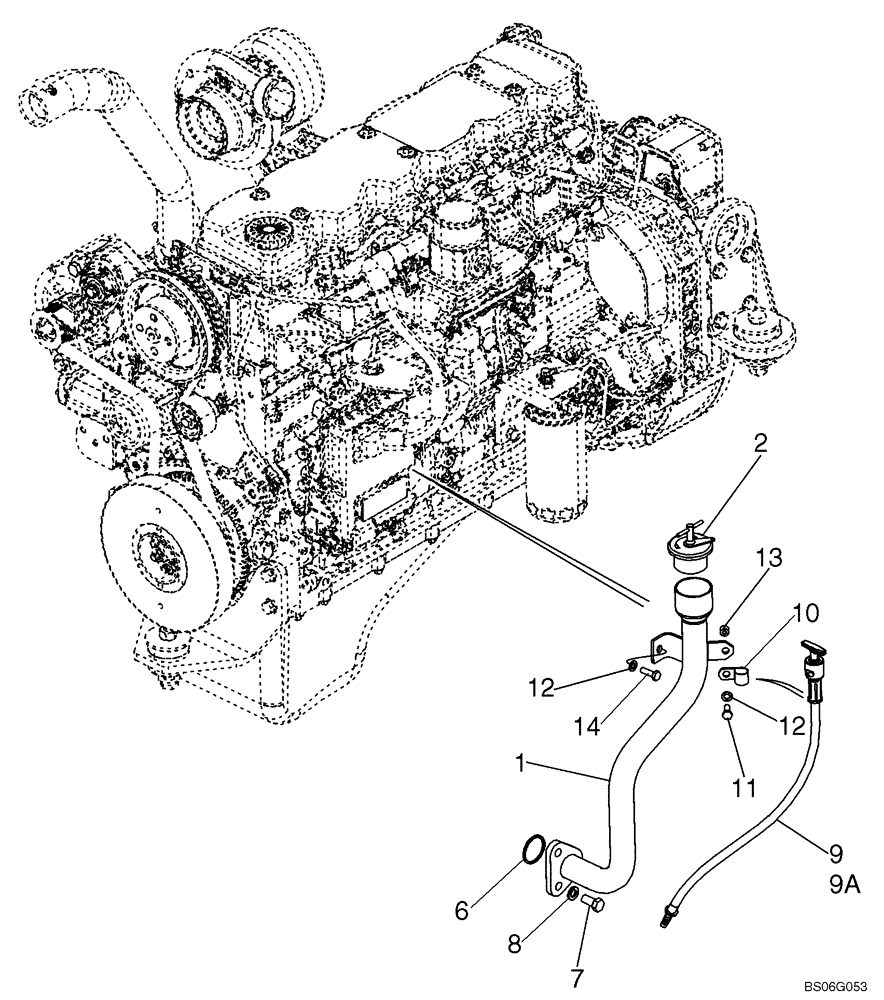

Запчасти Case 1150K (02-09) - ENGINE, DIPSTICK (02) - ENGINE

PARTS ON THIS PAGE ARE NOT INCLUDED IN THE ENGINE ASSEMBLY, PURCHASE SEPARATELY

1шт.

1

87373261

TUBE,357, 149.9 mm L

Oil Fill; Not Included In the Engine Assembly, Purchase Separately

1шт.

2

L115504

CAP

Not Included In the Engine Assembly, Purchase Separately

1шт.

6

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

Oil Fill Tube; Not Included In the Engine Assembly, Purchase Separately

1шт.

7

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

Not included in the Engine Assembly, Purchase Separately

2шт.

8

892-11012

LOCK WASHER,M12

Not Included In the Engine Assembly, Purchase Separately

2шт.

9

87324777

DIPSTICK

Engine Oil; Not Included In the Engine Assembly, Purchase Separately

1шт.

9a

87324776

TUBE

Dipstick; Use With 345-199 1 ml Loctite 243 Adhesive Thread; Not Included In the Engine Assembly, Purchase Separately

1шт.

10

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

Not Included In the Engine Assembly, Purchase Separately

1шт.

11

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

Not Included In the Engine Assembly, Purchase Separately

1шт.

12

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

Not Included In the Engine Assembly, Purchase Separately

2шт.

13

832-10408

NUT,M8 x 1.25, Cl 8.8

Not Included In the Engine Assembly/ Purchase Separately

1шт.

14

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

Not Included In the Engine Assembly, Purchase Separately

1шт.
