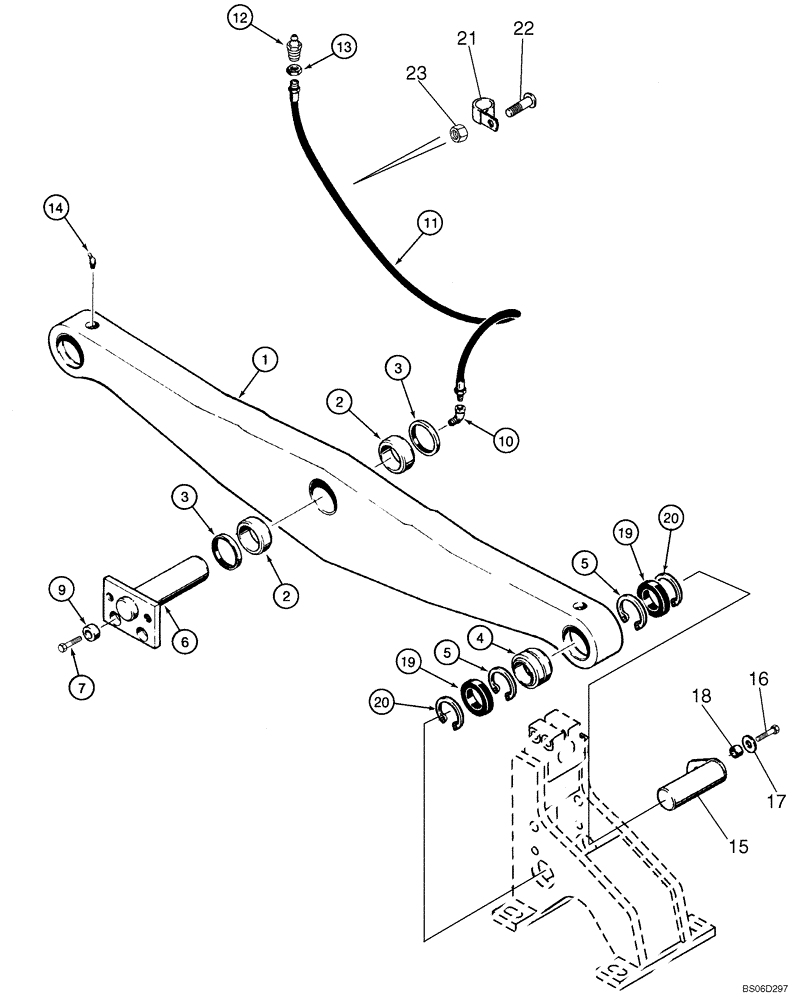

Запчасти Case 1150K (05-11) - SUSPENSION SYSTEM - EQUALIZER BEAM (11) - TRACKS/STEERING

87371610

BEAM ASSY.

Equalizer, 70 Gauge, Standard Dozer, Extended Long Track (XLT) Models, Incl. 1 - 5, 19, 20

1шт.

87371624

BEAM ASSY.

Equalizer, 78 Gauge Wide Track (WT) or Low Ground Pressure (LGP) Models, Incl. 1 - 5, 19, 20, Not Illustrated

1шт.

1

NSS

NOT SOLD SEPARAT

Beam, Equalizer

1шт.

2

D46403

BUSHING,63.75mm ID x 76.2mm OD x 28.44mm L

Center

2шт.

3

R39286

SEAL,63.5mm ID x 76.33mm OD x 7.92mm Thk

Use With Ref 3A, 3B

2шт.

3a

345-79

ADHESIVE

Loctite, No. 609, 1 ml

1шт.

3b

345-62

SEALANT

No. 747, 1 ml

1шт.

4

87381270

SPHERICAL BEARING,60mm ID x 90mm OD x 44mm W

2шт.

5

11062476

SNAP RING,M90, Int

4шт.

6

87311452

PIN,63.5mm OD x 213mm L

Center

1шт.

7

87538548

SCREW

Flange Head Locking Bolt, 3/4 x 1-3/4

2шт.

9

T31129

BUSHING,19.66mm ID x 31.75mm OD x 17.48mm L

2шт.

10

221-411

ELBOW,90 Degree, 1/8"-27, NPT

1шт.

11

R45862

HOSE,3.17mm ID x 1041.4mm L, SAE 100R7

1041 mm (41 in), Grease

1шт.

12

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

13

F53473

LOCK NUT,1/8-27 NPSM

1/8 PT

1шт.

14

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

2шт.

15

87327604

PIN

Outer

2шт.

16

87018375

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 8, Full Thd

2шт.

17

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

2шт.

18

87328094

BUSHING

2шт.

19

76043711

SEAL,60mm ID x 112.3mm OD x 11.1mm Thk

Seal; Included In Equalizer Beam Assy

4шт.

20

11075676

SNAP RING,M115, Int

Snap Ring; Included In Equalizer Beam Assy

4шт.

21

515-2379

CLAMP,5/16", Insul, 3/8" Bolt

P-Type

1шт.

22

811-10035

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 35mm, Cl 8.8

Round Head

1шт.

23

832-10410

NUT,M10 x 1.5, Cl 8

1шт.
