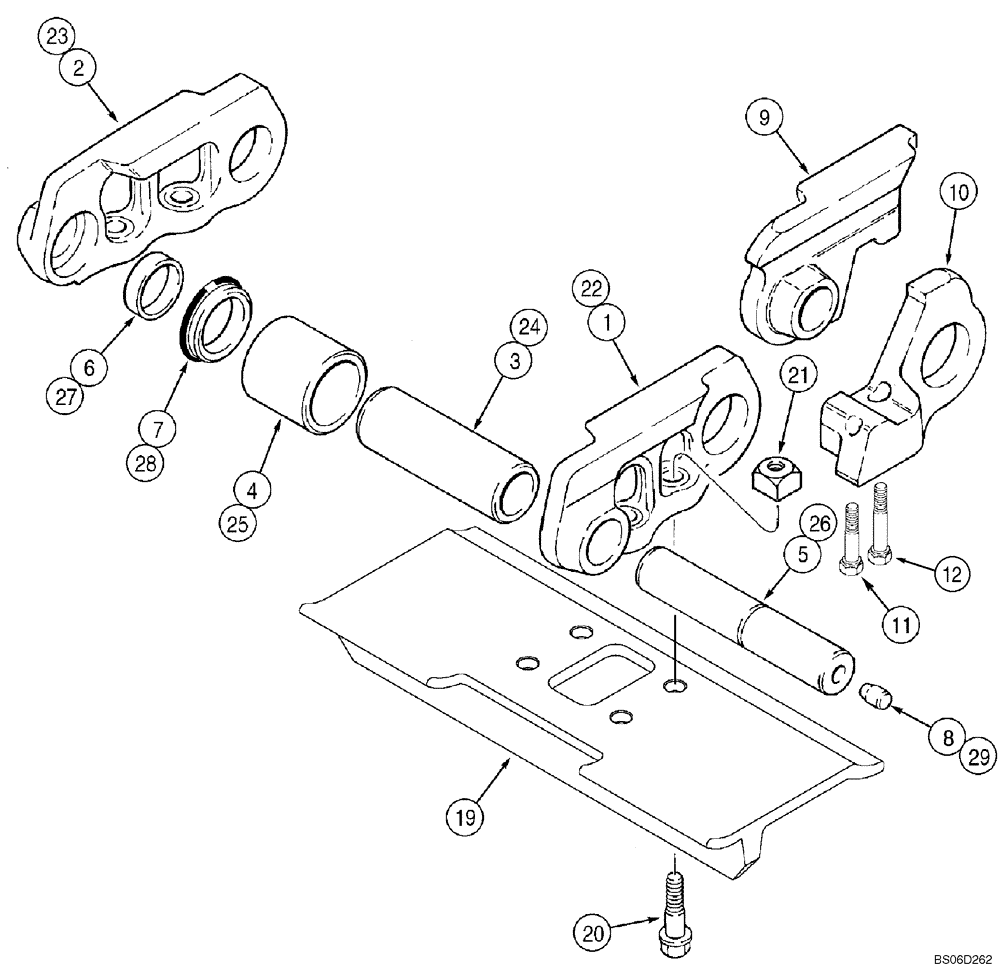

Запчасти Case 1150K (05-10) - TRACK CHAIN, EXTENDED LIFE (CELT) OPEN GROUSER (11) - TRACKS/STEERING

1

47749266

TRACK CHAIN

Chain Assy, 43 Link CELT

2шт.

1

365492A1

LINK

Right Hand

42шт.

2

365493A1

LINK

Left Hand

42шт.

3

R51191

BUSHING,36.9mm ID x 58.77mm OD x 128.8mm L

59 mm (2-5/16 in) OD

43шт.

4

189275A1

BUSHING,59.38mm ID x 79.38mm OD x 74mm L

Rotating

43шт.

5

R51192

PIN,36.58mm OD x 206.5mm L

43шт.

6

R51193

SPACER

86шт.

7

R51194

SEAL,42.1mm ID x 59mm OD x 12.5mm Thk

86шт.

8

R50441

PLUG

43шт.

8

365527A1

LINK ASSY.

Master Link, Right Hand, Incl. 9, 10

1шт.

9

NSS

NOT SOLD SEPARAT

Link, Fits Over Track Pin on Outside of Regular Track Link

1шт.

10

NSS

NOT SOLD SEPARAT

Link, Fits Over Bushing on Inside of Regular Track Link

1шт.

11

135778A1

BOLT,Spher Hex, 5/8" - 18 x 82.50mm

5/8 NF x 3-1/4

2шт.

12

135779A1

BOLT,Spher Hex, 5/8" - 18 x 92mm

5/8 NF x 3-5/8

2шт.

12

365526A1

LINK ASSY.

Master Link, Left Hand, Incl. 14, 15; Not Illustrated

1шт.

14

NSS

NOT SOLD SEPARAT

Link, Fits Over Track Pin on Outside of Regular Track Link, Not Illustrated

1шт.

15

NSS

NOT SOLD SEPARAT

Link, Fits Over Bushing on Inside of Regular Track Link, Not Illustrated

1шт.

19

384430A1

TRACK SHOE

Master, 508 mm (20 in) 1 Bar Open

2шт.

19

364616A1

SHOE

508 mm (20 in) 1 Bar Open

84шт.

19

87456228

TRACK SHOE

Master, 610 mm (24 in) 1 Bar Open

2шт.

19

87456251

TRACK SHOE

610 mm (24 in) 1 Bar Open

84шт.

19

87456229

TRACK SHOE

Master, 762 mm (30 in) 1 Bar Open

2шт.

19

87456253

TRACK SHOE

762 mm (30 in) 1 Bar Open

84шт.

19

384435A1

TRACK SHOE

Master, 864 mm (34 in) 1 Bar Open

2шт.

19

364620A1

SHOE

864 mm (34 in) 1 Bar Open

84шт.

20

295318A1

BOLT,Hex, 5/8" - 18 x 2 1/8"

5/8 NF x 2-1/8, Special

336шт.

21

R25688

SQUARE NUT

Square, 5/8 NF

336шт.

21a

345-140

SEALANT

No. 847, 1 Pint, For Link Pin Bores, Not Illustrated

2шт.

22

CHAIN UNIT KIT

1шт.

22

382011A1

REPAIR KIT

Kit, Repair CELT, Service Track Chain, 1 Unit; Includes Instructions, Incl. 22 - 29

1шт.

22

383797A1

LINK ASSY.

Incl. 22 - 25

1шт.

22

365492A1

LINK

Right Hand

1шт.

23

365493A1

LINK

Left Hand

1шт.

24

R51191

BUSHING,36.9mm ID x 58.77mm OD x 128.8mm L

59 mm (2-5/16 in) OD

1шт.

25

189275A1

BUSHING,59.38mm ID x 79.38mm OD x 74mm L

1шт.

26

R51192

PIN,36.58mm OD x 206.5mm L

2шт.

27

R51193

SPACER

4шт.

28

R51194

SEAL,42.1mm ID x 59mm OD x 12.5mm Thk

4шт.

29

R50441

PLUG

2шт.
