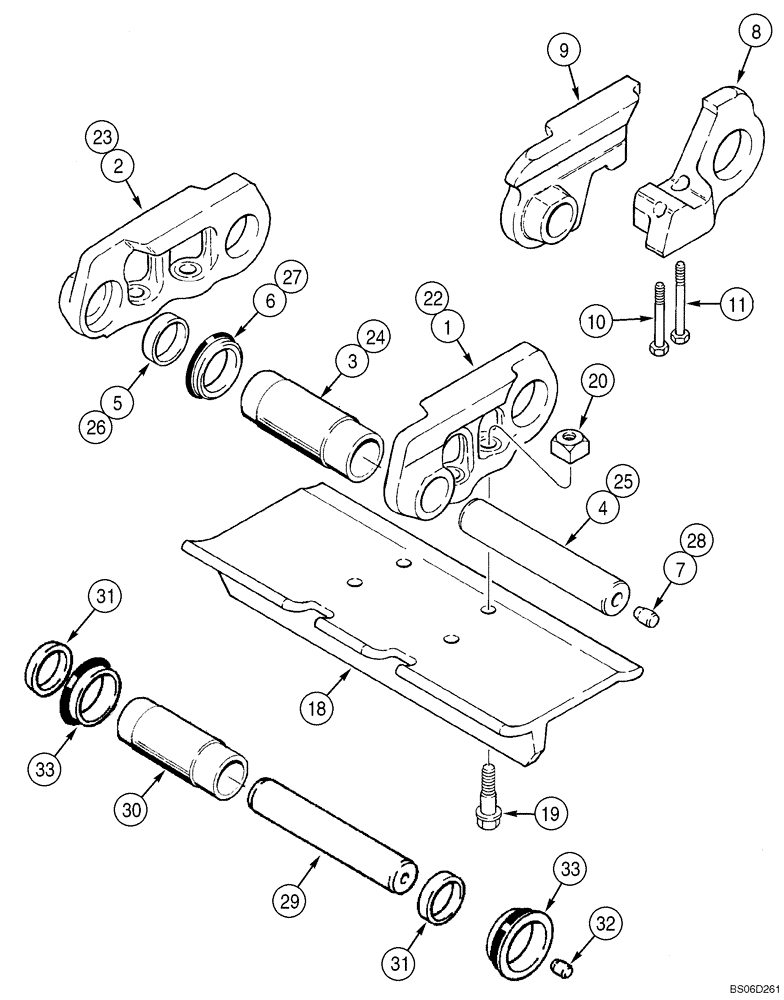

Запчасти Case 1150K (05-09) - TRACK CHAIN, CASE LUBRICATED (CLT) CLOSED GROUSER (11) - TRACKS/STEERING

87434040, CHAIN ASSY, 43 Link Case Lubricated Track (CLT), Incl. 1 - 14, 34; Not Available As An Assembly, Order 87455530 Service Kit

2шт.

87455530

TRACK CHAIN,7367.22mm L

KIT, Service, Chain Assy, 43 Link CLT; Incl. (1) 87434040 Chain Assy, Ref 1 - 14, 34

1шт.

1

365492A1

LINK

Right Hand

42шт.

2

365493A1

LINK

Left Hand

42шт.

3

87434039

BUSHING,36.9mm ID x 62mm OD x 128.8mm L

43шт.

4

R51192

PIN,36.58mm OD x 206.5mm L

43шт.

5

R51193

SPACER

86шт.

6

R51194

SEAL,42.1mm ID x 59mm OD x 12.5mm Thk

86шт.

7

R50441

PLUG

43шт.

365527A1

LINK ASSY.

Master Link, Right Hand, Incl. 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

Link, Fits Over Track Pin on Outside of Regular Track Link

1шт.

9

NSS

NOT SOLD SEPARAT

Link, Fits Over Bushing on Inside of Regular Track Link

1шт.

10

135778A1

BOLT,Spher Hex, 5/8" - 18 x 82.50mm

5/8 NF x 3-1/4

2шт.

11

135779A1

BOLT,Spher Hex, 5/8" - 18 x 92mm

5/8 NF x 3-5/8

2шт.

365526A1

LINK ASSY.

Master Link, Left Hand, Incl. 13, 14; Not Illustrated

1шт.

13

NSS

NOT SOLD SEPARAT

Link, Fits Over Track Pin on Outside of Regular Track Link, Not Illustrated

1шт.

14

NSS

NOT SOLD SEPARAT

Link, Fits Over Bushing on Inside of Regular Track Link, Not Illustrated

1шт.

18

87455929

TRACK SHOE

Master, 508 mm (20 in) 1 Bar Closed

2шт.

18

178831A1

TRACK SHOE

508 mm (20 in) 1 Bar Closed

84шт.

18

87456230

TRACK SHOE

Master, 610 mm (24 in) 1 Bar Closed

2шт.

18

87456249

TRACK SHOE

610 mm (24 in) 1 Bar Closed

84шт.

18

87456231

TRACK SHOE

Master, 762 mm (30 in) 1 Bar Closed

2шт.

18

87456250

TRACK SHOE

762 mm (30 in) 1 Bar Closed

84шт.

18

87455932

TRACK SHOE

Master, 864 mm (34 in) 1 Bar Closed

2шт.

18

178834A1

TRACK SHOE

864 mm (34 in) 1 Bar Closed

84шт.

19

295318A1

BOLT,Hex, 5/8" - 18 x 2 1/8"

5/8 NF x 2-1/8, Special

336шт.

20

R25688

SQUARE NUT

Square, 5/8 NF

336шт.

CHAIN UNIT KIT

1шт.

87395772

KIT

Kit, One Joint Repair; Includes Instructions, Incl. 22 - 28

1шт.

87395769

LINK ASSY.

Incl. 22 - 24

1шт.

22

365492A1

LINK

Right Hand

1шт.

23

365493A1

LINK

Left Hand

1шт.

24

87434039

BUSHING,36.9mm ID x 62mm OD x 128.8mm L

1шт.

25

R51192

PIN,36.58mm OD x 206.5mm L

2шт.

26

R51193

SPACER

4шт.

27

R51194

SEAL,42.1mm ID x 59mm OD x 12.5mm Thk

4шт.

28

R50441

PLUG

2шт.

PIN AND BUSHING KIT

1шт.

SERVICES COMPLETE TRACK CHAIN FOR BOTH SIDES OF TRACTOR

1шт.

87395775

KIT

Pin and Bushing Kit, Includes Instructions, Incl. 29 - 34

1шт.

29

R51192

PIN,36.58mm OD x 206.5mm L

86шт.

30

87434039

BUSHING,36.9mm ID x 62mm OD x 128.8mm L

86шт.

31

R51193

SPACER

172шт.

32

R50441

PLUG

86шт.

33

R51194

SEAL,42.1mm ID x 59mm OD x 12.5mm Thk

172шт.

34

345-140

SEALANT

No. 847, 1 Pint, For Link Pin Bores, Not Illustrated

1шт.
