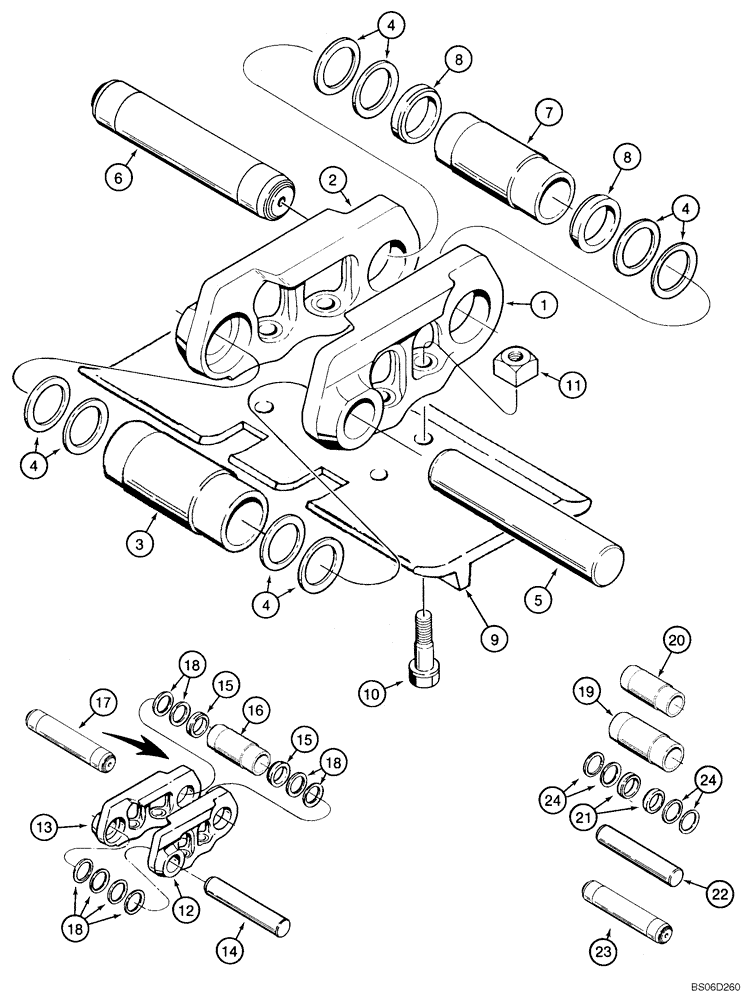

Запчасти Case 1150K (05-08) - TRACK CHAIN, SEALED (11) - TRACKS/STEERING

1

365492A1

LINK

Right Hand

43шт.

2

365493A1

LINK

Left Hand

43шт.

3

87310173

BUSHING

141.3 mm (5-9/16 in) Long

42шт.

4

R51201

BELLEVILLE WASHER,37.299mm ID x 56.7mm OD x 1.5mm Thk

172шт.

5

S108923

PIN

42шт.

6

R54136

PIN,36.43mm OD x 206.5mm L

Pin, Master Link

1шт.

7

87310174

BUSHING

125.8 mm (4-61/64 in) Long, Master Link

1шт.

8

R51199

SPACER

2шт.

9

178831A1

TRACK SHOE

508 mm (20 in); 1 Bar Closed

86шт.

9

87456249

TRACK SHOE

610 mm (24 in); 1 Bar Closed

86шт.

9

87456250

TRACK SHOE

762 mm (30 in); 1 Bar Closed

86шт.

9

178834A1

TRACK SHOE

864 mm (34 in); 1 Bar Closed

86шт.

10

295318A1

BOLT,Hex, 5/8" - 18 x 2 1/8"

5/8 NF x 2-1/8; Special

344шт.

11

R25688

SQUARE NUT

Square, 5/8 NF

344шт.

.

CHAIN UNIT KIT

1шт.

.

87395765

LINK ASSY.

Includes Instructions, Incl. 12 - 18

1шт.

12

365492A1

LINK

Right Hand

1шт.

13

365493A1

LINK

Left Hand

1шт.

14

S108923

PIN

2шт.

15

R51199

SPACER

2шт.

16

87310174

BUSHING

Master Link

1шт.

17

R54136

PIN,36.43mm OD x 206.5mm L

Pin, Master Link

1шт.

18

R51201

BELLEVILLE WASHER,37.299mm ID x 56.7mm OD x 1.5mm Thk

8шт.

.

PIN AND BUSHING KIT

1шт.

.

SERVICES COMPLETE TRACK CHAIN FOR BOTH SIDES OF TRACTOR

1шт.

.

87396911

KIT

Pin and Bushing, Incl. 19 - 24

1шт.

19

87310173

BUSHING

Standard Pin

82шт.

20

87310174

BUSHING

Master Pin

2шт.

21

R51199

SPACER

4шт.

22

S108923

PIN

Standard

86шт.

23

R54282

SERVICE KIT

0,076 mm (0,003 in), Oversize, Master Link

2шт.

24

R51201

BELLEVILLE WASHER,37.299mm ID x 56.7mm OD x 1.5mm Thk

344шт.
