Запчасти Case 1150K (05-07) - TRACK GUARDS (11) - TRACKS/STEERING

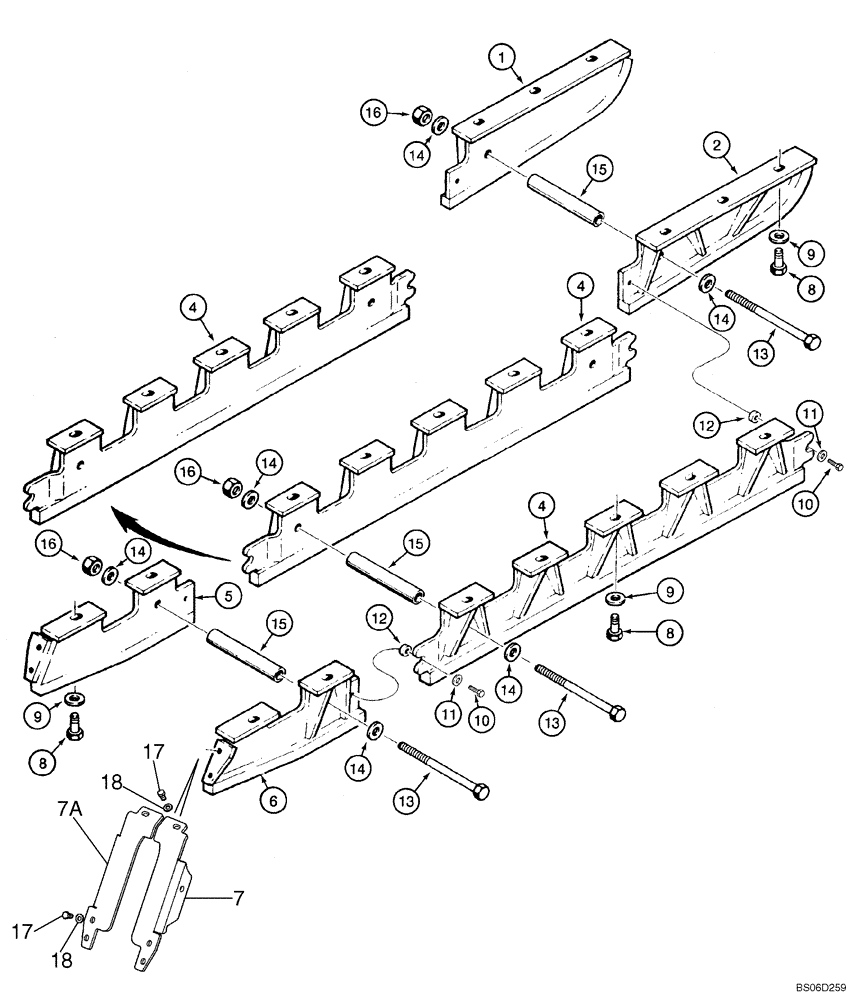

Схема запчастей Case 1150K - (05-07) - TRACK GUARDS (11) - TRACKS/STEERING
18
14
15
9
11
12
14
8
9
13
15
11
8
9
10
7
13
1
8
4
13
14
5
2
17
6
14
14
14
16
16
4
10
17
4
7a
16
18
12
15

Артикул

Название

Примечание

Количество

1

87310707

GUARD

Front, Left Hand Outer, Right Hand Inner

2шт.

2

87310708

GUARD

Front, Right Hand Outer, Left Hand Inner

2шт.

4

87309191

GUARD

Center

4шт.

5

87309188

GUARD

Rear, Left Hand Outer, Right Hand Inner

2шт.

6

87309187

GUARD

Rear, Right Hand Outer, Left Hand Inner

2шт.

7

87309192

COVER

Left Hand Inner, Right Hand Outer

2шт.

7a

87309193

COVER

Left Hand Outer, Right Hand Inner

2шт.

8

409-91224

BOLT

3/4 x 1-1/2 Locking Bolt

40шт.

9

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

40шт.

10

87018374

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

8шт.

11

D64050

WASHER

8шт.

12

R43651

SPACER

8шт.

13

413-12176

BOLT,3/4"-10 x 11", Gr 5

8шт.

14

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

16шт.

15

R27555

SPACER

8шт.

16

231-41112

LOCK NUT,3/4"-10, GB

8шт.

17

409-91020

BOLT

5/8 x 1-1/4 Locking Bolt

16шт.

18

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

16шт.

Выбрано товаров: 18
