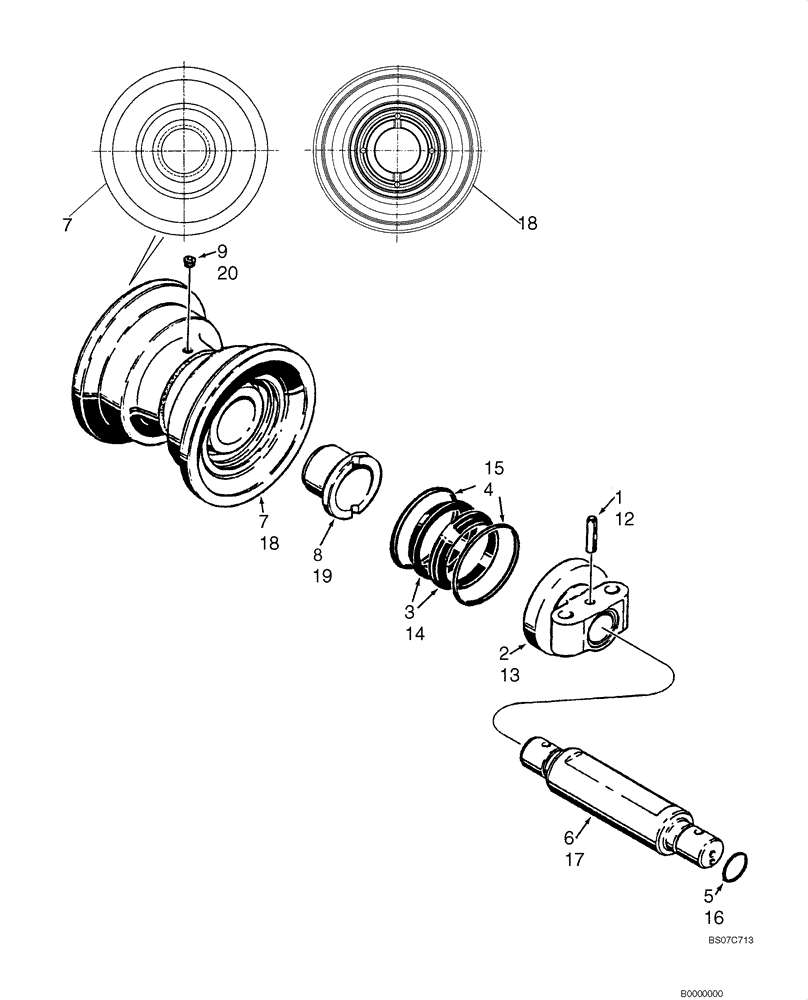

Запчасти Case 1150K (05-06) - TRACK ROLLER (11) - TRACKS/STEERING

87310710

ROLLER ASSY.

Track; Painted; Includes R33571, Ref 1 - 9; Without Lubrication Ports; If Used

14шт.

R33571

ROLLER

Track; Unpainted; Incl. 1 - 9

1шт.

1

R33581

PIN

Roll, 14 x 60

2шт.

2

R33578

CYLINDER END CAP

2шт.

R36780

SEAL,100mm ID x 123.7mm OD x 31.8mm Thk

Incl. 3, 4

2шт.

3

NSS

NOT SOLD SEPARAT

Seal

2шт.

4

NSS

NOT SOLD SEPARAT

O-Ring, Face Seal

2шт.

5

238-5222

O-RING,0.139" Thk x 1.48" ID, -222, Cl 5, 75 Duro

2шт.

6

R33579

SHAFT HOUSING

1шт.

7

R33575

ROLLER

Incl. 8

1шт.

8

R33577

BUSHING

2шт.

9

R33557

PLUG

Hex Socket

1шт.

87581545

ROLLER ASSY, Track; Painted; Includes 87581542, Ref 12 - 20; With Lubrication Ports; If Used

14шт.

87581542

TRACK ROLLER,226mm OD x 197mm W

Track; Primer; Incl. 12 - 20

1шт.

12

R33581

PIN

Roll, 14 x 60

2шт.

13

R33578

CYLINDER END CAP

2шт.

R36780

SEAL,100mm ID x 123.7mm OD x 31.8mm Thk

Incl. 14, 15

2шт.

14

NSS

NOT SOLD SEPARAT

Seal

2шт.

15

NSS

NOT SOLD SEPARAT

O-Ring, Face Seal

2шт.

16

238-5222

O-RING,0.139" Thk x 1.48" ID, -222, Cl 5, 75 Duro

2шт.

17

R33579

SHAFT HOUSING

1шт.

18

NSS

NOT SOLD SEPARAT

87581526, ROLLER, Incl. 19

1шт.

19

R33577

BUSHING

2шт.

20

R33557

PLUG

Hex Socket

1шт.
