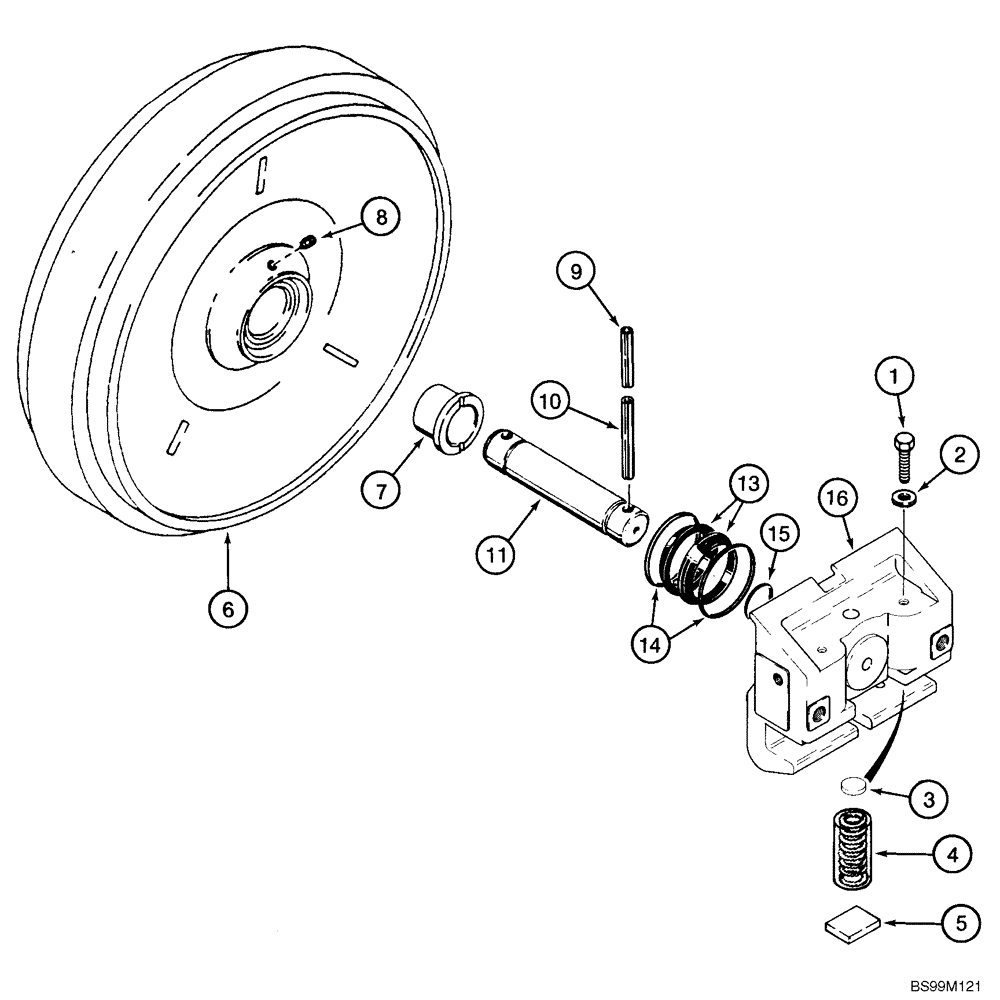

Запчасти Case 1150K (05-05) - TRACK IDLER - MOUNTING (11) - TRACKS/STEERING

1

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

8шт.

2

495-21044

WASHER,3/8"

8шт.

3

R33245

SPRING SEAT

8шт.

4

188866A1

SHOCK ABSORBER

Spring, Idler Support

8шт.

5

R58620

LARGE PLATE

PLATE, LARGE Wear Bar

4шт.

87309204

IDLER

Painted; Includes 366245A1, Ref 6 - 16

2шт.

366245A1

FRONT IDLER

Unpainted; Incl. 6 - 16

1шт.

6

NSS

NOT SOLD SEPARAT

Hub, Order 366245A1, Incl. 7

1шт.

7

S105797

BUSHING

2шт.

8

R33557

PLUG

Hex Socket

1шт.

9

R58619

ROLL PIN

10 x 95

2шт.

10

R58618

ROLL PIN

16 x 95

2шт.

11

R58617

SHAFT

1шт.

S116825

SEAL,90.5mm ID x 109.5mm OD x 31.8mm Thk

Incl. 13, 14

2шт.

13

NSS

NOT SOLD SEPARAT

Seal, Order S116825

2шт.

14

NSS

NOT SOLD SEPARAT

O-Ring, Face Seal

2шт.

15

238-5227

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

2шт.

16

R58616

BRACKET

2шт.
