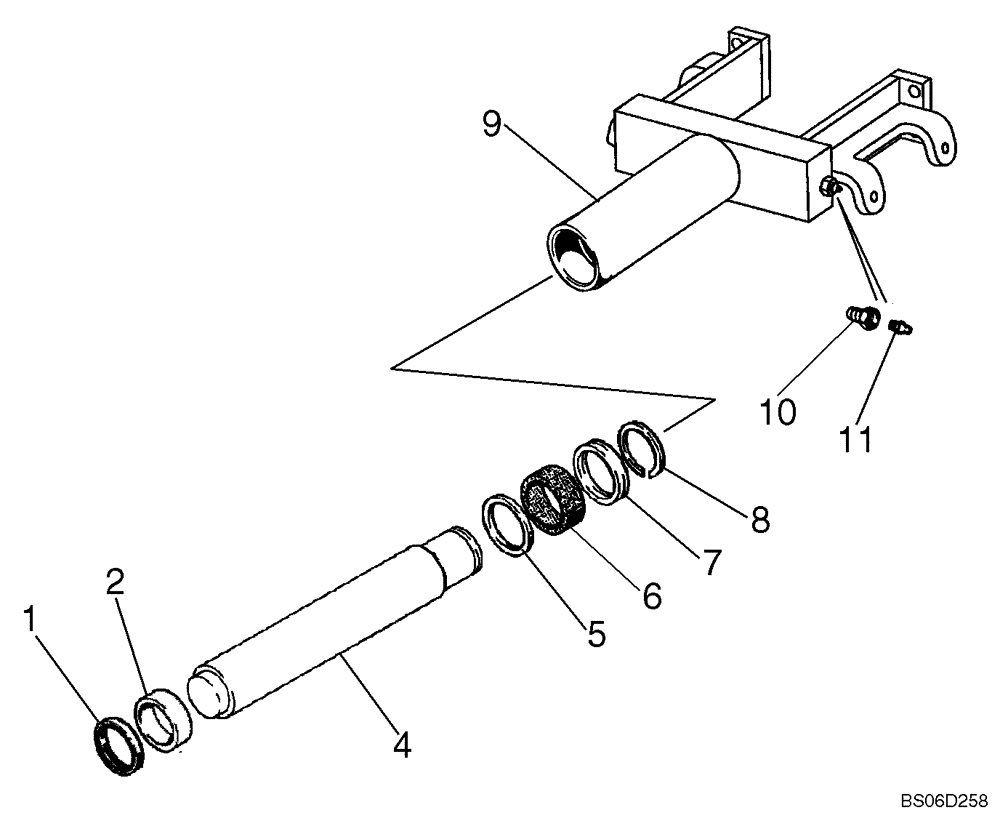

Запчасти Case 1150K (05-04) - TRACK ADJUSTER (11) - TRACKS/STEERING

87309195

YOKE

Tensioner, Right-Hand; Incl. Ref 1 - 11; Shown

1шт.

87309196

YOKE

Tensioner, Left-Hand; Incl. Ref 1 - 11; Not Illustrated

1шт.

1

D95149

PACKING RING,60.24mm ID x 73.05mm OD x 7.92mm Thk

1шт.

2

D30374

RING,60.43mm ID x 73.15mm OD x 25.4mm L

1шт.

4

345091A1

PISTON

1шт.

5

R30202

RING,54.101mm ID x 65.1mm OD x 5.08mm Thk

1шт.

6

R25663

BUSHING,53.98mm ID x 66.62mm OD x 25.4mm L

1шт.

7

R25706

SEAL,53.9mm ID x 66.75mm OD x 10.69mm Thk

1шт.

8

101-11212

SNAP RING,#212, 1.997", Ext

1шт.

9

NSS

NOT SOLD SEPARAT

CLEVIS, YOKE

1шт.

10

D35287

CHECK VALVE,5/8" - 18

Ball Check

1шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

R57781

KIT

Track Adjuster Repair, Incl. Ref 1, 2, 5 - 8

1шт.
