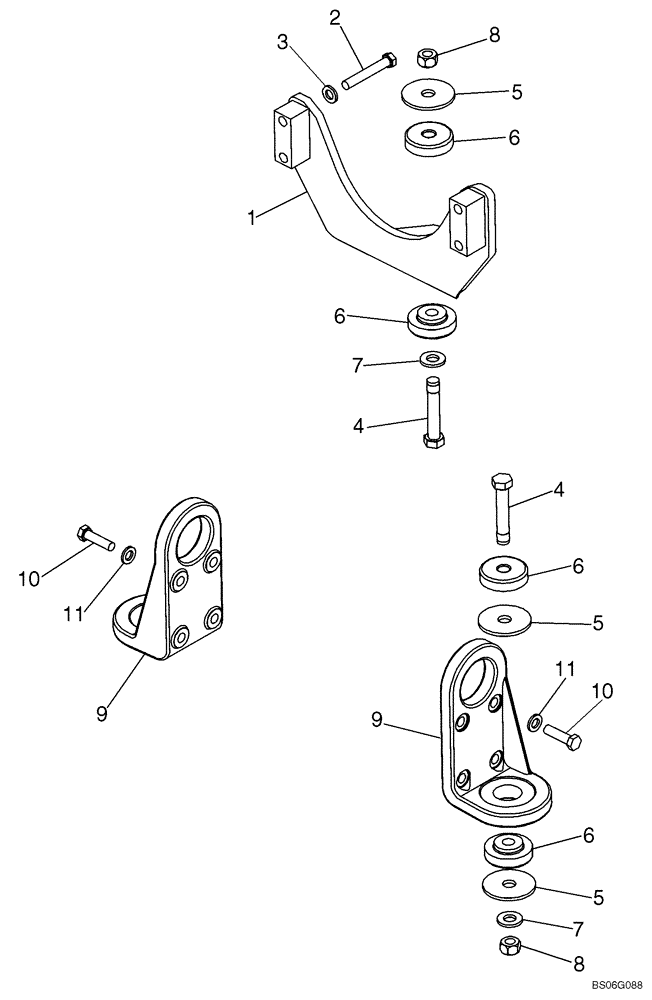

Запчасти Case 1150K (02-08) - ENGINE - MOUNTING (02) - ENGINE

REF

INSTRUCTION

PARTS ON THIS PAGE ARE NOT INCLUDED IN THE ENGINE ASSEMBLY, PURCHASE SEPARATELY

1шт.

1

87432314

ENGINE MOUNT

Front

1шт.

2

A171690

BOLT

M12 x 82.8

4шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

4

106-91056

LOCK BOLT,Locking, 5/8"-11 x 3 1/2", G5

3шт.

5

R49597

WASHER,17.5mm ID x 70mm OD x 4.5mm Thk

5шт.

6

R49921

RUBBER MOUNTING

6шт.

7

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

3шт.

8

425-1010

NUT,5/8"-11, G5

3шт.

9

8602302

ENGINE MOUNT

Rear, Flywheel Housing

2шт.

10

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

8шт.

11

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.
