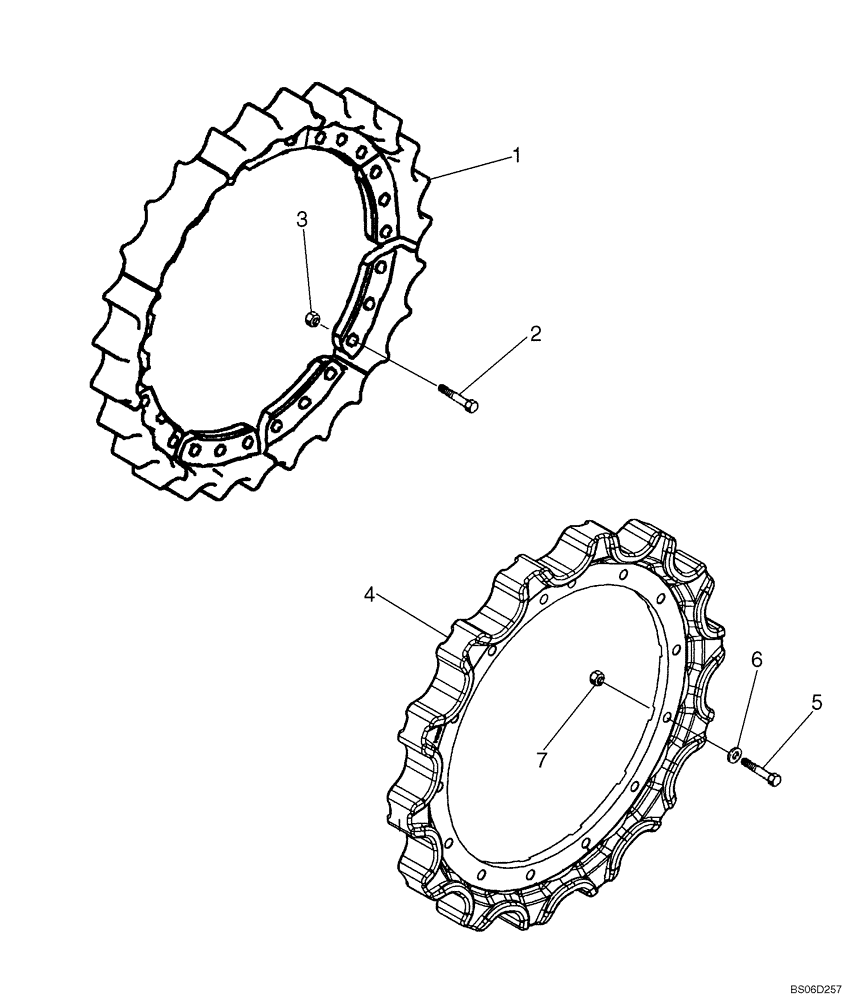

Запчасти Case 1150K (05-03) - SPROCKET, TRACK (11) - TRACKS/STEERING

87455278, SPROCKET ASSEMBLY, Used On Models With Case Lubricated Track, 43 Link (CLT) 20, 24, 30 or 34 Inch 1 Closed Grouser; Incl. Ref 1 - 3; Used In Production, Order Components

1шт.

1

87455356

DRIVE SPROCKET

SEGMENTS

18шт.

2

79074169

BOLT,M18 x 1.5 x 60mm, Cl 10.9

M18 x 60 mm

54шт.

3

79074170

NUT,M18 x 1.5

M18

54шт.

87455277, SPROCKET ASSEMBLY, Used On Models With Extended Life Track, 43 Link (CELT) 20, 24, 30 or 34 Inch 1 Bar Open, Open Grouser; Incl. Ref 4 - 7; Used In Production, Order Components

1шт.

4

87372071

DRIVE SPROCKET

SPROCKET, Drive

2шт.

5

79074169

BOLT,M18 x 1.5 x 60mm, Cl 10.9

M18 x 60 mm

28шт.

6

87522124

WASHER

18.5 x 34 x 3 mm

28шт.

7

79074170

NUT,M18 x 1.5

M18

28шт.
