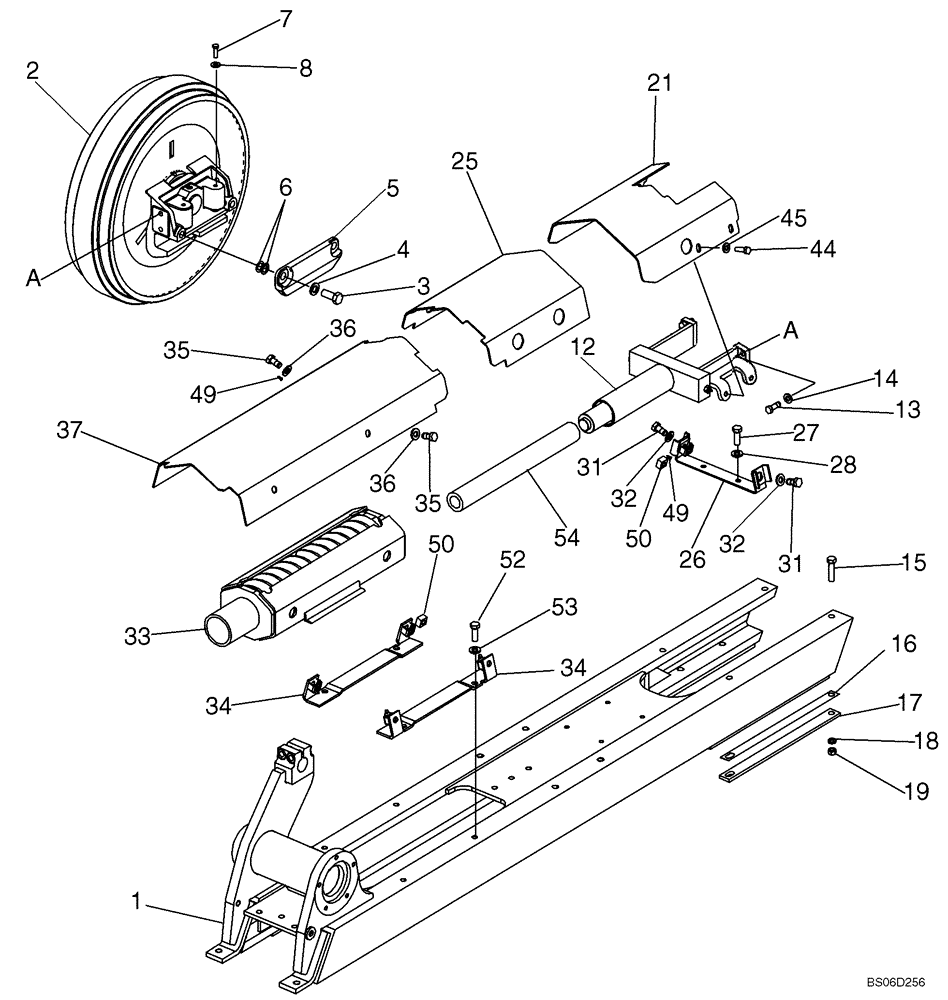

Запчасти Case 1150K (05-02) - IDLER - RECOIL SYSTEM (11) - TRACKS/STEERING

1

REF

INSTRUCTION

Frame, See Figure 05-01, Right Hand Frame Shown in Illustration

2шт.

2

87309204

IDLER

Front, Painted, See Figure 05-05

2шт.

3

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

8шт.

4

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

8шт.

87310711

THRUST PLATE

Painted; Incl. R56668, Ref 5

4шт.

5

R56668

LARGE PLATE

PLATE, LARGE Unpainted

1шт.

6

D35268

SHIM,1/32" Thk

1шт.

7

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

8шт.

8

495-21044

WASHER,3/8"

8шт.

12

87309195

YOKE

TENSIONER, Track, Right-Hand, See Figure 05-04

1шт.

12a

87309196

YOKE

TENSIONER, Track, Left-Hand, See Figure 05-04; Not Illustrated

1шт.

13

410-9824

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

8шт.

14

496-21053

WASHER,17/32" x 1 1/16" x .134"

8шт.

15

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

8шт.

16

87456084

SHIM

1шт.

17

87456085

BAR

Wear Plate

4шт.

18

492-11062

BEARING WASHER,5/8"

8шт.

19

425-1010

NUT,5/8"-11, G5

8шт.

21

87309197

COVER

Yoke, Track Adjuster

1шт.

25

87309199

COVER

Track Adjuster

2шт.

26

87309201

ANGLE

Bracket, Cover Mounting

4шт.

27

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

8шт.

28

492-11050

LOCK WASHER,1/2"

8шт.

31

409-91020

BOLT

5/8 x 1-1/4 Locking Bolt

8шт.

32

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

8шт.

33

87309205

ADJUSTER,Track

TENSIONER, Recoil

2шт.

34

87309203

BRACKET

Recoil Mount

4шт.

35

409-91020

BOLT

5/8 x 1-1/4 Locking Bolt

8шт.

36

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

8шт.

37

87309198

COVER

Housing

2шт.

44

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

8шт.

45

496-21053

WASHER,17/32" x 1 1/16" x .134"

8шт.

49

336371A1

PIN,4.88mm OD x 14.23mm L

Nut Retainer

16шт.

50

224-28010

SQUARE NUT,Sq, 5/8"-11, G2, Hvy

16шт.

52

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

8шт.

53

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

8шт.

54

87309194

TUBE

Track Adjuster

2шт.
