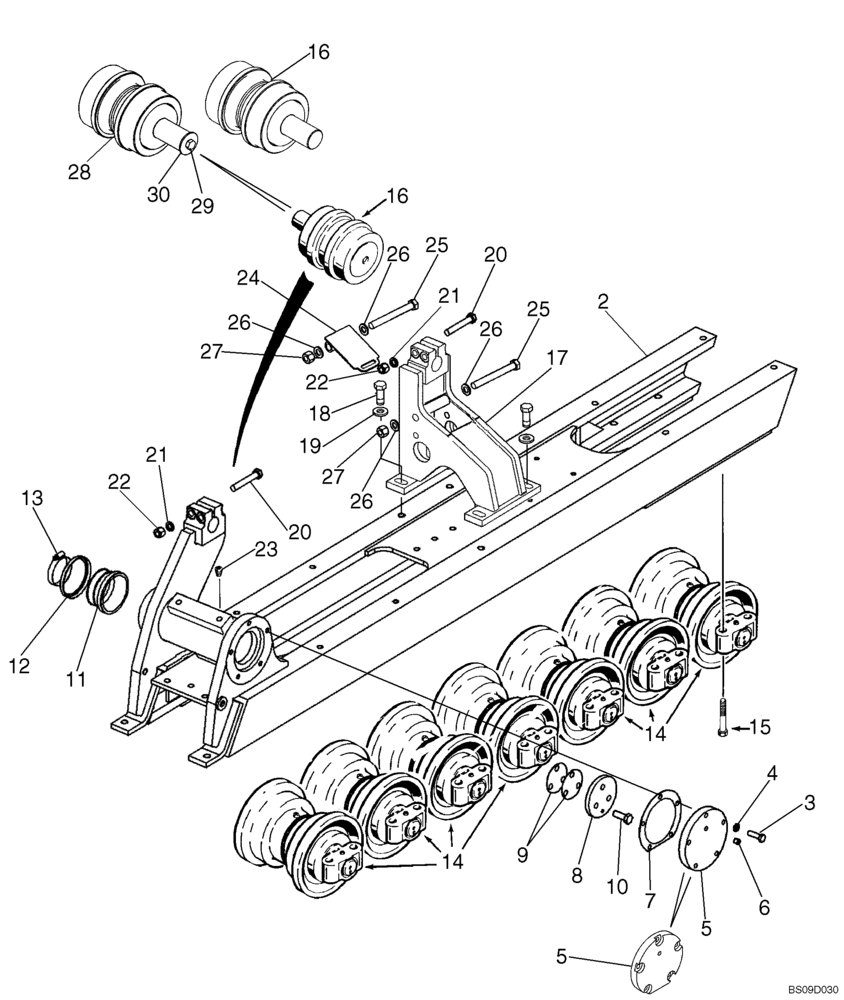

Запчасти Case 1150K (05-01) - FRAME, TRACK - ROLLER (11) - TRACKS/STEERING

1

87309190

FRAME

Track, Left Hand, Not Illustrated

1шт.

2

87309189

FRAME

Track, Right Hand

1шт.

3

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

10шт.

4

492-11050

LOCK WASHER,1/2"

10шт.

5

87372874

COVER

Pivot Shaft; If Used

2шт.

5

87558881

COVER

Pivot Shaft; If Used

2шт.

6

217-432

PLUG,Hex Soc, 1/4" - 18 NPTF

2шт.

7

R27377

GASKET,0.38mm Thk

1шт.

8

R36949

PLATE

2шт.

9

R27540

SHIM,.031" Thk

1шт.

10

328-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 8

6шт.

11

R41714

SEAL

2шт.

12

R41713

GUARD

Seal

2шт.

13

214-3164

HOSE CLAMP,3-1/4" - 4-1/8", HD Worm

3-1/4 x 4-1/8

2шт.

14

NSS

NOT SOLD SEPARAT

Track, See Figure 05-06; For Roller Options

14шт.

15

409-91248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

56шт.

16

87310709

ROLLER ASSY.

Carrier, Component Parts Not Serviced Separately;NLA, Order 87626156, Ref. 28

4шт.

17

87309200

BRACKET

Support

2шт.

18

107-91232

LOCK BOLT,Locking, 3/4"-10 x 2", G8

8шт.

19

896-15018

WASHER,20mm ID x 41mm OD x 5mm Thk

8шт.

20

426-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 8

8шт.

21

496-81004

WASHER,41/64" x 1.047" x .134", HDN

8шт.

22

232-41410

LOCK NUT,5/8"-11, GC

8шт.

23

217-432

PLUG,Hex Soc, 1/4" - 18 NPTF

2шт.

24

87310712

PLATE ASSY.

2шт.

25

413-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

2шт.

26

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

Hardened

4шт.

27

231-41112

LOCK NUT,3/4"-10, GB

2шт.

28

87626156

ROLLER ASSY.

ROLLER ASSY., Carrier, Component Parts Not Serviced Separately; Incl Ref. 29, 30

4шт.

29

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

30

495-91167

WASHER,13.49mm ID x 50.8mm OD x 3.4mm Thk

1шт.
