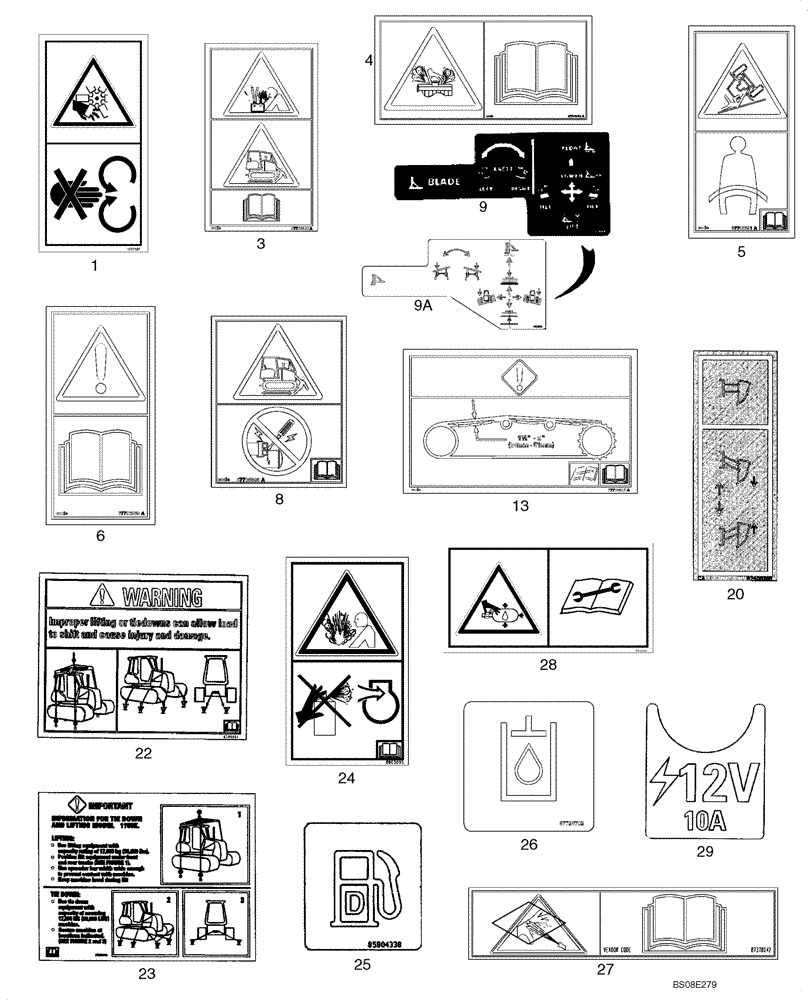

Запчасти Case 1150K (09-49) - DECALS - EUROPEAN (09) - CHASSIS/ATTACHMENTS

1

332511A1

DECAL

Warning; Entanglement Hazard, Fan

2шт.

3

87706390

DECAL

DECAL, Danger; Jump Start, Battery

2шт.

4

87706392

DECAL

DECAL, Warning; Fluid Under Pressure; Radiator Cap

1шт.

5

87706391

DECAL

DECAL, Warning; Do Not Jump

1шт.

6

87706389

DECAL

DECAL, Warning; Read the Operator's Manual

1шт.

8

87706393

DECAL

DECAL, Danger; Engine Start Warning

1шт.

9

87420954

DECAL

Dozer Blade Control Pattern; No Longer Used, Order Ref 9A, 84124149

1шт.

9a

84124149

DECAL

DECAL, Dozer Blade Control Pattern

1шт.

13

87706396

DECAL

DECAL, Important; Track Tension

1шт.

20

87422190

DECAL

Ripper Control Pattern

1шт.

22

NSS

NOT SOLD SEPARAT

Lift And Tie Down Warning; North American Decals Only

1шт.

23

NSS

NOT SOLD SEPARAT

Lift And Tie Down Instructions; North American Decals Only

1шт.

24

8603095

WARNING DECAL

Warning, Explosion Hazard, Do Not Use Ether

1шт.

25

85804338

DECAL,50mm x 50mm H

Diesel Fuel Fill

1шт.

26

87726702

DECAL,50mm x 50mm H

Hydraulic Oil Fill

1шт.

27

87378042

WARNING DECAL

Pressurized System Hazard; Do Not Open High Pressure Fuel System With Engine Running

1шт.

28

328903A1

DECAL

Warning; Accumulator pressurized System Hazard, Relieve Pressure Before Maintenance

1шт.

29

87601526

DECAL,35mm x 40mm H

12 Volt Power Outlet

1шт.
