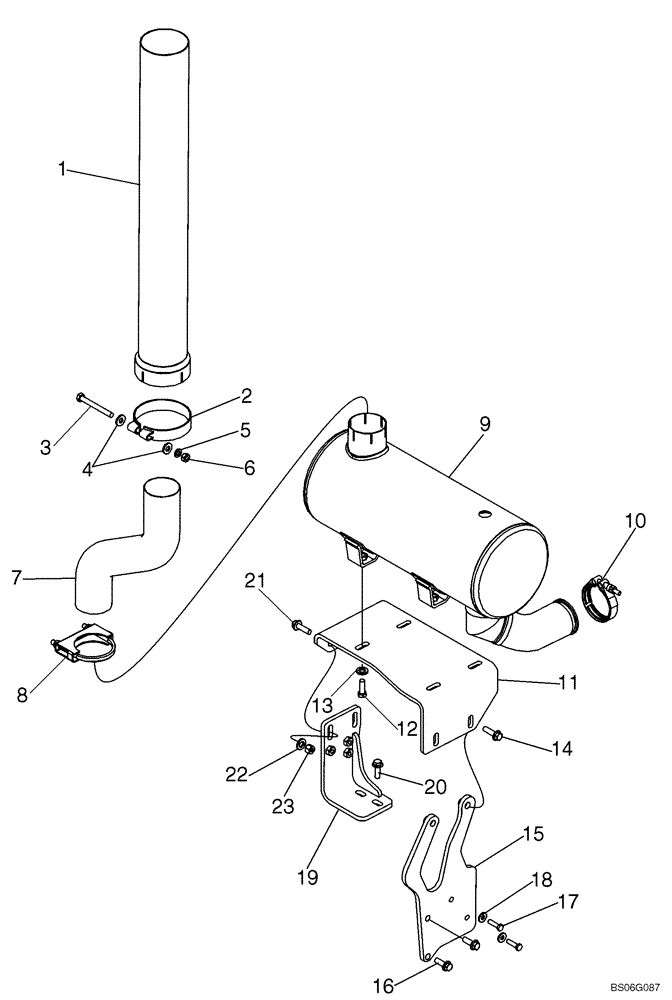

Запчасти Case 1150K (02-07) - MUFFLER - EXHAUST SYSTEM (02) - ENGINE

1

189279A2

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST

1шт.

2

R27699

CLAMP,114.3mm

1шт.

3

614-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8, Full Thd

1шт.

4

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

2-8шт.

5

892-11010

LOCK WASHER,M10

1шт.

6

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

7

87324197

EXHAUST SYSTEM PIPE,76.20mm OD

Exhaust

1шт.

8

299456A1

CLAMP,80.5mm ID

1шт.

9

87722095

MUFFLER

Replaces 87393948

1шт.

10

A170467

CLAMP,72mm ID

Includes Hardware; T-Bolt, Turbo

1шт.

11

87523610

PLATE, SUPPORT

Bracket

1шт.

12

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

13

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

14

844-10035

BOLT,Hex, M10 x 35mm, Cl 8.8

2шт.

15

87395077

SUPPORT

Support

1шт.

16

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

2шт.

17

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.

18

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

19

87578586

SUPPORT

1шт.

20

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

21

844-10035

BOLT,Hex, M10 x 35mm, Cl 8.8

2шт.

22

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2-4шт.

23

832-10410

NUT,M10 x 1.5, Cl 8

2шт.
