(09-45) - DECALS - LATIN AMERICAN SPANISH

Запчасти Case 1150K (09-45) - DECALS - LATIN AMERICAN SPANISH (09) - CHASSIS/ATTACHMENTS

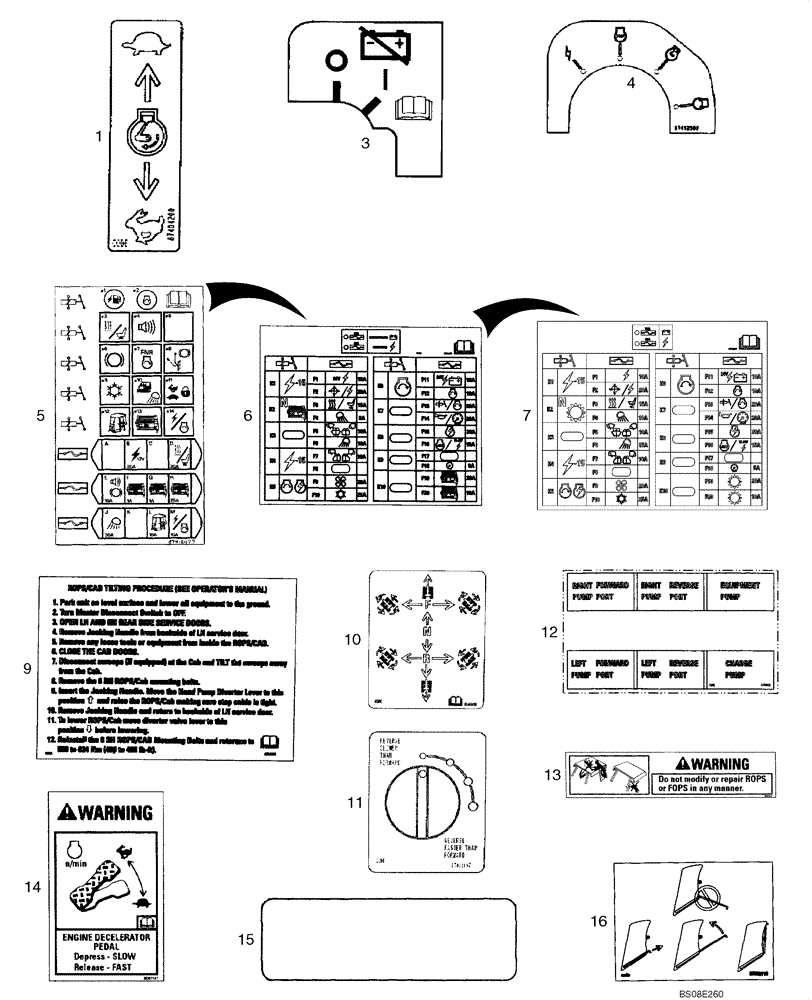

Схема запчастей Case 1150K - (09-45) - DECALS - LATIN AMERICAN SPANISH (09) - CHASSIS/ATTACHMENTS
15
1
12
10
6
4
3
13
9
11
5
16
14
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87422188

DECAL,16.5mm x 55mm H

Throttle

1шт.

3

379422A1

DECAL

Master Disconnect Switch

1шт.

4

87412595

DECAL

Ignition Switch

1шт.

5

87441773

DECAL

Fuse/Relays; No Longer Used, Order Ref 6, 87580675

1шт.

6

87580675

DECAL

Fuse Chart; No Longer Used, Order Ref 7, 84132149

1шт.

7

84132149

DECAL

DECAL, Fuse & Relay

1шт.

9

87515553

DECAL

Canopy/Cab Tilting Procedure

1шт.

10

87422184

DECAL,57mm x 69mm H

Forward/Neutral/Reverse

1шт.

11

87421179

DECAL

Reverse Controller

1шт.

12

87421177

DECAL

Diagnostics

1шт.

13

87454610

DECAL

Warning, Do Not Modify or Repair ROPS or FOPS In Any Manner

1шт.

14

383971A1

DECAL

Warning, Engine Decelerator Pedal

1шт.

15

449842A1

REFLECTOR,160mm x 50.8mm H - Red

Reflector, Rectangular; 50.8 (2 in) x 160 mm (6-5/16 in)

2шт.

16

87550110

DECAL

Console Lockup Kit Instruction 50.0 mm x 66.0 mm

1шт.
