Запчасти Case 1150K (09-41) - DECALS - CANADIAN FRENCH (09) - CHASSIS/ATTACHMENTS

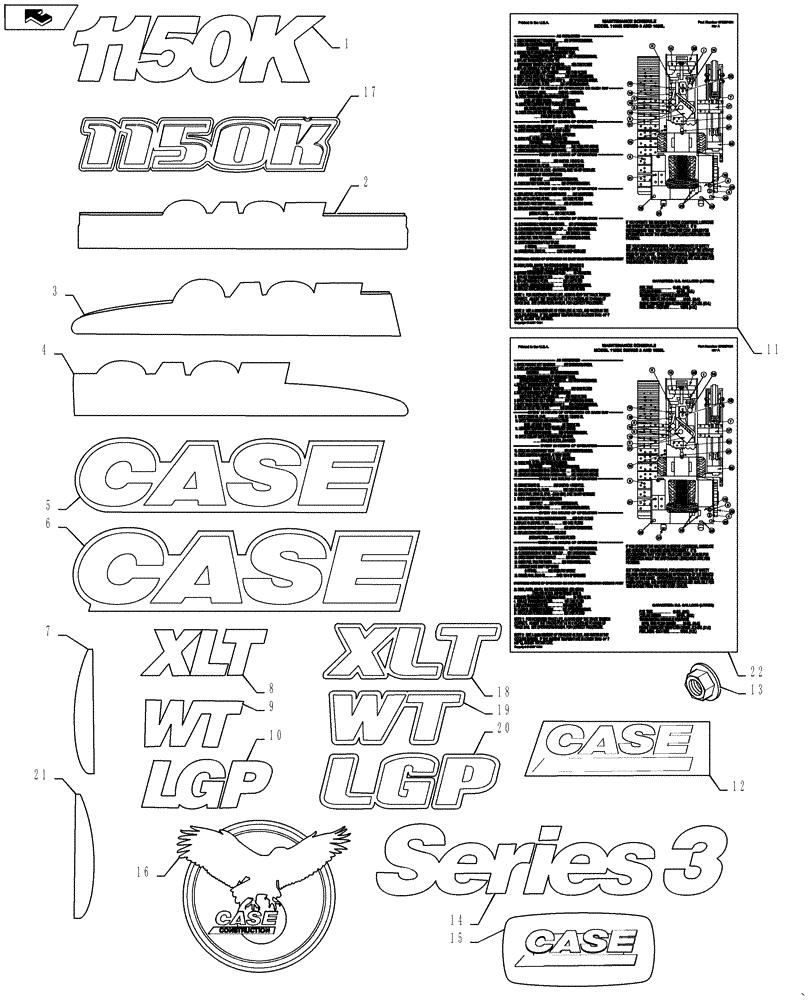

Схема запчастей Case 1150K - (09-41) - DECALS - CANADIAN FRENCH (09) - CHASSIS/ATTACHMENTS
4
15
13
9
17
8
21
5
18
20
10
16
2
12
7
14
home
6
22
19
3
11
1

Артикул

Название

Примечание

Количество

1

87379157

DECAL

Model, 1150K, Serial Range: -NBDC11042

2шт.

2

87378756

DECAL

Rear Case Logo Strip, Serial Range: -NBDC11042

1шт.

3

87378757

DECAL

Left Rear Case Logo Strip, Serial Range: -NBDC11042

1шт.

4

87378758

DECAL

Right Rear Case Logo Strip, Serial Range: -NBDC11042

1шт.

5

87379158

DECAL

Case; 178.8 x 785.8 mm (7-3/64 x 30-15/16 in); Rear Side, Serial Range: -NBDC11042

2шт.

6

87378759

DECAL

Case; 205.5 x 888 mm (8-3/32 x 34-31/32 in); Rear, Serial Range: -NBDC11042

1шт.

6

84468413

DECAL,1054mm x 268mm H

Case; 268 x 1054 mm, Start Serial: NBDC11043

3шт.

7

87378763

DECAL

Left-Hand Door Edge

1шт.

8

87408276

DECAL

Extended Long Track (XLT) Models, Serial Range: -NBDC11042

2шт.

9

87408275

DECAL

Wide Track (WT) Models, Serial Range: -NBDC11042

2шт.

10

87408279

DECAL

Low Ground Pressure (LGP) Models, Serial Range: -NBDC11042

2шт.

11

87549448

DECAL Maintenance Schedule; No Longer Available, Oreder Ref 22

1шт.

12

186989A1

EMBLEM

Emblem, Case; Front Grille

1шт.

13

131-431

PUSH-ON NUT,Self, Threading, 1/4"

Case Emblem

2шт.

14

87412815

DECAL

Series 3

2шт.

15

87415931

DECAL

Case, Engine

2шт.

16

84468362

DECAL,194mm x 170mm H

Eagle, Start Serial: NBDC11043

2шт.

17

84531858

DECAL

Model, 1150K, Start Serial: NBDC11043

2шт.

18

84468414

DECAL

XLT, Start Serial: NBDC11043

2шт.

19

84468428

DECAL

WT, Start Serial: NBDC11043

2шт.

20

84468429

DECAL

LGP, Start Serial: NBDC11043

2шт.

21

87378764

DECAL

Right-Hand Door Edge

1шт.

22

87697493

DECAL

Maintenance Schedule; French

1шт.

Выбрано товаров: 23
