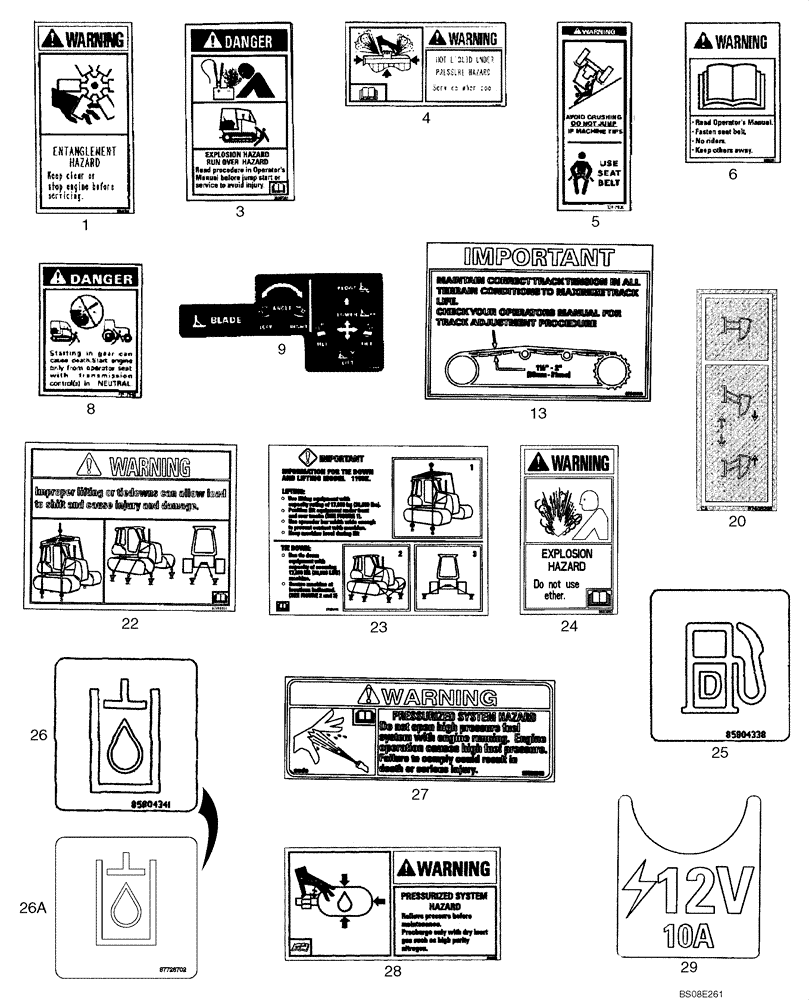

Запчасти Case 1150K (09-40) - DECALS - ENGLISH (09) - CHASSIS/ATTACHMENTS

1

332512A1

DECAL

Warning; Entanglement Hazard, Fan

2шт.

3

383973A1

DECAL,60mm x 100mm H

Danger; Jump Start, Battery

2шт.

4

329044A1

WARNING DECAL,168mm x 88mm H

Fluid Under Pressure; Radiator Cap

1шт.

5

321-7030

WARNING DECAL

Do Not Jump

1шт.

6

382622A1

DECAL,60mm x 90mm H

Warning; Read the Operator's Manual

1шт.

8

321-7040

DANGER DECAL

Engine Start Warning

1шт.

9

87420954

DECAL

Dozer Blade Control Pattern

1шт.

13

87542610

DECAL

Important; Track Tension

1шт.

20

87422190

DECAL

Ripper Control Pattern

1шт.

22

87416964

DECAL,110mm x 85mm H

Lift And Tie Down Warning

1шт.

23

87380490

DECAL

Lift And Tie Down Instructions

1шт.

24

8603092

WARNING DECAL,55mm x 95mm H

Warning, Explosion Hazard, Do Not Use Ether

1шт.

25

85804338

DECAL,50mm x 50mm H

Diesel Fuel Fill

1шт.

26

85804341

DECAL

Hydraulic Oil Fill; No Longer Used, Order Ref 26A 87726702

1шт.

26a

87726702

DECAL,50mm x 50mm H

Hydraulic Oil

1шт.

27

87581010

WARNING DECAL

Pressurized System Hazard; Do Not Open High Pressure Fuel System With Engine Running

1шт.

28

384260A1

WARNING DECAL,168mm x 88mm H

Accumulator Pressurized System Hazard, Relieve Pressure Before Maintenance

1шт.

29

87601526

DECAL,35mm x 40mm H

12 Volt Power Outlet

1шт.
