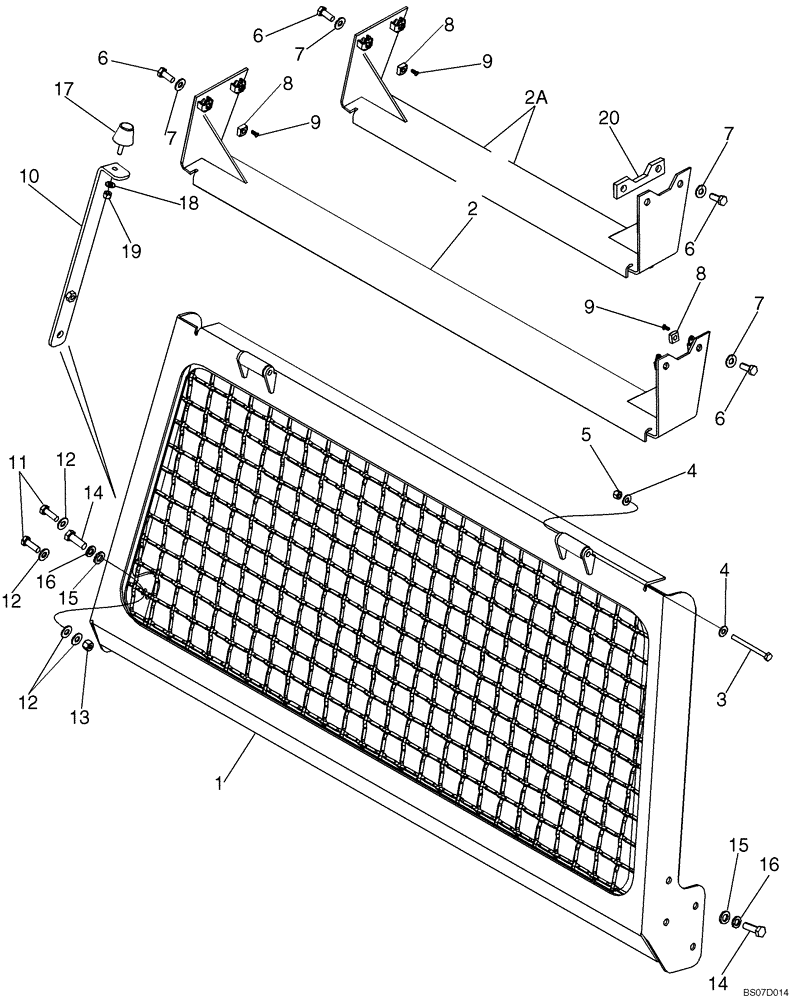

Запчасти Case 1150K (09-37) - CAB - SCREEN, REAR (09) - CHASSIS/ATTACHMENTS

1

87543873

SCREEN

Rear Screen

1шт.

2

87543871

SUPPORT

Rear Cab, with 4 cage nuts, No longer available, Order 87623643, Ref 2A, 87623648, Plate Ref 20

1шт.

3

814-8090

BOLT,Hex, M8 x 1.25 x 90mm, Cl 8.8

2шт.

4

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

5

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

6

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

7

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

8

122958A1

SQUARE NUT

Square, M10

2 - 4шт.

9

336371A1

PIN,4.88mm OD x 14.23mm L

Nut Retainer

2 - 4шт.

10

87543876

SUPPORT

Hold Open, Screen Prop

1шт.

11

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

12

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

13

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

14

814-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

4шт.

15

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

16

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

17

N7673

BUMPER

BUMPER

1шт.

18

495-11034

WASHER,5/16", SAE

1шт.

19

231-1445

NUT,5/16"-18, GB

1шт.

2a

87623643

SUPPORT

SUPPORT, Rear Cab, with 2 cage nuts

1шт.

20

87623648

BLOCK

PLATE, mounting

1шт.
