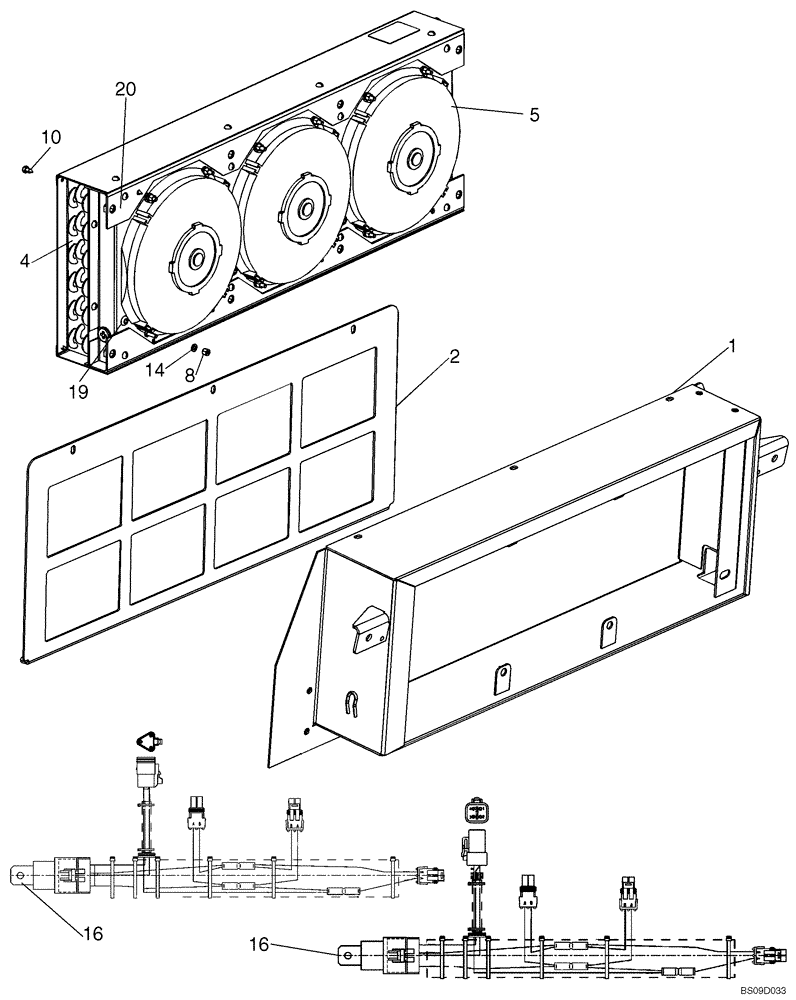

Запчасти Case 1150K (09-36) - CAB - AIR CONDITIONING CONDENSER (09) - CHASSIS/ATTACHMENTS

87397410

CONDENSER

Condenser Assembly 24V

1шт.

1

87530525

HOUSING

1шт.

2

87551016

SCREEN

1шт.

4

87586969

COIL

1шт.

5

87587491

FAN

Fan Motor 24 V , 10 in Puller W/ RFI

3шт.

8

832-10406

NUT,M6 x 1, Cl 8

12шт.

10

779-14613

SELF-TAP SCREW,Hex Hd, M6.3 x 13

5шт.

14

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

12шт.

16

87717443

WIRE HARNESS

Condenser; If Used

1шт.

16

84192517

WIRE HARNESS

Wire Harness Condenser; If Used, Serial Range: -87586959

1шт.

19

87586963

GROMMET

Wire Grommet

3шт.

20

87586970

RELAY

Relay, 24V

1шт.

REF

INSTRUCTION

Some Information And Drawings Are Not Available At Time Of Printing

1шт.

760-14613

SELF-TAP SCREW,Pan Hd, M6.3 x 13

20шт.

NSS

NOT SOLD SEPARAT

Coil, Condenser Fan Plenum

1шт.

87717443

WIRE HARNESS

Harness Condenser

1шт.

9827060

O-RING,1.78mm Thk x 7.65mm ID, -11, 70 Duro

#6

1шт.

9827058

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

#8

1шт.
