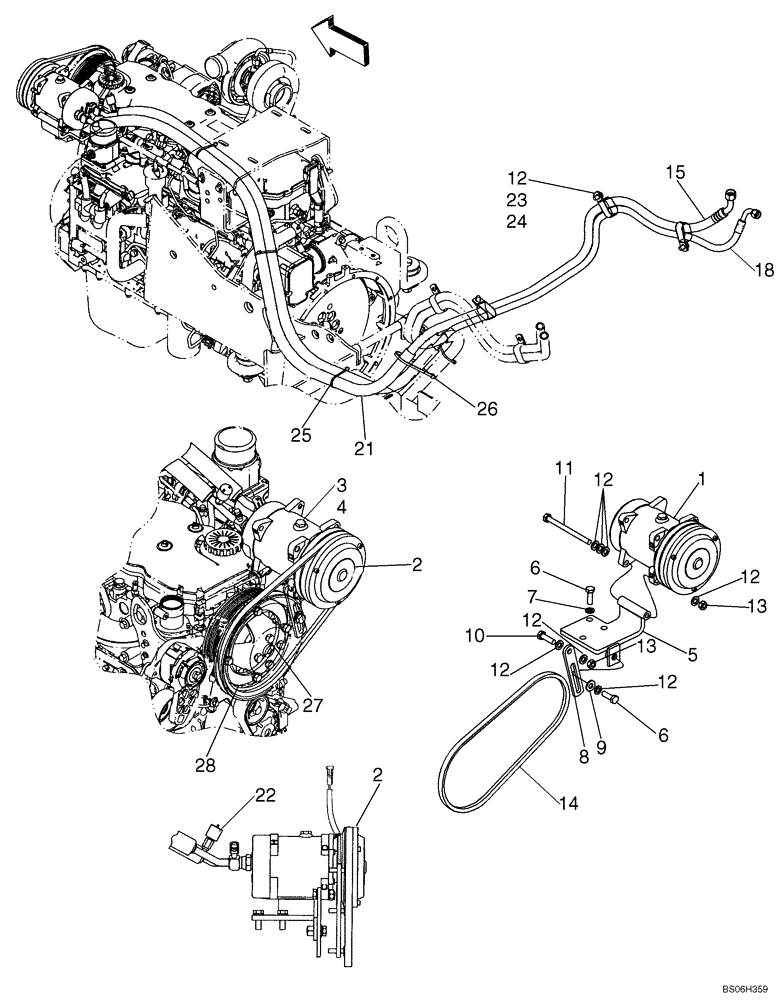

Запчасти Case 1150K (09-35) - CAB- AIR CONDITIONING COMPRESSOR (09) - CHASSIS/ATTACHMENTS

1

86983967

AIRCOND. COMPRESSOR,24V, W/ Clutch, W/ Pulley

Incl. Ref 2 - 4

1шт.

86983967R

REMAN-COMPRESSOR,24V, W/ Clutch, W/ Pulley

1150K TIER 3 (10/06-)

1шт.

86983967C

CORE-COMPRESSOR

Return Number

1шт.

2

138886A2

CLUTCH

Compressor

1шт.

3

A49667

PLUG

1шт.

4

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

1шт.

5

87362945

BRACKET, SUPPORTING

Compressor Support

1шт.

6

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.

7

892-11010

LOCK WASHER,M10

4шт.

8

84716C1

SUPPORT

Strap

1шт.

9

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

10

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

1шт.

11

814-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 8.8

1шт.

12

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

9шт.

13

825-1410

NUT,M10, Cl 8

2шт.

14

87451034

V-BELT,12.70 mm W x 1012.80 mm L

Air Conditioner Drive

1шт.

15

84195139

A/C HOSE

A/C Suction Hose; Includes 122553A1 Cap, 9827059, 87533612 O-Ring, 1250594C2 Valve Core

1шт.

122553A1

CAP

Low Side Service Port

1шт.

9827059

O-RING,1.78mm Thk x 14mm ID, 70 Duro

Cab End

1шт.

87533612

O-RING,1.93mm Thk x 15.67mm ID, Cl 5, 75 Duro

Compressor End

1шт.

1250594C2

CORE

Valve

1шт.

18

84195140

HOSE ASSY.

A/C Discharge Hose; Includes 122554A1 Cap, 9827058, 87533612 O-Ring, 1250594C2 Valve Core

1шт.

122554A1

CAP

High Side Service Port

1шт.

9827058

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

Cab End

1шт.

87533612

O-RING,1.93mm Thk x 15.67mm ID, Cl 5, 75 Duro

Compressor End

1шт.

1250594C2

CORE

Valve

1шт.

21

87580828

CONDUIT

Convoluted Conduit

2шт.

22

284273A2

SWITCH, A/C HIGH PRE

High Pressure A/C

1шт.

23

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

3шт.

24

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

Insulated, 25.4 mm Dia

3шт.

25

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Tie, Cable

3шт.

26

L18331

CABLE TIE,375.9mm L, Nylon

CABLE STRAP

1шт.

27

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

4шт.

28

87561120

SPACER

AC Pulley Spacer

1шт.
