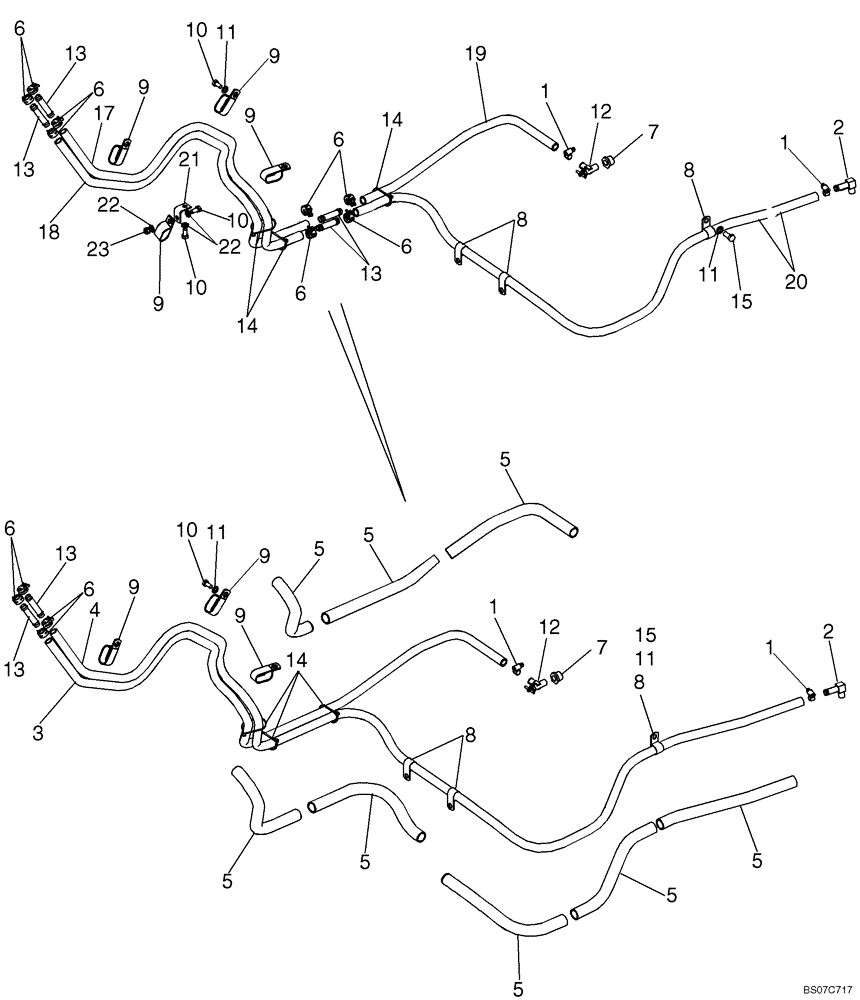

Запчасти Case 1150K (09-33) - CAB - HEATING SYSTEM (09) - CHASSIS/ATTACHMENTS

1

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

2шт.

2

217-332

FITTING,90 Degree Elbow, 5/8" Hose Barb x 3/8" Male NPTF

1шт.

3

R55243

HEATER HOSE,15.50 mm ID x 2300.00 mm

Cut from 97252CX; To Heater Inlet Hose, If Used

1шт.

4

410532A1

HEATER HOSE,15.50 mm ID x 3556mm L

Heater Supply (Engine to Tee), If Used

1шт.

5

87563199

CONDUIT

25.4 ID x 32.3 OD x 450 mm lg (1 ID x 1-9/32 OD x 17-23/32 in) Conduit

8шт.

6

1954736C1

HOSE CLAMP,#24

4 - 8шт.

7

221-1092

REDUCER,Hex, 3/4" x 3/8" NPT

1шт.

8

51200320

CLAMP

1 in dia; 17/32 Bolt Hole

3шт.

9

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

Double, 1 in

3шт.

10

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

3 - 4шт.

11

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

12

A16764

VALVE

Water Shutoff; Use W/ 345-50 Loctite 71 Sealant, Ref 16

1шт.

13

S104739

TUBE,0.625" OD x 3" L

5/8 OD x 3 in lg

2 - 4шт.

14

L18331

CABLE TIE,375.9mm L, Nylon

CABLE STRAP

3 - 5шт.

15

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

1шт.

16

345-50

ADHESIVE

Loctite 71 Sealant

1шт.

17

87607163

HEATER HOSE,15.50 mm ID x 1610.00 mm

Rear Heater Supply, Cut from 87567192 Bulk

1шт.

18

87607160

HEATER HOSE,15.50 mm ID x 1470.00 mm

Rear Heater Return, Cut from 87567191 Bulk

1шт.

19

87607161

HOSE

HOSE, 15.5 ID x 24 OD x 550 mm lg (21 11/16 in); Heater Supply, Cut from 87567192 Bulk

1шт.

20

87607159

HEATER HOSE,15.50 mm ID x 1910.00 mm

Front Heater Return, Cut from 87567191 Bulk

1шт.

21

87628325

SUPPORT

BRACKET;, Serial Range: mounts-cab

1шт.

22

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

23

829-1310

NUT,M10, Cl 10

1шт.
