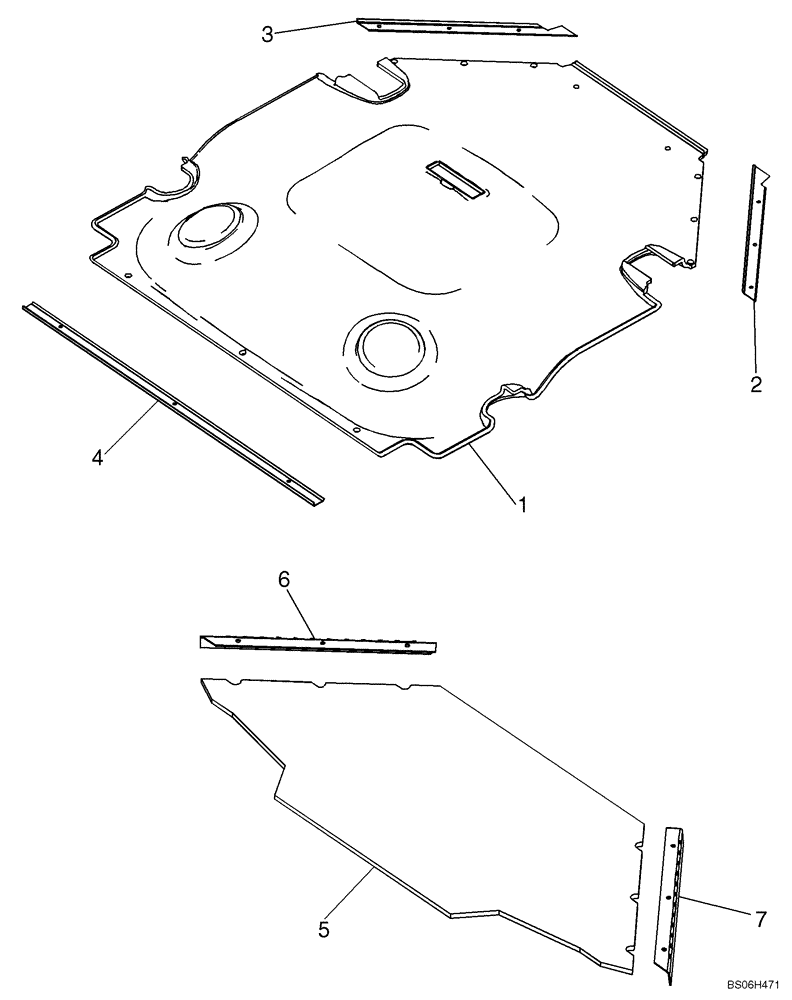

Запчасти Case 1150K (09-30) - CAB - COVERS, INTERIOR ROOF AND FLOOR (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

COMPLETE INFORMATION NOT AVAILABLE AT TIME OF PRINTING

1шт.

1

87372053

ROOF LINING

Headliner

1шт.

2

87530496

CHANNEL

Right-Hand Headliner Retainer

1шт.

3

87530497

CHANNEL

Left-Hand Headliner Retainer

1шт.

4

87530498

CHANNEL

Rear Headliner Retainer

1шт.

5

87372100

FLOOR MAT

1шт.

6

87530499

ANGLE

Left-Hand Floormat Retainer

1шт.

7

87530500

ANGLE

Right-Hand Floormat Retainer

1шт.

8

514-713

BOLT,Hex, M10 x 1.25 x 45mm, Cl 5.6

Not Illustrated

13шт.
