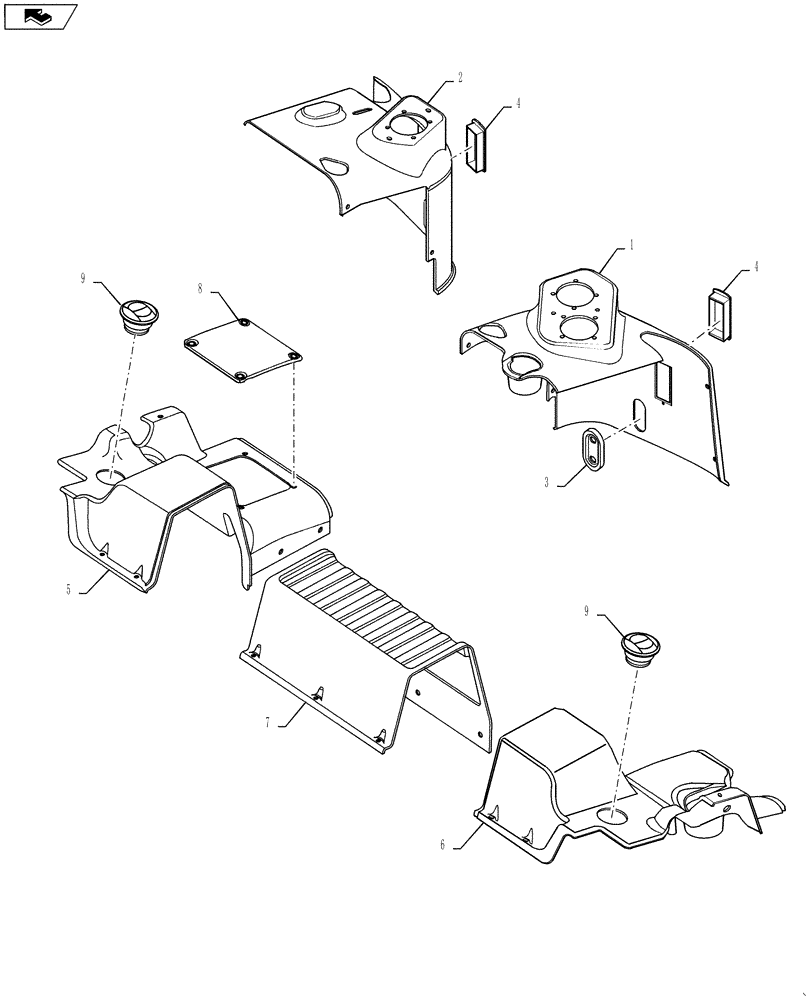

Запчасти Case 1150K (09-28) - CAB - CONSOLES, SIDE AND REAR (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

INFORMATION COMPLETE INFORMATION NOT AVAILABLE AT TIME OF PRINTING

1шт.

1

87527618

CONSOLE

Right-Hand

1шт.

2

87527619

CONSOLE

Left-Hand

1шт.

3

76067249

SHIELD

Seal, Lockout/Parking Brake Levers

2шт.

4

76079036

VENT

Louver

2шт.

5

87372084

COVER

Left-Hand Rear HVAC

1шт.

6

87372085

COVER

Right-Hand Rear HVAC

1шт.

7

87372087

COVER

Center Rear HVAC

1шт.

8

87517936

COVER

Controller

1шт.

9

82027900

DIFFUSER

2шт.
