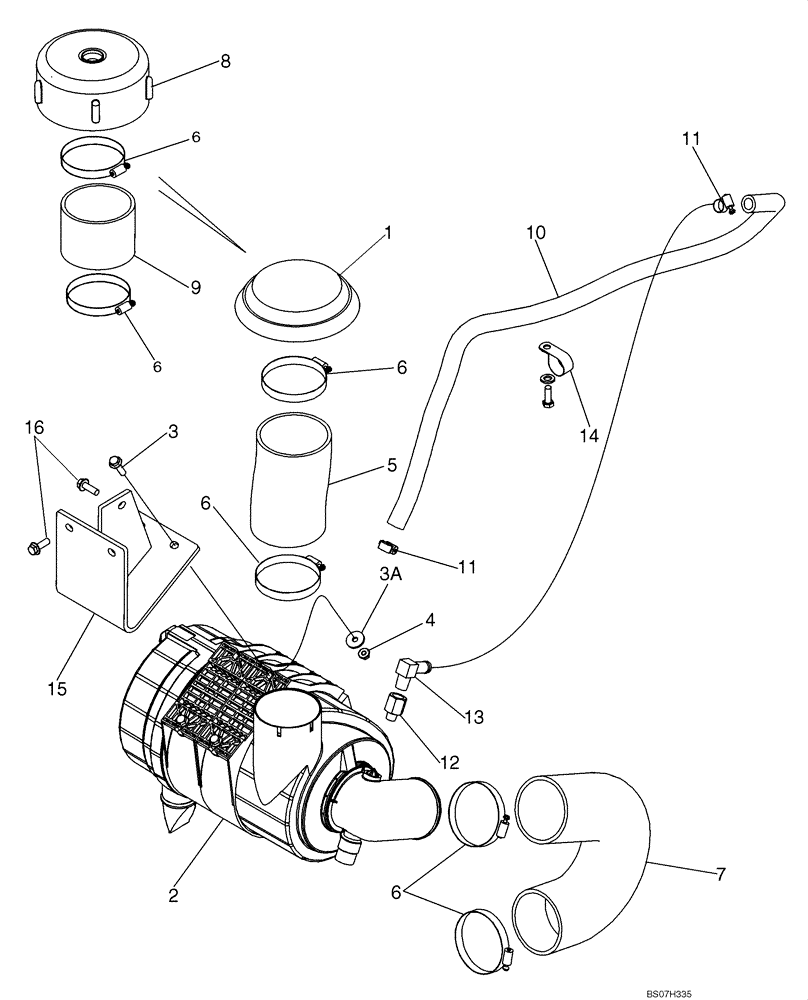

Запчасти Case 1150K (02-05) - AIR CLEANER - MOUNTING (02) - ENGINE

1

L10659

CAP

Includes Clamp; Intake

1шт.

2

87319251

AIR CLEANER

See Figure 02-06

1шт.

3

844-10035

BOLT,Hex, M10 x 35mm, Cl 8.8

4шт.

3a

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

4шт.

4

832-44610

FLANGE NUT,M10 x 1.5, Flg, Cl 10

4шт.

5

87521376

INTAKE AIR HOSE,114.30 mm ID x 160.00 mm, SAE J200

1шт.

6

214-3180

HOSE CLAMP,4-1/4" - 5-1/8", HD Worm

4шт.

7

87543756

INTAKE AIR HOSE,102.00 mm ID x 222.50 mm, SAE J200

Hose

1шт.

8

86988018

AIR INTAKE

Includes Clamp; Component Parts Not Serviced Separately; Turbo Precleaner, If Used

1шт.

9

86988015

ADAPTER

Rubber, Used With Ref 8

1шт.

10

87532177

HOSE,19.05mm ID x 1156.16mm L, SAE 30R2

Crankcase Ventilation Hose

1шт.

11

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

12

217-1008

ADAPTER,3/8" - 18 Male NPTF x 1/2" - 14 Female NPTF

1шт.

13

217-129

ELBOW,90 Degree Elbow, 3/4" Hose Barb x 1/2" Male NPTF

1шт.

14

515-24349

CLAMP,1 3/8", Insul, 7/16" Bolt

Mounts with Muffler Bracket Hardware, See Figure 02-07, Ref 12, 13 for Bolt and Washer

1шт.

15

87325660

BRACKET

1шт.

16

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

3шт.
