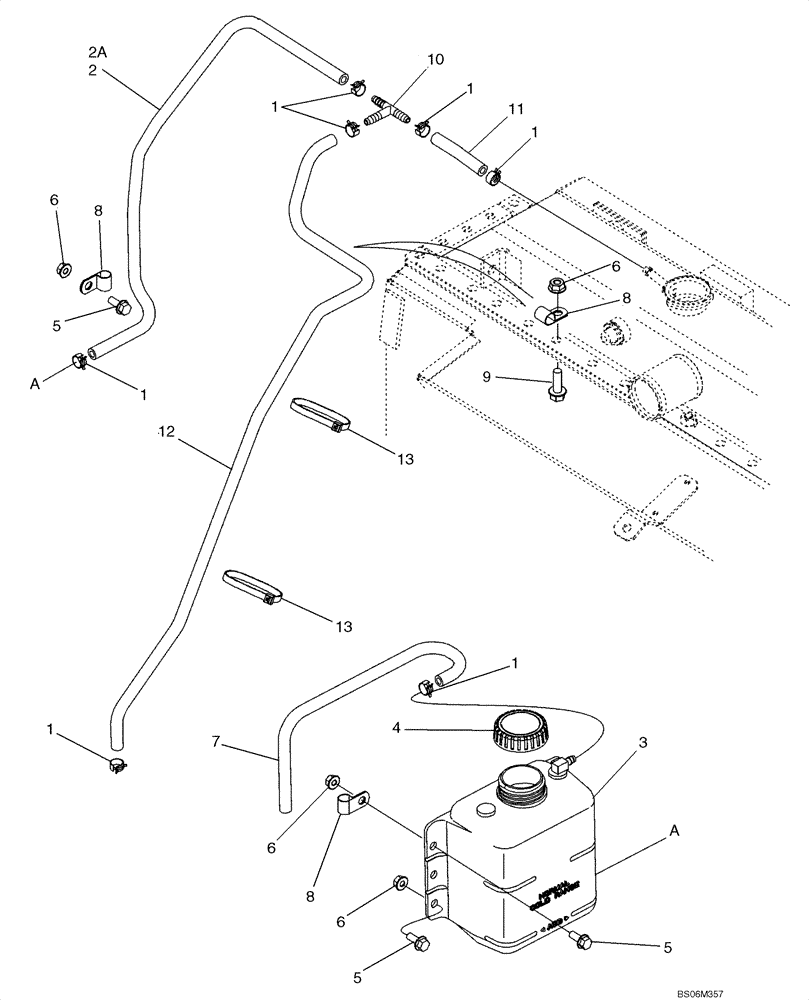

Запчасти Case 1150K (02-04) - COOLANT RECOVERY SYSTEM (02) - ENGINE

1

A171099

HOSE CLAMP,13.2mm - 15.4mm

3-7шт.

2

87398815

HOSE,7.9mm ID x 681mm L, SAE 30R6

681 mm; Cut From L126767; Radiator to Coolant Reservoir; If Used

1шт.

2a

87603627

RADIATOR HOSE,7.9mm ID x 800mm L, SAE 30R6

Coolant Recovery; Radiator to Coolant Reservoir; If Used

1шт.

3

L127093

RESERVOIR

Coolant Recovery

1шт.

4

A184079

CAP

Non-Vented With Tether

1шт.

5

905-8020

BOLT,Hex Flg, M8 x 20mm

4шт.

6

832-4748

FLANGE NUT,M8 x 1.25, Flg, Cl 8

4-5шт.

7

433784A1

HOSE,7.90 mm ID x 445.00 mm, SAE J30 or SAE 20R4 Class D1

Cut From Bulk, Overflow

1шт.

8

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

2-3шт.

9

905-8030

BOLT,Hex Flg, M8 x 30mm

If Used

1шт.

10

1339010C1

FITTING

3/8 Barbed Tee; If Used

1шт.

11

87549204

HOSE,7.9mm ID x 85mm L, SAE 30R6

85 mm Hose

1шт.

12

87398814

HOSE,7.9mm ID x 968mm L, SAE 30R6

968 mm Engine to Overflow Reservoir Hose; If Used

1шт.

13

87406613

CABLE TIE

CABLE STRAP Nylon, 213 mm (8-3/8 in); Releaseable; If Used

2шт.
