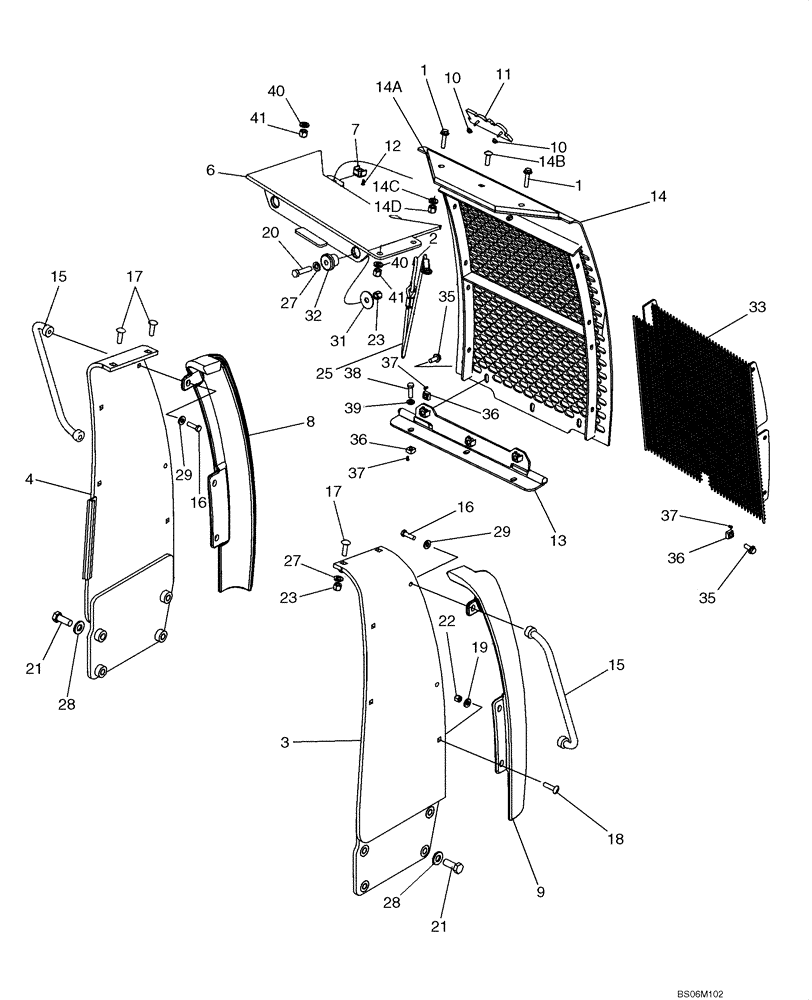

Запчасти Case 1150K (09-13) - GUARD, RADIATOR BRUSH SCREEN - GRILLE, HOOD (09) - CHASSIS/ATTACHMENTS

1

844-12050

BOLT,Hex, M12 x 50mm, Cl 8.8

2шт.

2

87419250

CONNECTING LINK

5/16 in

1шт.

3

87530155

PLATE

Right-Hand

1шт.

4

87530157

PLATE

Left-Hand

1шт.

6

87530638

PLATE

1шт.

7

87447306

SQUARE NUT,M12 x 21mm x 21mm x 11mm H ZND Cl 5A

Cage; M12 x 1.75

2шт.

8

87317282

FRAME

Grille; Left-Hand

1шт.

9

87317283

FRAME

Grille; Right-Hand

1шт.

10

131-431

PUSH-ON NUT,Self, Threading, 1/4"

2шт.

11

186989A1

EMBLEM

Emblem, Case Logo

1шт.

12

336371A1

PIN,4.88mm OD x 14.23mm L

Nut Retainer

2шт.

13

87337849

HINGE

Front Grille

1шт.

87337837

RADIATOR GRILLE

Grille, 674 mm (26-17/32 in) Wide; Incl. Ref 14 - 14D

1шт.

14

87337842

GRILLE

1шт.

14a

87337850

BAR

Grill Top

1шт.

14b

811-12040

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 40mm, Cl 8.8

1шт.

14c

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

14d

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

15

450443A1

HANDLE

2шт.

16

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

17

811-16060

CARRIAGE BOLT,Sht Sq Nk, M16 x 2 x 60mm, Cl 8.8

M16 x 60 ; Replaces 811-12055, M12 x 55; Used On Some Models

4шт.

18

811-12050

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 50mm, Cl 8.8

Lower Mounting Holes

2шт.

19

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

20

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

2шт.

21

627-20050

BOLT,Hex, M20 x 2.5 x 50mm, Cl 10.9, Full Thd

8шт.

22

412126

NUT,M12 x 1.75

Replaces 832-10412

2шт.

23

412126

NUT,M12 x 1.75

Replaces 832-10412

2-6шт.

25

87419297

CABLE

1шт.

27

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2-6шт.

28

896-15020

WASHER,22mm ID x 44mm OD x 5mm Thk

8шт.

29

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

6шт.

31

R40262

WASHER,13.11mm ID x 47.75mm OD x 2.38mm Thk

2шт.

32

R29799

SHOCK ABSORBER

2шт.

33

87372069

SCREEN

Radiator Brush Screen

1шт.

34

87015905

BOLT,Hex, M10 x 25mm, Cl 10.9, Full Thd

6шт.

35

857-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 10.9

3шт.

36

87447306

SQUARE NUT,M12 x 21mm x 21mm x 11mm H ZND Cl 5A

Cage, M12

6шт.

37

336371A1

PIN,4.88mm OD x 14.23mm L

Nut Retainer

6шт.

38

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

3шт.

39

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.

40

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

41

412066

NUT,M16 x 2.0, Cl 8

4шт.
