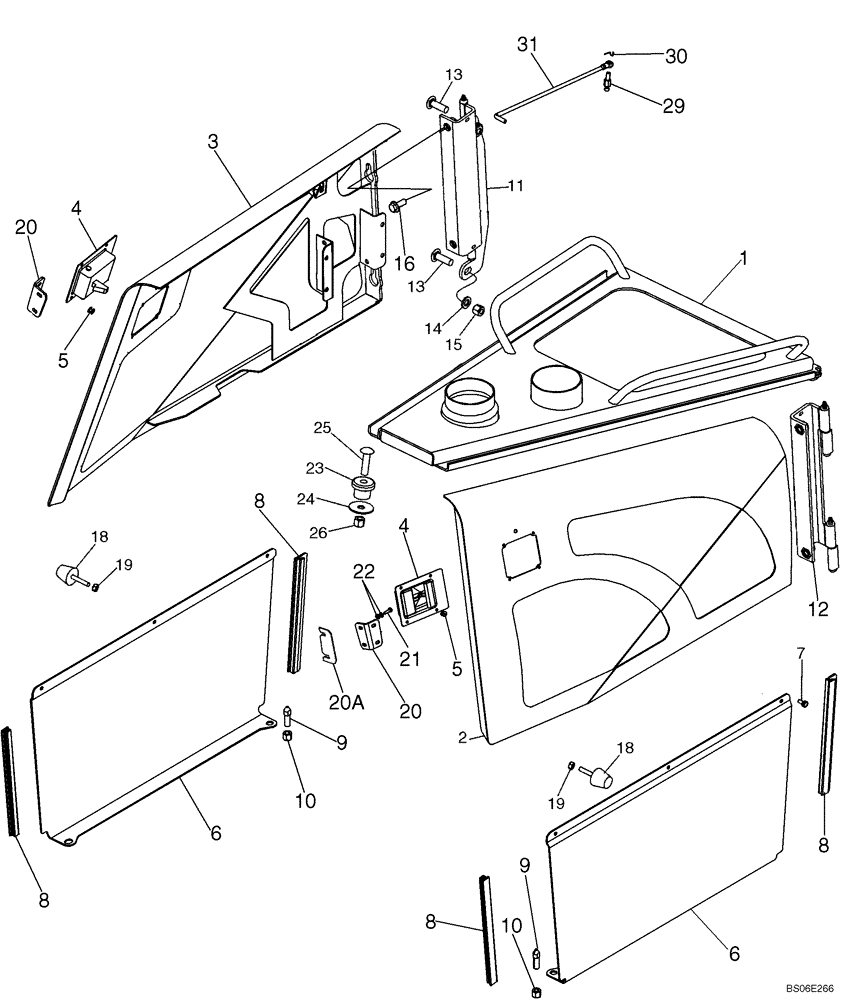

Запчасти Case 1150K (09-12) - HOOD AND SIDE PANELS (09) - CHASSIS/ATTACHMENTS

1

87337882

PLATE

1шт.

2

87546632

DOOR ASSY.

Cover; Right-Hand; Incl. Ref 4, 5;

1шт.

3

87546633

DOOR ASSY.

Cover; Left-Hand; Incl. Ref 4, 5

1шт.

87748289

Door Assy., R.H.; Incl, Ref 4, 5; Europe Models Only; Not Illustrated

1шт.

87748288

Door Assy., L.H.; Incl, Ref 4, 5; Europe Models Only; Not Illustrated

1шт.

4

87353954

LATCH

LOCK; Heavy Duty

1шт.

5

151-567

RIVET,Pop, 1/4" x .625"

4шт.

6

87378082

COVER PLATE

Small Side Panel; Incl. Ref 7

2шт.

7

A161780

BUMPER

3шт.

8

449674A1

RUBBER SEAL,290mm L

4шт.

9

418479A2

PIN

4шт.

10

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

11

431707A3

HINGE

Left-Hand

1шт.

12

431708A3

HINGE

Right-Hand

1шт.

13

811-12035

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 35mm, Cl 8.8

;Replaces 811-12040, M12 X 40; Used On Some Models

4шт.

14

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

15

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

16

87030508

BOLT,Hvy Hex, M12 x 30mm, Full Thd, Cl 10.9

4шт.

18

346104A1

MOUNTING PARTS

Bumper; 75.13 mm (3 in) Long; Upper

2шт.

18

87330642

BUMPER

59.8 mm (2-3/8 in) Long; Lower

2шт.

19

425-115

NUT,5/16"-24, G5

4шт.

20

87623724

STRIKER PLATE

Straight Edge; Replaces 87318436 Angled Edge Plate

2шт.

20a

87547994

PLATE

Plate Used As A Shim; 1.50 mm (1/16 in) thk

4-2шт.

21

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

4шт.

22

896-11006

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

1шт.

23

R29799

SHOCK ABSORBER

2шт.

24

R40262

WASHER,13.11mm ID x 47.75mm OD x 2.38mm Thk

2шт.

25

811-12050

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 50mm, Cl 8.8

2шт.

26

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

29

109498A1

STUD

2шт.

30

F44883

CLIP,DIN 71805 - S10

2шт.

31

87308889

ROD

Door Prop Rod

2шт.
