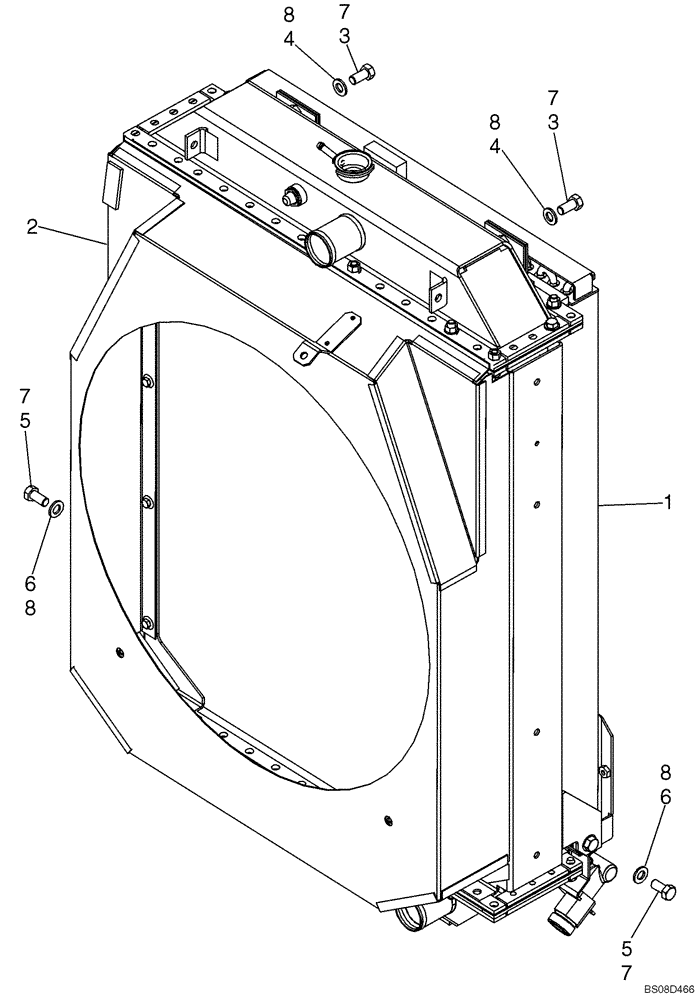

Запчасти Case 1150K (02-03) - RADIATOR/OIL COOLER ASSY (02) - ENGINE

87379707

COOLER ASSY.

Radiator and Oil Cooler Assembly; Incl. Ref 1 - 6

1шт.

1

87491992

OIL COOLER

Assembly; Replaces 87379706; Component Parts Not Serviced Separately

1шт.

2

87378446

RADIATOR

Assembly; Component Parts Not Serviced Separately

1шт.

3

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

No Longer Used, Order 627-12025

2шт.

4

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

No Longer Used, Order 896-11012

2шт.

5

413-814

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5

No Longer Used, Order 627-12025

2шт.

6

495-81271

WASHER,5/8" x 1 1/4" x .134"

No Longer Used, Order 896-11012

2шт.

7

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

4шт.

8

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.
