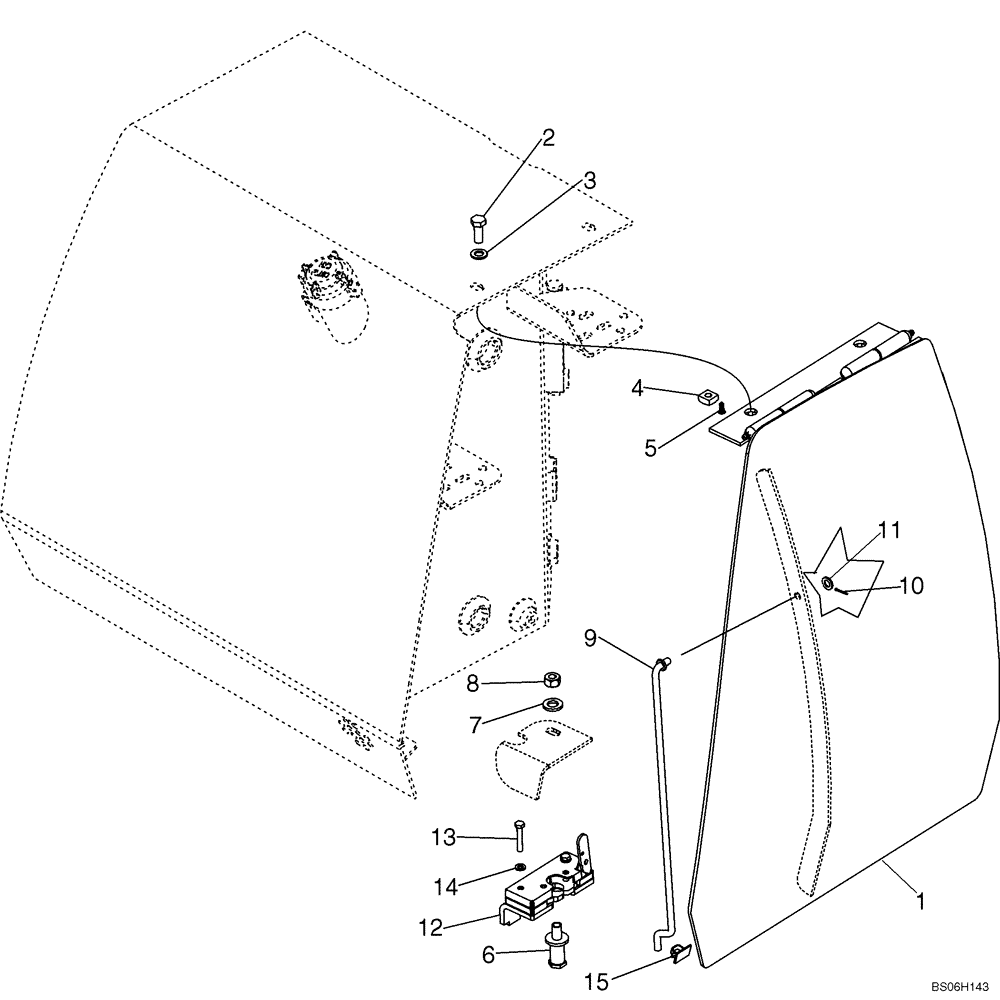

Запчасти Case 1150K (09-10) - DOOR, REAR - TANK, HYDRAULIC OIL (IF USED) (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

INSTRUCTION, DIFFERENCE IN TANKS ARE THE LIFTING BOSSES ON THE TOP OF THE TANKS AND THE NOTCH ON THE TOP; THESE HAVE NONE. FOR OTHER OPTIONS SEE FIGURE 09-10A

1шт.

1

87456874

DOOR

Right-Hand, Rear; Hydraulic Tank

1шт.

2

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

4

122958A1

SQUARE NUT

M10

2шт.

5

336371A1

PIN,4.88mm OD x 14.23mm L

Nut Retainer

2шт.

6

328534A1

BOLT

Striker

1шт.

7

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

8

425-107

NUT,7/16"-14, G5

1шт.

9

440569A1

ROD ASSY.

Hold Open

1шт.

10

432-48

COTTER PIN,1/16" x 1/2"

1шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

12

R55003

LATCH ASSY.

1шт.

13

814-6040

BOLT,Hex, M6 x 1 x 40mm, Cl 8.8

Used with (2) 8232-10406 Non Met M6 Nuts; Replaces 814-6035, Bolt, M6 x 35 ZND; Used on some models

2шт.

832-10406

NUT,M6 x 1, Cl 8

Non-Metallic; Replaces 825-2406 M6 Flange ZNC; Used On Some Models

2шт.

14

495-11028

WASHER,1/4", SAE

(.281 x .625 x .065") ; Replaces 492-11025 1/4 Spring Lock Washer; Used On Some Models

4-2шт.

15

L100659

CLIP

Harness

1шт.
