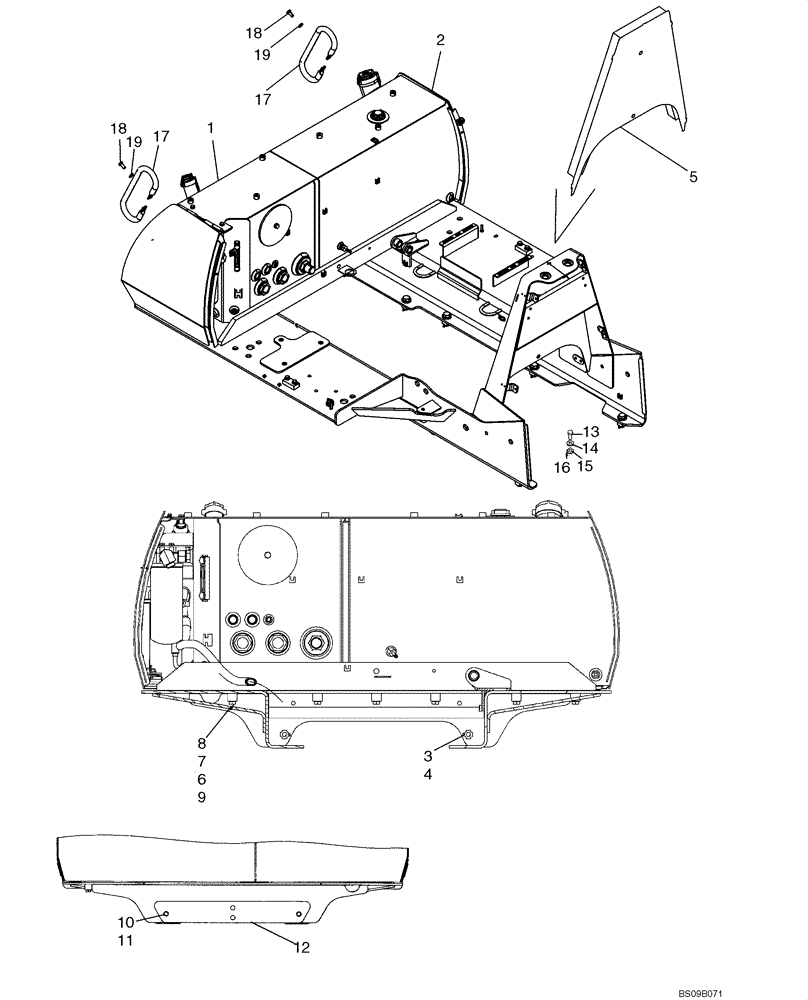

Запчасти Case 1150K (09-09A) - MOUNTING - FUEL TANK/HYDRAULIC RESERVOIR & FRAME, UPPER (IF USED) (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

DIFFERENCE IN TANKS ARE THE LIFTING BOSSES ON THE TOP OF THE TANKS; THESE HAVE THEM. FOR OTHER OPTION SEE FIGURE 09-09

1шт.

NSS

NOT SOLD SEPARAT

Upper Frame, 87589770

1шт.

1

87695125

TANK, HYDRAULIC OIL

See Figure 08-0; If Used

1шт.

2

87695140

FUEL TANK

See Figure 03-01; If Used

1шт.

3

L116823

NUT

2шт.

4

336371A1

PIN,4.88mm OD x 14.23mm L

Nut Retainer

2шт.

5

87368177

INSULATING PANEL

Cowl Seal; Foam, Adhesive Back

1шт.

6

87440363

SPACER,17.5mm ID x 34.9mm OD x 29mm L

Mounting

12шт.

7

345-148

SEALANT, THREAD

Adhesive Thread 1 ml; Loctite 262

12шт.

8

D44330

SHIM,.031" Thk

Washer

12шт.

9

814-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 8.8

Tanks to Upper Frame

12шт.

10

614-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8, Full Thd

Thread to Head

2шт.

11

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

12

87541836

COVER PLATE

Rear

1шт.

REF

INSTRUCTION

THE FOLLOWING HARDWARE IS FOR MOUNTING UPPER FRAME TO LOWER FRAME

1шт.

13

627-20055

BOLT,Hex, M20 x 2.5 x 55mm, Cl 10.9, Full Thd

Thread to Head; Use with Loctite 243

10шт.

14

896-15020

WASHER,22mm ID x 44mm OD x 5mm Thk

22 X 44 X 5MM; Replaces 896-11020 Washer, M20 x 37 x 4; Used On Some Models

10шт.

15

87535798

SQUARE NUT

Square

10шт.

16

336371A1

PIN,4.88mm OD x 14.23mm L

Nut Retainer

10шт.

17

87694407

HANDLE

Grab

2шт.

18

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

4шт.

19

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.
