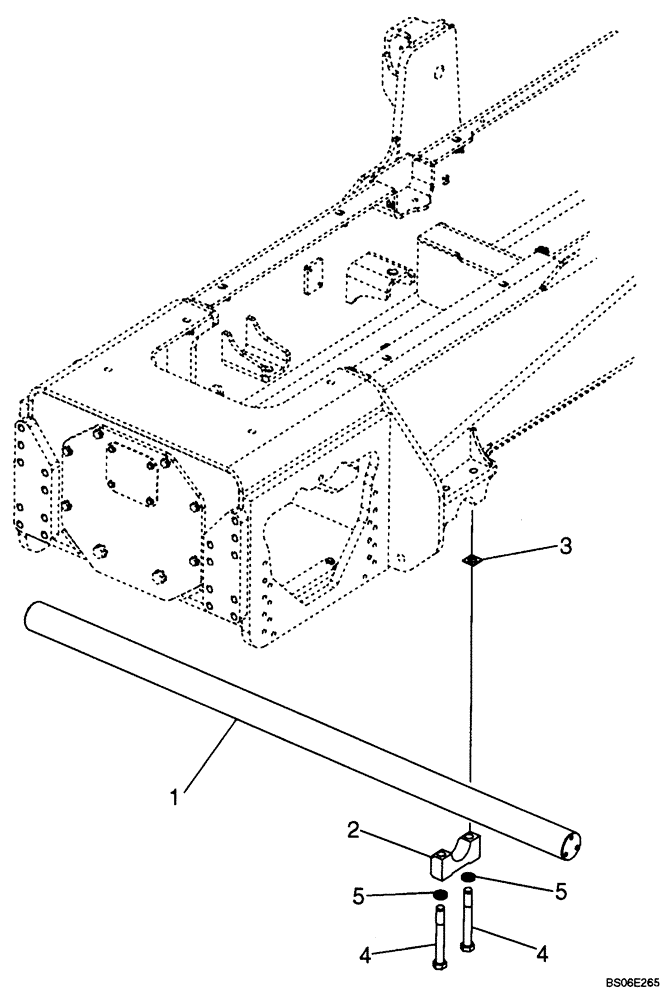

Запчасти Case 1150K (09-08) - SHAFT, PIVOT (09) - CHASSIS/ATTACHMENTS

1

87457232

SHAFT

Pivot Shaft, 2035 mm (80-1/8 in) Long; 70 Gage Narrow Extended Long Track (XLT) Models

1шт.

1

87457233

SHAFT

Pivot Shaft, 2238 mm (88-7/64 in) Long; 78 Gage Wide Track (WT) or Low Ground Pressure (LGP) Models

1шт.

2

R49332

CLAMP

4шт.

3

R26802

SPACER

4шт.

4

87352546

SCREW

1 x 8 Locking Bolt

8шт.

5

496-81001

WASHER,1.03" ID x 1.69" OD x 0.26" Thk

8шт.
