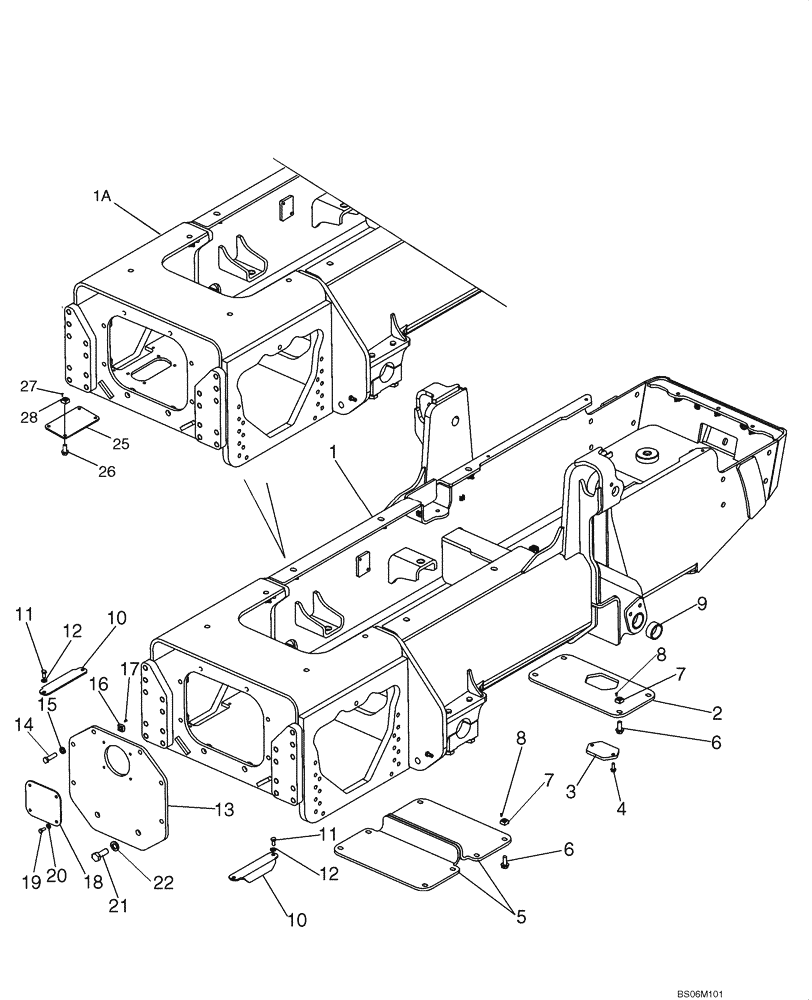

Запчасти Case 1150K (09-07) - FRAME, MAIN AND FINAL DRIVE BOX AND COVERS (09) - CHASSIS/ATTACHMENTS

87369397 Main Frame Assembly, Includes Frame and Covers, Ref 1 - 12; W/O Acces Cover; Not Available As An Assembly, Order Components; If Used

1шт.

87624334

FRAME ASSY

Main Frame Assembly, Includes Frame and Covers, Ref 1A - 12,Ref 25-28; W/ Access Cover; Not Available As An Assy, Order Components; If Used; Replaces 87601329

1шт.

1

87369399

FRAME ASSY

Chassis Frame; Narrow or Wide Gage; Without Acces Cover; If Used

1шт.

1a

NSS

NOT SOLD SEPARAT

Chassis Frame; Narrow or Wide Gage With Access Cover; If Used; Replaces 87601330

1шт.

2

87366295

COVER PLATE

Front Cover

1шт.

3

87366297

COVER

Oil Drain Cover

1шт.

4

857-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 10.9

2шт.

5

87366293

COVER PLATE

Rear Cover

2шт.

6

857-16040

BOLT,Hvy Hex, M16 x 40mm, Cl 10.9

12шт.

7

405737A2

SQUARE NUT,M16 x 26mm x 26mm x 16mm H ZND CL 5A

Square

12шт.

8

336371A1

PIN,4.88mm OD x 14.23mm L

Nut Retainer

12шт.

9

D54068

BUSHING

Use With 1 ml Loctite No. 680

4шт.

10

87365732

COVER

Cover, Lower Center Box

2шт.

11

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

4шт.

12

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

13

84198071

COVER

PLATE, COVER, Center Rear Box Cover; Replaces 87536505

1шт.

14

827-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

6шт.

15

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

6шт.

16

405737A2

SQUARE NUT,M16 x 26mm x 26mm x 16mm H ZND CL 5A

Square

6шт.

17

336371A1

PIN,4.88mm OD x 14.23mm L

Nut Retainer

6шт.

18

87535465

COVER PLATE

1шт.

19

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

20

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

21

627-24060

BOLT,Hex, M24 x 3 x 60mm, Cl 10.9, Full Thd

2шт.

22

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

2шт.

25

87601333

COVER PLATE

Access Cover Plate

1шт.

26

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

4шт.

27

336371A1

PIN,4.88mm OD x 14.23mm L

Nut Retainer

4шт.

28

87447306

SQUARE NUT,M12 x 21mm x 21mm x 11mm H ZND Cl 5A

Square

4шт.
