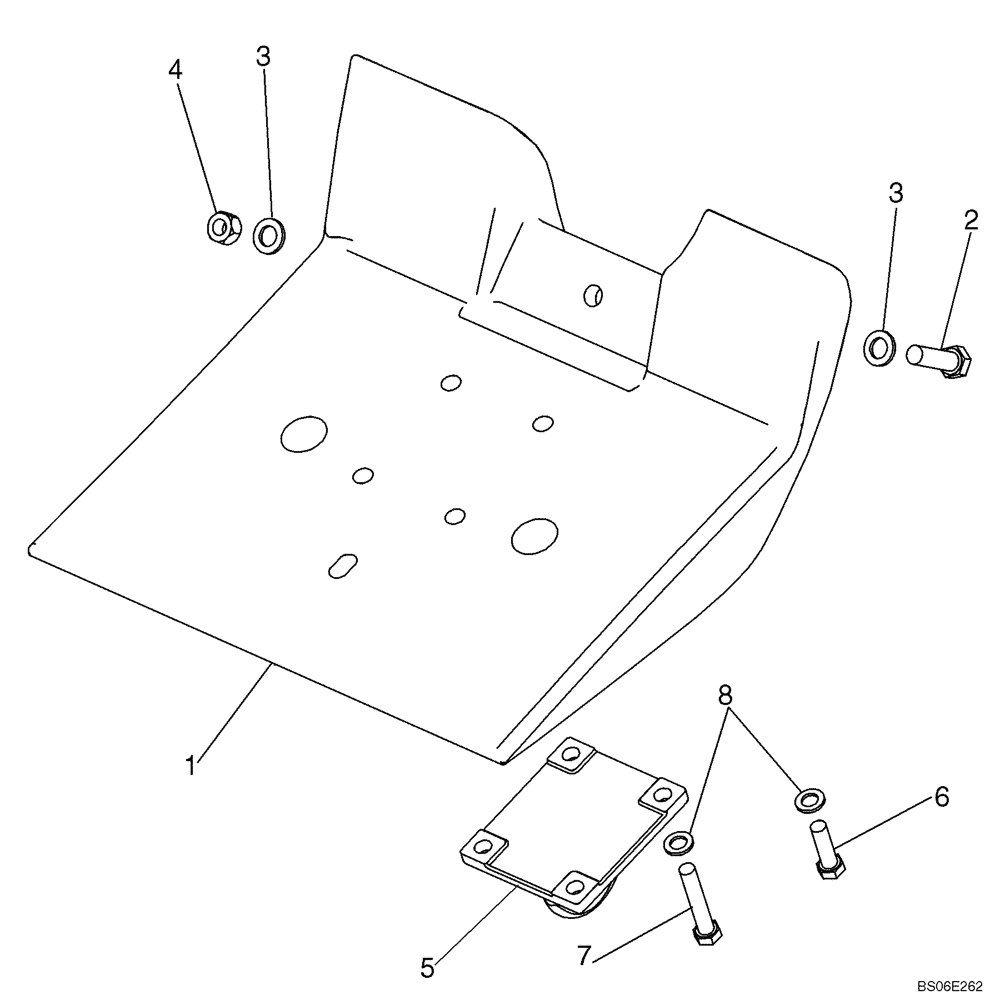

Запчасти Case 1150K (09-05) - COUNTERWEIGHT, FRONT - HOOK, TOWING (09) - CHASSIS/ATTACHMENTS

1

87392598

COUNTERWEIGHT

Front Counterweight

1шт.

2

827-24080

BOLT,Hex, M24 x 3 x 80mm, Cl 10.9

1шт.

3

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

2шт.

4

829-1324

NUT

3/4

1шт.

5

450473A1

HOOK

Pull, Front, If Equipped

1шт.

6

627-20060

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

Thread to Head, Used without 87392598 Counterweight

4шт.

7

827-20110

BOLT,Hex, M20 x 2.5 x 110mm, Cl 10.9

Used With 87392598 Counterweight

4шт.

8

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.
