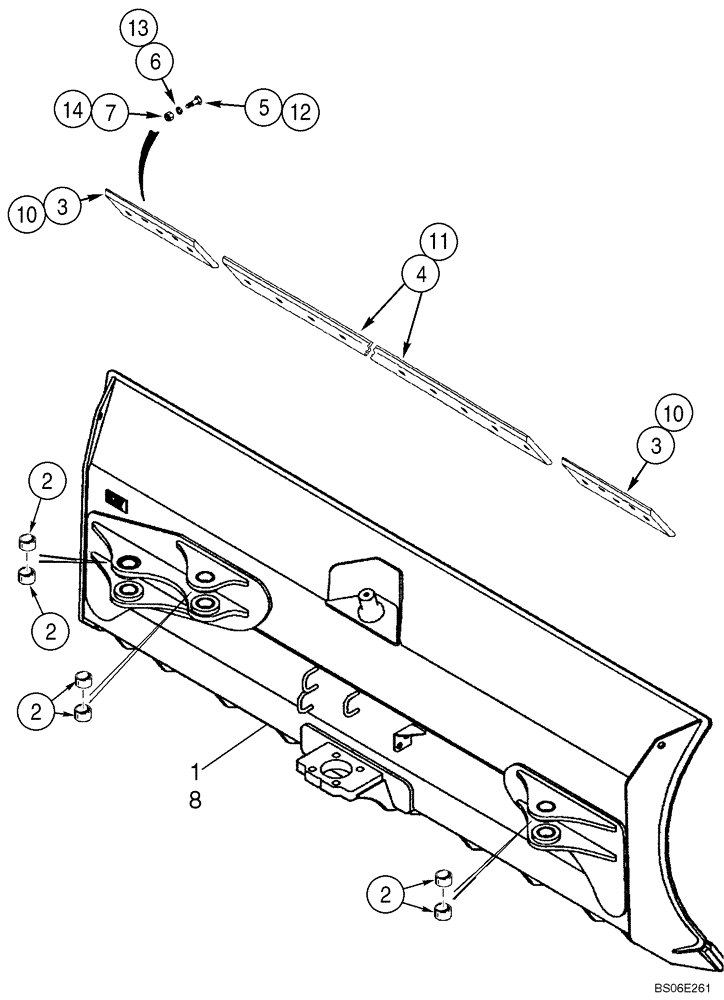

Запчасти Case 1150K (09-03) - BLADE, DOZER - EDGES, CUTTING (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

IF BLADE USES THE STANDARD FLAT CUTTING EDGE (R42490), THEN THESE HEAVY DUTY CURVED CUTTING EDGES WILL WORK

1шт.

3048 MM (120 INCH) DOZER BLADE

1шт.

87313196

DOZER BLADE

ASSEMBLY, 3048 mm (120 inch); Incl. Ref 1 - 7

1шт.

R41911

EDGE, CUTTING

Heavy Duty Curved Cutting Edges; R.H.; If Used

1шт.

1

NSS

NOT SOLD SEPARAT

BLADE

1шт.

R41910

EDGE, CUTTING

Heavy Duty Curved Cutting Edges; L.H.; If Used

1шт.

2

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

2 x 2-1/2 x 1-1/4; Use With Loctite No. 680

6шт.

345-156

LOCTITE

Adhesive, No. 680, 1 ml

6шт.

4

327539A1

EDGE

2158 mm (84-31/32 in), Center, 14 Bolt Holes

1шт.

5

R56474

PLOW BOLT

3/4 x 2-1/2; 8; Dome Head Plow No. 3

24шт.

6

92-11075

LOCK WASHER,3/4"

24шт.

3

R42490

END

442 mm (17-7/16 in), End; 5 Bolt Holes; If Used

2шт.

7

29-1012

NUT,3/4"-10, G8

24шт.

3353 MM (132 INCH) DOZER BLADE

1шт.

87313197

DOZER BLADE

ASSEMBLY, 3353 mm (132 inch); Incl. Ref 8 - 14

1шт.

8

NSS

NOT SOLD SEPARAT

BLADE

1шт.

9

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

2 x 2-1/2 x 1-1/4; Use With Loctite No. 680

6шт.

345-156

LOCTITE

Adhesive, No. 680, 1 ml

6шт.

11

87313382

BIT

2462 mm (96-15/16 in), Center Edge, 16 Bolt Holes

1шт.

12

R56474

PLOW BOLT

3/4 x 2-1/2; 8; Dome Head Plow No. 3

26шт.

10

R42490

END

442 mm (17-7/16 in), End; 5 Bolt Holes; If Used

2шт.

13

92-11075

LOCK WASHER,3/4"

26шт.

14

29-1012

NUT,3/4"-10, G8

26шт.
