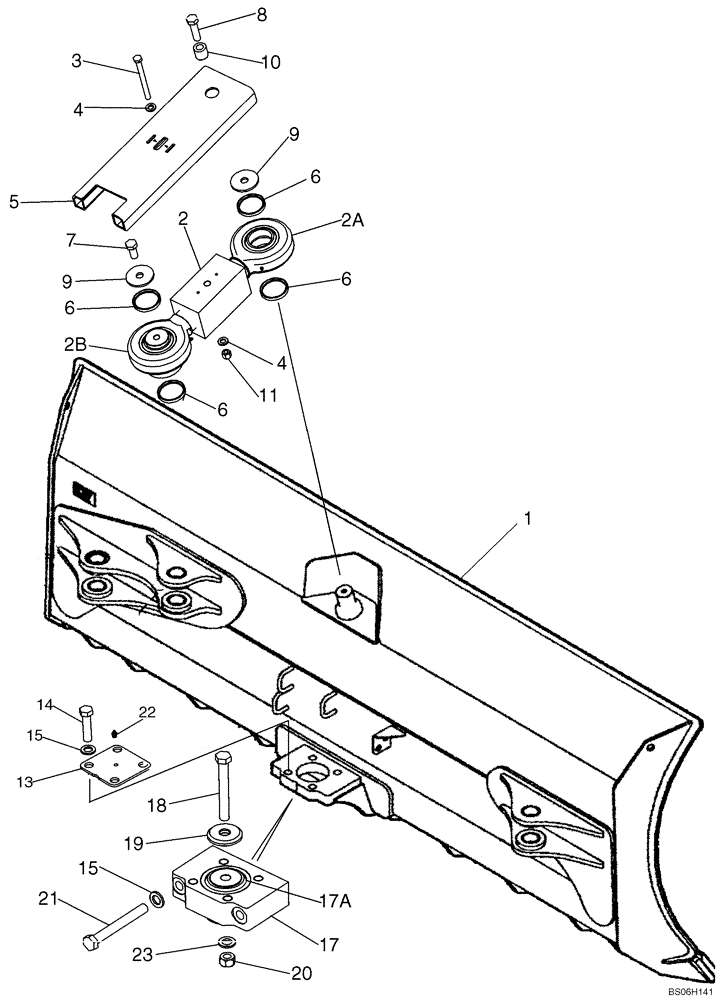

Запчасти Case 1150K (09-02) - DOZER BLADE - MOUNTING (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

See Figure 09-03 For Dozer Blade and Bushings

1шт.

87385596

LINK ASSY.

Adjustable Link Assy; Pitch; Incl. 2 - 2B

1шт.

2

NSS

NOT SOLD SEPARAT

Connector; Component Part Not Serviced, Order 87385596 Link Assy

1шт.

2a

87385598

BALL JOINT HEAD,2-1/4" - 12

Link Bearing, Rod End; Left Hand Thread; Includes (1) 219-87 Grease Fitting, (1) NSS Bearing

1шт.

2b

87385599

EYE,2-1/4" - 12

Link Bearing, Rod End; Right Hand Thread; Includes (1) 219-87 Grease Fitting, (1) NSS Bearing

1шт.

3

827-12130

BOLT,Hex, M12 x 1.75 x 130mm, Cl 10.9

1шт.

4

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

5

87564158

COVER ASSY

Cover Assembly Pitch Link

1шт.

6

87387530

SPACER

4шт.

7

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

Use with Loctite 243

1шт.

8

627-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9, Full Thd

Use with Loctite 243

1шт.

9

87390040

WASHER,17.5mm ID x 67mm OD x 5mm Thk

2шт.

10

418981A1

SPACER

Mounting

1шт.

11

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

13

87314615

COVER PLATE

Use With Loctite 504

1шт.

14

827-24090

BOLT,Hex, M24 x 3 x 90mm, Cl 10.9

Use with Loctite 243

4шт.

15

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

6шт.

17

87331530

BUSHING,82.55mm ID

Bearing; Incl. Ref 17A; Use With Loctite 504

1шт.

17a

87314613

BUSHING

1шт.

18

827-24180

BOLT,Hex, M24 x 3 x 180mm, Cl 10.9

1шт.

19

87314614

WASHER

Hardened Washer

1шт.

20

829-1424

NUT,M24, Cl 10

1шт.

21

827-24200

BOLT,Hex, M24 x 3 x 200mm, Cl 10.9

Use with Loctite 243

2шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Use With Loctite 504

1шт.

23

896-11024

WASHER,26mm ID x 44mm OD x 5mm Thk

1шт.
