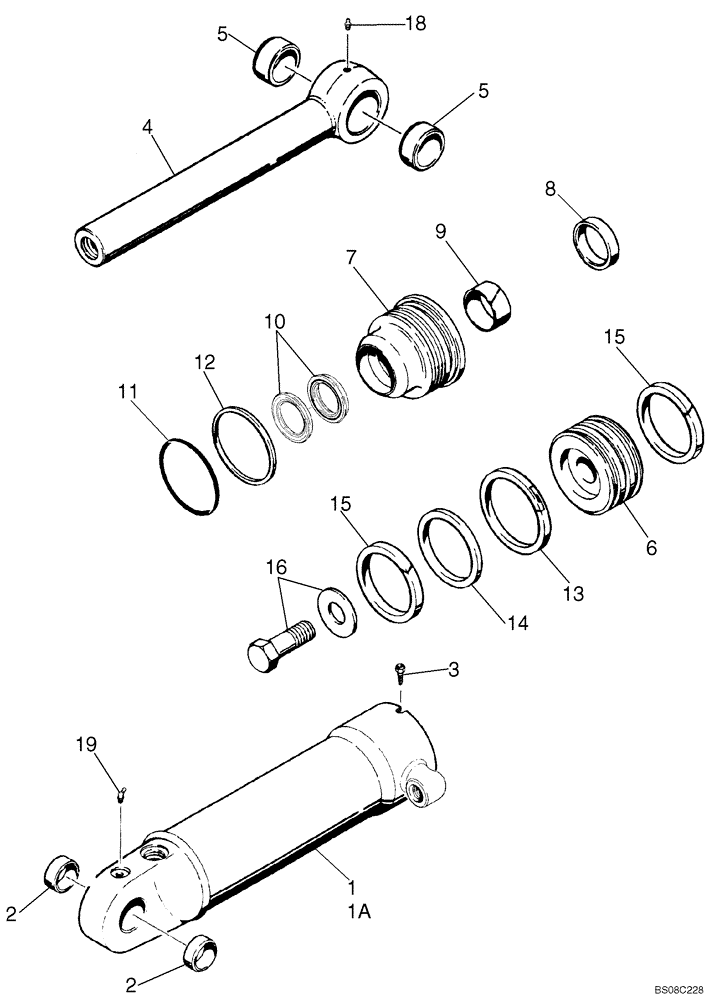

Запчасти Case 1150K (08-25A) - CYLINDER ASSY - RIPPER (101.6 ID X 254 MM) (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
87651090
CYLINDER ASSY.,Double Acting, 50.8mm Rod, 254mm Stroke
CYLINDER ASSY., 101.6 ID x 254 mm strk, Ripper, Right Hand, Incl. 1 - 19; If Used; Marked 87651085
1шт.
87651090R
REMAN-HYD CYLINDER
1150K SERIES 3 CRAWLER DOZER TIER 3 (NA/EU), CYLINDER ASSY., 101.6 ID x 254 mm strk, Ripper, Right Hand (10/06-)
1шт.
87651090C
CORE-HYD CYLINDER
Return Number
1шт.
87651120
CYLINDER ASSY.,Double Acting, 50.8mm Rod, 254mm Stroke
CYLINDER ASSY., 101.6 ID x 254 mm strk, Ripper, Left Hand, Incl. 1A - 19; If Used; Marked 87651119
1шт.
87651120R
REMAN-HYD CYLINDER
1150K SERIES 3 CRAWLER DOZER TIER 3 (NA/EU) (10/06-)
1шт.
87651120C
CORE-HYD CYLINDER
Return Number
1шт.
1
87651092
TUBE,101.47 - 108.74 mm ID x 385.1 mm L
TUBE, Right Hand, Incl. 2
1шт.
1a
87651122
TUBE,101.47 - 108.74 mm ID x 385.1 mm L
TUBE, Left Hand, Incl. 2
1шт.
2
30613
BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L
2шт.
3
86642312
SELF-TAP SCREW,Hex, #8 - 32 x 3/8"
1шт.
4
87651094
PISTON ROD
ROD, 50.8 dia, Incl. 5
1шт.
5
D33047
BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L
2шт.
6
G100438
PISTON,100.89mm Bore, 32.8mm Rod, 50.7mm W
1шт.
7
128135A2
GLAND
Cap Cylinder End
1шт.
87672315
REPAIR KIT
KIT, GASKET, Incl. 8 - 15
1шт.
8
D95144
WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk
1шт.
9
G101533
WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk
1шт.
11
87016952
O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro
1шт.
12
G109299
BACK-UP RING,94.87mm ID x 97.67mm OD x 1.4mm Thk
1шт.
13
G102285
SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk
1шт.
14
G100440
RING,Square, 5.28mm Thk x 88.01mm ID
1шт.
15
G100448
RING,101.6mm OD, Ext
2шт.
16
86982440
SPECIAL BOLT,Hex, 1-1/4' x 2.75
With Washer; 1-1/4 x 2-3/4
1шт.
18
219-1
LUBE NIPPLE,1/8" - 27 NPTF
1шт.
19
219-36
LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF
1шт.
Выбрано товаров: 26
