Запчасти Case 1150K (08-24) - CYLINDER ASSY - ANGLE (08) - HYDRAULICS

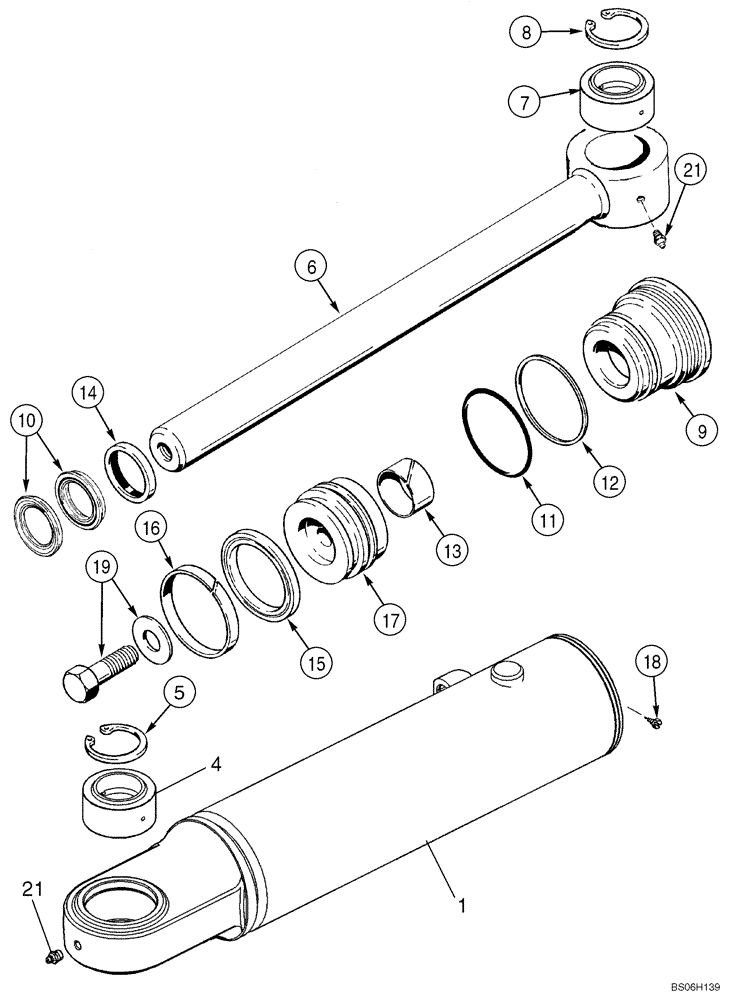

Схема запчастей Case 1150K - (08-24) - CYLINDER ASSY - ANGLE (08) - HYDRAULICS
17
1
13
18
11
16
9
19
21
10
8
15
21
12
14
7
5
4
6

Артикул

Название

Примечание

Количество

87340255

CYLINDER ASSY.,Double Acting, 63.5mm Rod, 381mm Stroke

127 ID x 381 mm Stroke; Angle; Incl. Ref 1 - 21

2шт.

87340255R

REMAN-HYD CYLINDER

1150K SERIES 3 CRAWLER DOZER TIER 3 (NA/EU) (10/06-)

2шт.

87340255C

CORE-HYD CYLINDER

Return Number

2шт.

1

87340244

TUBE ASSY.

Incl. Ref 4, 5

1шт.

4

86000739

SPHERICAL BEARING,50.8mm ID x 80.96mm OD x 44.45mm W

Bushing/Bearing

1шт.

5

100-21315

SNAP RING,3.156", Int, #315

2шт.

6

G110703

PISTON ROD

63.5 mm (2-1/2 inch) dia; Incl. Ref 7, 8

1шт.

7

86000739

SPHERICAL BEARING,50.8mm ID x 80.96mm OD x 44.45mm W

Bushing/Bearing

1шт.

8

100-21315

SNAP RING,3.156", Int, #315

2шт.

9

1543069C1

PACKING GLAND

Gland

1шт.

87342178

SEAL KIT

Incl. Ref 10 - 16

1шт.

10

NSS

NOT SOLD SEPARAT

Kit, Seal, Rod and Buffer; Order 87342178 Seal Kit

1шт.

11

238-5247

O-RING,0.139" Thk x 4.609" ID, -247, Cl 5, 75 Duro

1шт.

12

G107970

BACK-UP RING,120.27mm ID x 127.13mm OD x 1.4mm Thk

1шт.

13

G102427

BUSHING,63.5mm ID x 60.22mm OD x 37.85mm L

Bearing

1шт.

14

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

Rod

1шт.

15

G110269

SEAL,112.5mm ID x 126.88mm OD x 7.29mm Thk

Piston

1шт.

16

G102091

SEAL,128.52mm OD x 6.96mm Thk

1шт.

17

87340246

PISTON ROD

1шт.

18

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

19

86982441

SPECIAL BOLT,Hex, 12, 1 1/4 x 3"

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

Выбрано товаров: 22
