Запчасти Case 1150K (08-23) - CYLINDER ASSY - TILT (08) - HYDRAULICS

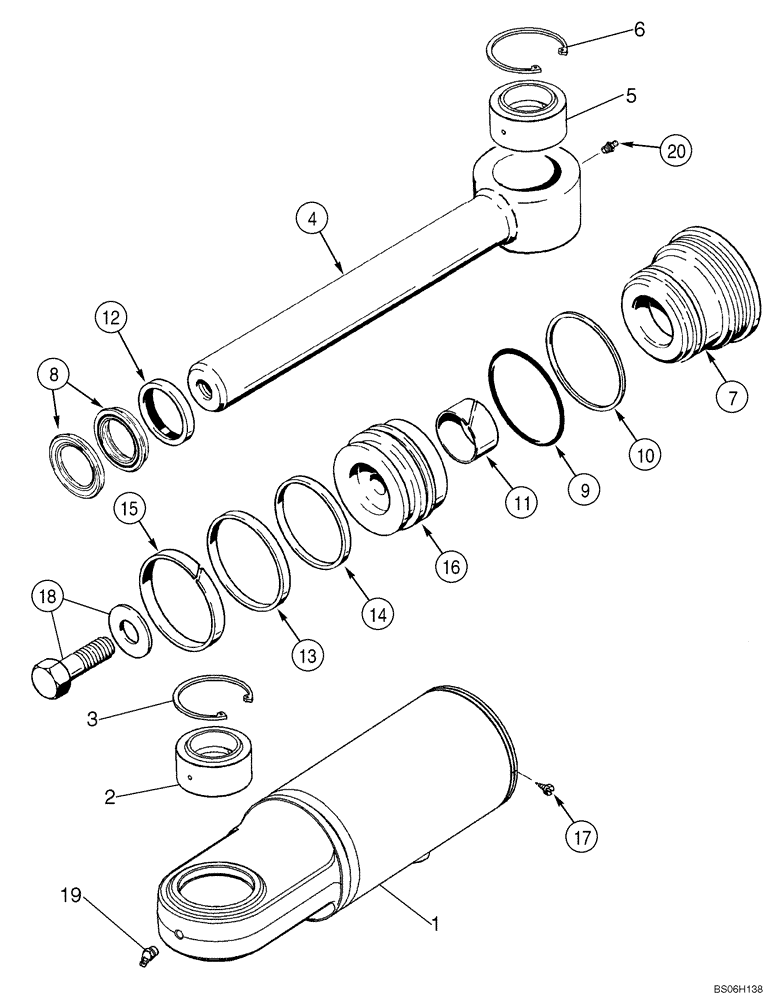

Схема запчастей Case 1150K - (08-23) - CYLINDER ASSY - TILT (08) - HYDRAULICS
9
12
18
19
3
13
1
16
17
15
11
7
2
5
8
6
10
14
4
20

Артикул

Название

Примечание

Количество

87377322

CYLINDER ASSY.,Double Acting, 63.5mm Rod, 119.9mm Stroke

127 ID x 119.9 mm Stroke; Tilt; Incl. Ref 1 - 20

1шт.

87377322R

REMAN-HYD CYLINDER

1150K SERIES 3 CRAWLER DOZER TIER 3 (NA/EU), Cylinder Assy, 127 ID x 119.9 mm Stroke; Tilt (10/06-)

1шт.

87377322C

CORE-HYD CYLINDER

Return Number

1шт.

1

G109824

TUBE,4.995" ID x 16.14" L

TUBE; Incl. Ref 2, 3

1шт.

2

86000739

SPHERICAL BEARING,50.8mm ID x 80.96mm OD x 44.45mm W

Bushing/Bearing

1шт.

3

100-21315

SNAP RING,3.156", Int, #315

2шт.

4

1346161C1

PISTON ROD

63.5 mm (2-1/2 inch) dia; Incl. Ref 5, 6

1шт.

5

86000739

SPHERICAL BEARING,50.8mm ID x 80.96mm OD x 44.45mm W

Bushing/Bearing

1шт.

6

100-21315

SNAP RING,3.156", Int, #315

2шт.

7

1543069C1

PACKING GLAND

GLAND

1шт.

1542915C2

SEAL KIT

Incl. Ref 8 - 15

1шт.

8

NSS

NOT SOLD SEPARAT

Kit, Seal; Order 1542915C2 Seal Kit

1шт.

9

238-5247

O-RING,0.139" Thk x 4.609" ID, -247, Cl 5, 75 Duro

1шт.

10

G107970

BACK-UP RING,120.27mm ID x 127.13mm OD x 1.4mm Thk

1шт.

11

G102427

BUSHING,63.5mm ID x 60.22mm OD x 37.85mm L

Bearing

1шт.

12

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

Rod

1шт.

13

1986753C1

SEAL,Locking, 123.8mm ID x 128.52mm OD x 6.96mm Thk

1шт.

14

G102092

RING,Square, 5.28mm Thk x 113.92mm ID

1шт.

15

G102090

RING,127mm OD, Ext

Wear

1шт.

16

G110701

JACK PISTON

Piston

1шт.

17

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

18

86982441

SPECIAL BOLT,Hex, 12, 1 1/4 x 3"

1шт.

19

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

Выбрано товаров: 24
