Запчасти Case 1150K (08-21) - VALVE ASSY, FOUR SPOOL - SECTION, RIPPER (08) - HYDRAULICS

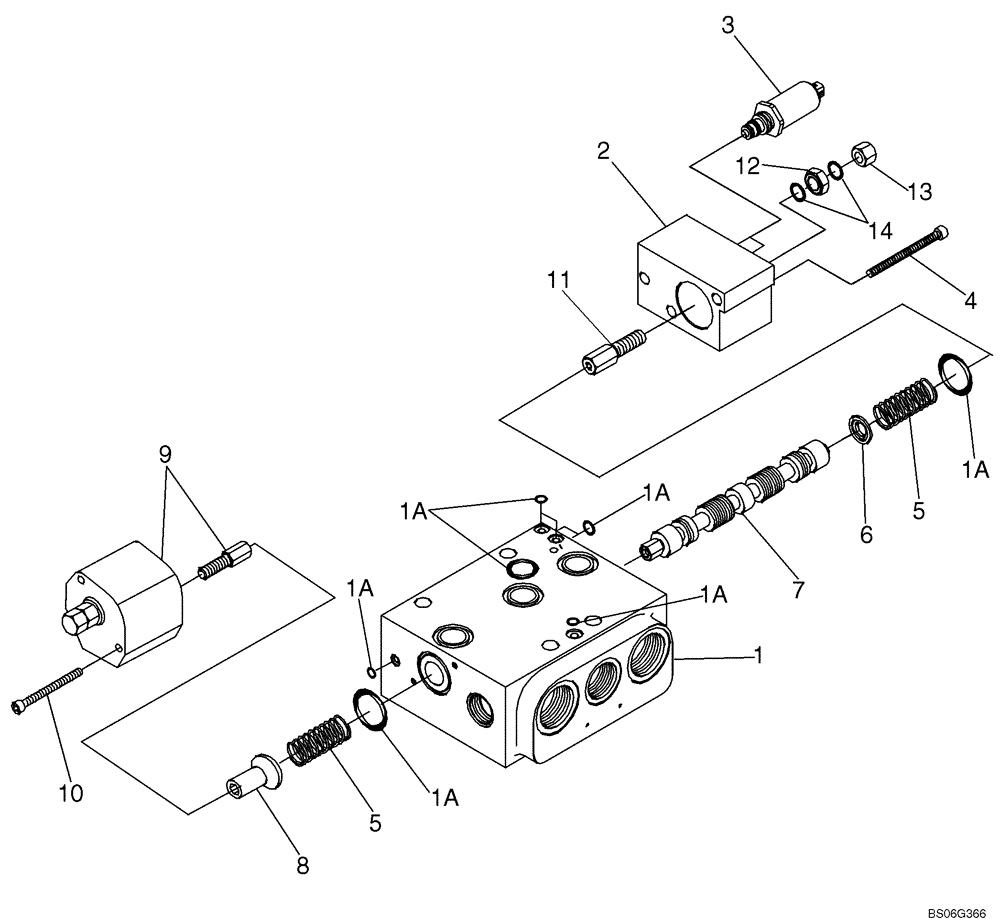

Схема запчастей Case 1150K - (08-21) - VALVE ASSY, FOUR SPOOL - SECTION, RIPPER (08) - HYDRAULICS
13
1a
8
2
7
12
6
10
1a
11
1a
3
1
9
4
5
1a
1a
1a
5
14

Артикул

Название

Примечание

Количество

87604364

CONTROL VALVE

Four Spool Control Valve, W/O Plug At Spool Loading Valve; Incl. Ref 1 - 27 ; Replaces 87341634, W/ Screw Plug At Spool Loading Valve; Also See Fig 08-18, 08-19, 08-20

1шт.

87516637

HYD VALVE SECTION

Ripper Section Assembly; Complete, Incl. Ref 1 - 14; Includes Housing, Spool, and Valves; Used With 8604566 Seal Kit

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING, Section, Ripper; Also See Figure 08-19

1шт.

1a

8604566

SEAL KIT

Seal; Includes (12) O-Rings

1шт.

2

87516633

COVER

Ripper Cover

1шт.

3

87516634

VALVE PRESSURE RELIE

Pressure Reducing Valve, FTDRE2; For Service Of External Seals, Order 87516646 Seal Kit; Order 87516645 For Filter

2шт.

87516645

FILTER

Service

2шт.

87516646

SEAL KIT

Seal Kit; Includes (3) O-Rings; Also Includes (2) Backup Rings Not Used In This Application

2шт.

4

864-5050

HEX SOC SCREW,M5 x 50mm, Cl 8.8

3шт.

5

87516617

SPRING

2шт.

6

8604582

RETAINER

1шт.

7

87567798

SPOOL

Ripper

1шт.

8

87311984

RETAINER

RETAINER

1шт.

9

87516586

COVER

Cover, Pilot, Ripper

1шт.

10

864-5055

HEX SOC SCREW,M5 x 55mm, Cl 8.8

M5 x 55 Socket Head Screw

2шт.

11

NSS

NOT SOLD SEPARAT

Screw

1шт.

12

NSS

NOT SOLD SEPARAT

Nut, Lock

1шт.

13

NSS

NOT SOLD SEPARAT

Nut, Hex

1шт.

14

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

Выбрано товаров: 19
