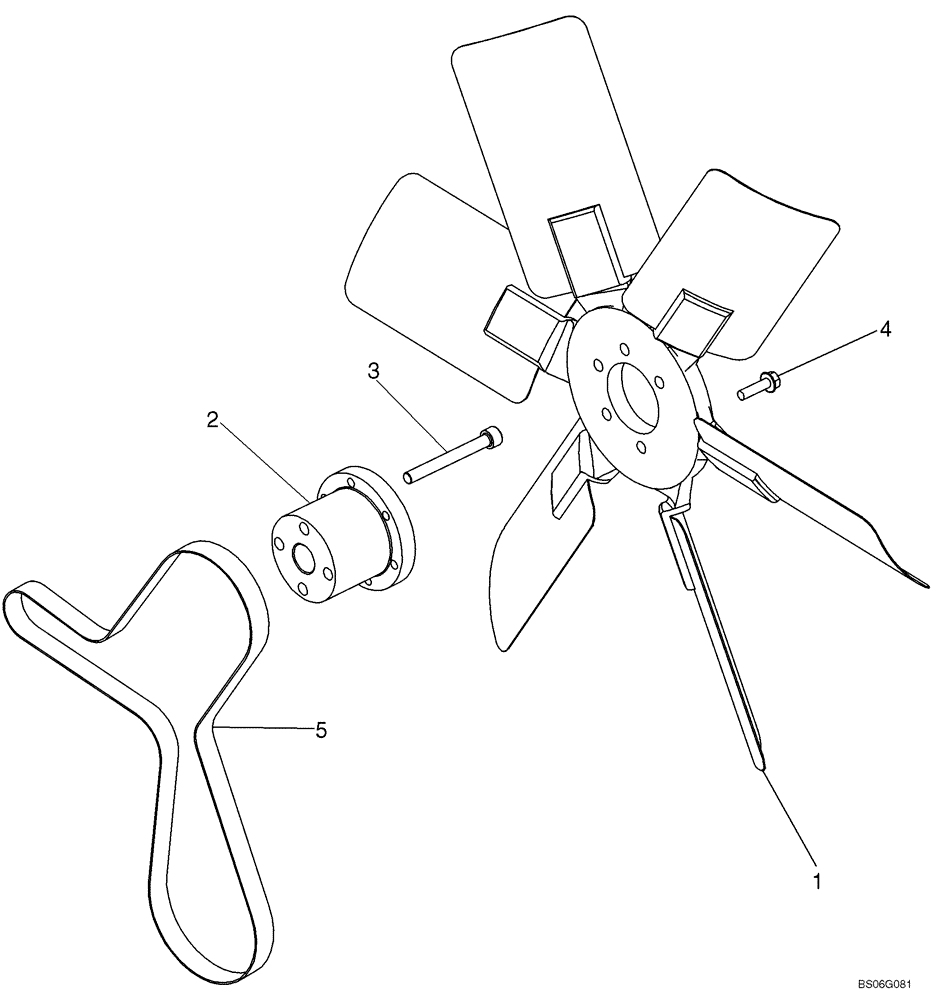

Запчасти Case 1150K (02-01) - FAN - FAN BELT (02) - ENGINE

1

A173018

FAN

Pusher

1шт.

2

87363663

SPACER

1шт.

3

864-10090

HEX SOC SCREW,M10 x 90mm, Cl 8.8

Spacer to Engine; Use with 1 ml Adhesive Thread Loctite No. 243

4шт.

4

854-8030

BOLT,Hvy Hex, M8 x 30mm, Cl 10.9

Fan to Spacer; Use With 1 ml Adhesive Thread Loctite No. 243

6шт.

5

87561763

V-BELT,3.56 mm W x 1778.00 mm L, 8 Ribs

Engine Fan and Alternator Belt, Main

1шт.
