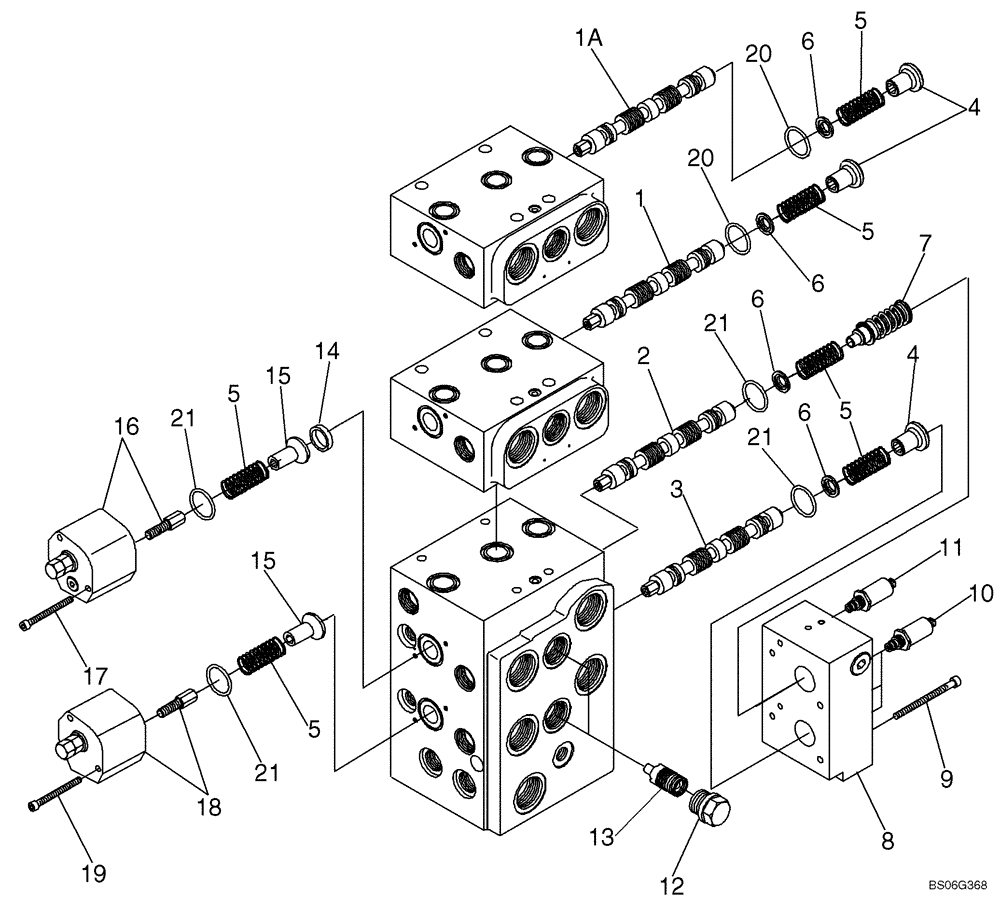

Запчасти Case 1150K (08-19) - VALVE ASSY, FOUR SPOOL - SPOOLS (08) - HYDRAULICS

87604364

CONTROL VALVE

Four Spool Control Valve, W/O Plug At Spool Loading Valve; Incl. Ref 1 - 27 ; Replaces 87341634, W/ Screw Plug At Spool Loading Valve; Also See Fig 08-18, 08-20, 08-21

1шт.

1

87567787

SPOOL

Angle Spool; Also See Figure 08-20

1шт.

1a

87567798

SPOOL

Ripper Spool; Also See Figure 08-21

1шт.

2

87567786

SPOOL

Lift Spool

1шт.

3

87567785

SPOOL

Tilt Spool

1шт.

4

87516620

RETAINER

3шт.

5

87516617

SPRING

6шт.

6

8604582

RETAINER

4шт.

7

87311985

SPRING

1шт.

8

87516632

COVER

Block Cover

1шт.

9

87518268

SCREW,M5 x 80mm, Gr 8.8

M5 x 80 Screw

5шт.

10

87516634

VALVE PRESSURE RELIE

Pressure Reducing Valve, FTDRE2; For Service Of External Seals, Order 87516646 Seal Kit; Order 87516645 For Filter

3шт.

87516645

FILTER

Service

3шт.

87516646

SEAL KIT

Seal Kit; Includes (3) O-Rings; Also Includes (2) Backup Rings Not Used In This Application

3шт.

11

87516635

CARTRIDGE

Pressure Reducing, FTDRE4; For Service Of External Seals, Order 87516646 Seal Kit; Order 87516645 For Filter

1шт.

87516645

FILTER

Service

1шт.

87516646

SEAL KIT

Seal Kit; Includes (3) O-Rings; Also Includes (2) Backup Rings Not Used In This Application

1шт.

12

87516612

PLUG

M22 x 1.5 Plug

2шт.

13

87516611

SPOOL

Compensator Spool

2шт.

14

87311986

RING

1шт.

15

87311984

RETAINER

RETAINER

2шт.

16

87516587

COVER

Cover, Pilot, Lift

1шт.

17

864-5060

HEX SOC SCREW,M5 x 60mm, Cl 8.8

2шт.

18

87516585

COVER

Cover, Pilot, Tilt

1шт.

19

864-5055

HEX SOC SCREW,M5 x 55mm, Cl 8.8

M5 x 55 Socket Head Screw

2шт.

20

8604566

SEAL KIT

Seal; Includes (12) O-Rings For Angle or Ripper Section; Also See Figure 08-20 For Angle Section or 08-21 For Ripper Section

1шт.

21

87516638

SEAL KIT

Valve Block Seal Kit; Includes (18) O-Rings; See Figure 08-18 For Additional O-Ring Locations

1шт.
